| Categories | Rock Wool Insulation Pins |
|---|---|
| Brand Name: | XY-AIC01 |
| Model Number: | XY-5038 |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | 5000 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300000 PCS PER MONTH |
| Delivery Time: | Within 12 WORK DAYS |

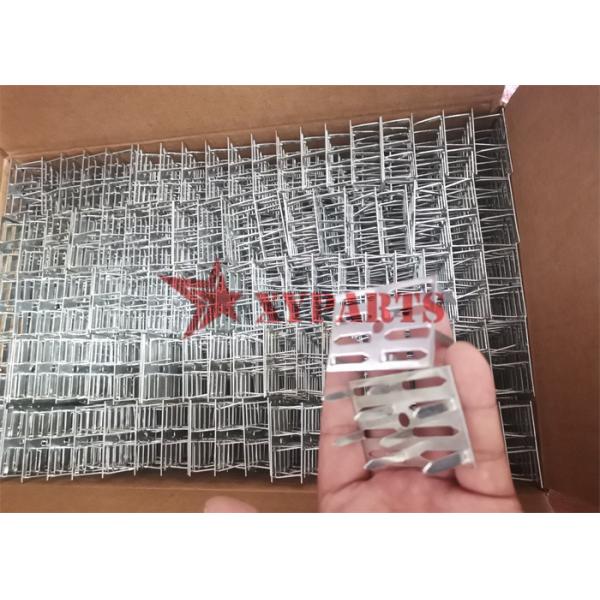

| Packaging Details: | 500 or 1000 PCS PER CARTON. |
| Name: | acoustic impaling clip |
| Material: | Mild steel or stainless steel |
| Plate Thickness: | 1mm Thick |
| Clip size: | 50*38mm |
| Height: | 20mm height in common |
| Technical: | STAMPED /PERFORATED |
| Finished: | Zinc coating |
| Application: | rock wool fixed |
| MOQ: | 3000PCS |
| Sample: | Available |

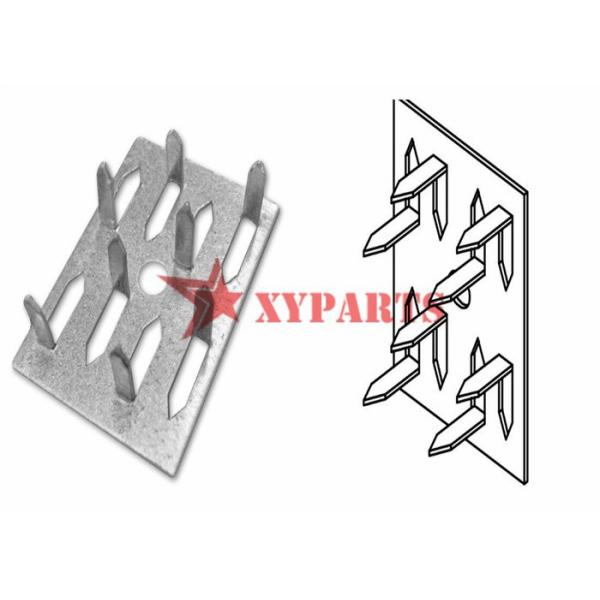

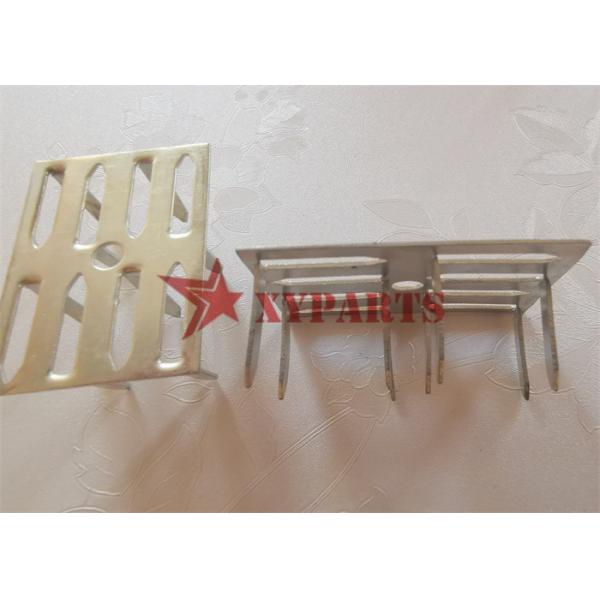

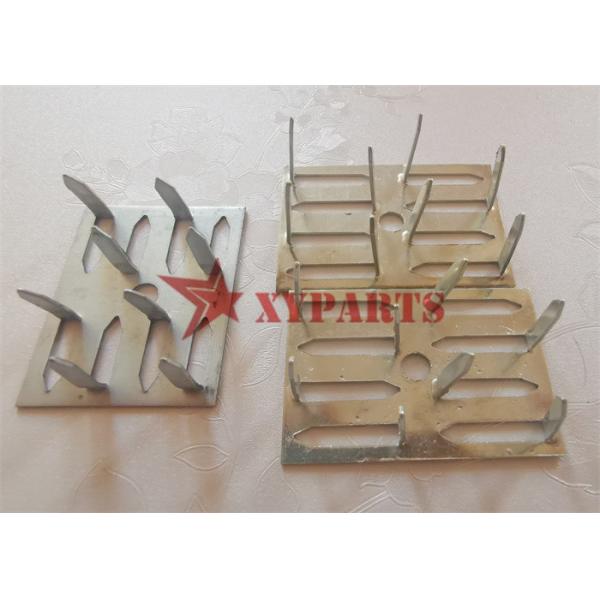

Details of the Acoustic Impaling Clips

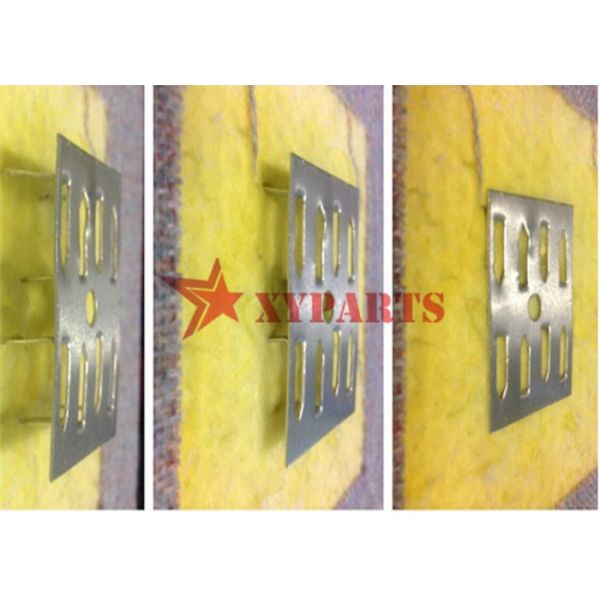

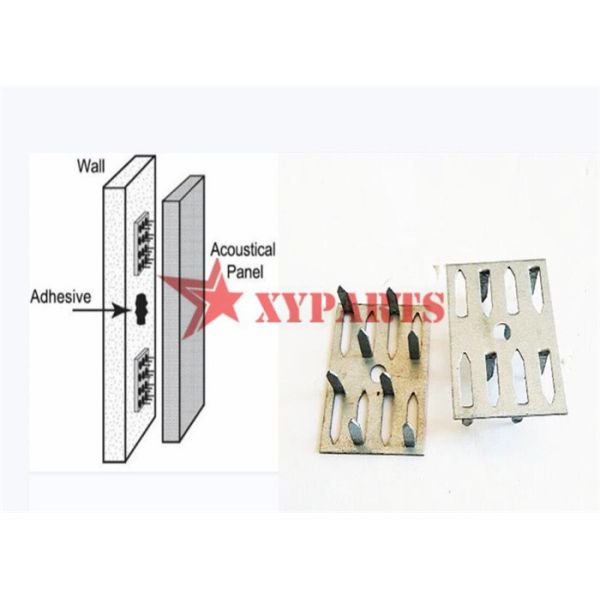

Impaling clips are a quick and easy way to install fiberglass or mineral wool boards to a wall. Each clip measures 2-1/8" x 1-1/2" and has eight spikes to impale the back of a panel to hold it in place. Impaling spikes on the clip are about 3/4" deep. Construction adhesive, such as Liquid Nails, is recommended to ensure a secure panel installation when using impaling clips.
4 to 6 clips are recommended per 24"x48" piece of acoustic insulation. For panel applications requiring an air gap, wood spacer blocks can be installed between the impaling clips and the drywall to keep the panel spaced off the wall.
 | ||
| Name | Impaling Clips | |
| Matterial | Mild steel | Stainless steel |
| Finished of the clips | Galvanized steel | Polished |
| Plate thickness | 1mm in common | |
| Clip size | 50mm length *38mm width | |
| Height | 20mm in common | Customized height |
| Fixing parts | right metal screws to fixing the board more firm. | |
| The clip size also could be customized according the the requirements . | ||
How is Supplier's Responsiveness to Customer Service Inquiries?
timely and accurate,and The sales department and production
department perfect record work at the same time
how to ensure the quality?
our factory meet ISO9001-2015 system certification, and we will
supply offical material test report and product test report by
SGS/BV
How to ensure the delivery in time?
firstly we have stock for common sizes.
second, we have mould making-term,help sepcial order to save time
for making mould.
third, we own Advanced production equipment and experienced
workers.
four, Long-term cooperation with courier companies and sea and air
freight forwarders
do you accept small order?
yes, we accept small order, for insulation pins, retail order is
avable MOQ3000pcs. if need open new mould , MOQ is 20000pcs.
for weave wire mesh, MOQ30square meters
is it avable for free sample?
common size is free. it is no free for specifical size
can you supply design service?
yes, we can supply CAD drawing
can you supply installation guide?
yes, installation guide is avable for every order.
|
