| Categories | Excavator Travel Gearbox |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | E312B 312B E313B |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | 500.00-4000.00USD |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 500 pcs / month |
| Delivery Time: | 1-3days |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |

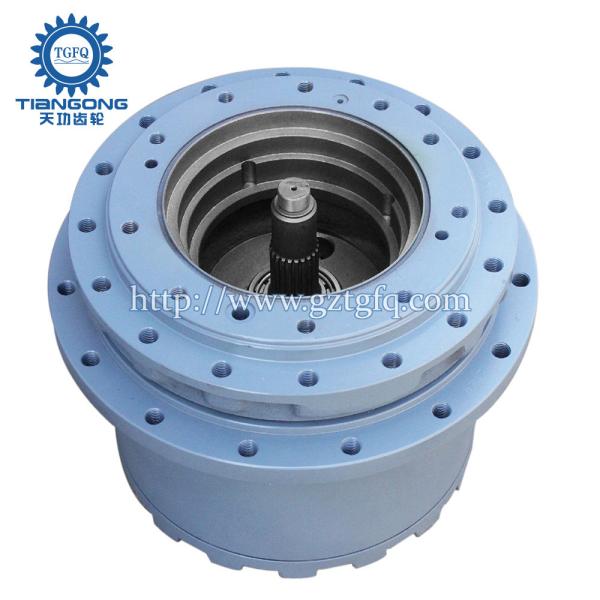

| Product Name: | 312B Excavator Travel Gearbox |
| Part Number: | 114-1466 / 114-1437 |
| Model: | E312B 312B E313B |
| Weight: | 85KG |
| Packege: | 43*43*45CM |
| Holes: | 16/15 |
| Company Info. |
| Guangzhou Tiangong Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product parameter:
| Product name: | 312B Travel Gearbox |
| Place of Origin: | China(mainland) |
| Model: | E312B 312B E313B |
| Part Number: | 114-1466 / 114-1437 |
| MOQ: | 1 PCS |
| Shaft: | 15/22T |
| Delivery time: | Within 1-3 days after receiving the payment |
| Means of Transport: | By Sea, By Air or By Express |





| Pos. | Part No | Qty | Parts Name |
| 1 | 5A-3604 | [16] | BOLT (L=25mm) |
| 2 | 3B-4505 | [16] | LOCKWASHER |
| 3 | 114-1467 | [1] | HOUSING |
| 4 | 1R-5839 | [1] | NUT |
| 5 | 1R-5838 | [2] | BEARING |
| 6 | 127-5834 | [1] | SEAL GP |
| 7 | 114-1470 | [1] | HOUSING |
| 8 | 5I-4898 | [1] | DOWEL |
| 9 | 5I-4897 | [1] | WASHER |
| 10 | 6I-6530 | [4] | PLATE |
| 11 | 1R-5846 | [4] | GEAR |
| 12 | 1R-5848 | [4] | BEARING |
| 13 | 1R-5847 | [4] | RACE |
| 14 | 1R-5844 | [1] | CARRIER |
| 15 | 1R-5842 | [3] | GEAR |
| 16 | 1R-5843 | [3] | BEARING |
| 17 | 114-1468 | [1] | COVER |
| 18 | 114-1471 | [2] | PLUG |
| 19 | 095-1525 | [2] | SEAL-O-RING |
| 20 | 1R-5854 | [8] | SCREW |
| 21 | 1R-5852 | [1] | PLATE |
| 22 | 1R-5851 | [1] | PLATE |
| 23 | 1R-5850 | [1] | PLATE |
| 24 | 6I-6544 | [1] | GEAR |
| 25 | 1R-5845 | [1] | GEAR |
| 26 | 1R-5849 | [1] | RING-RETAINING |
| 27 | 1U-8846 B | GASKET MAKER (10ml) | |
| B | USE AS REQUIRED |



We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.


FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare
parts within the warranty period free of charge.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
|
