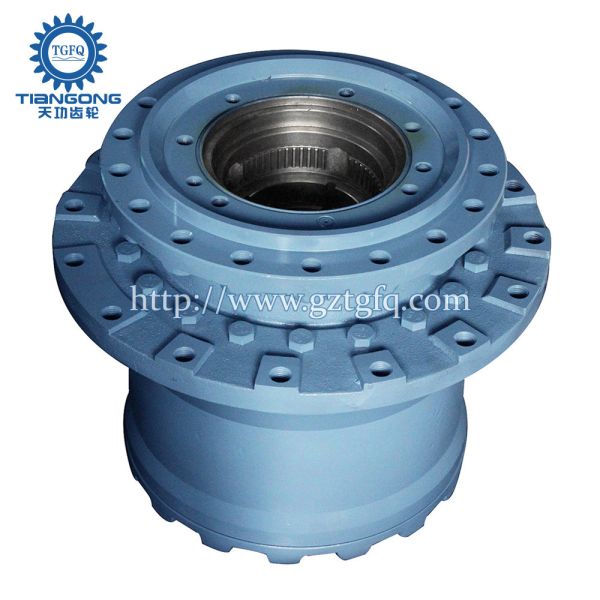

Hitachi Hydraulic Excavator Travel Gearbox Assy EX200-2 9116395
TGFQ Hitachi Excavator EX200-1 Hydraulic Travel Motor Gearbox
Product parameter:
| Product name: | Hydraulic Travel Motor Gearbox |
| Place of Origin: | China(Mainland) |
| Model: | EX200-2 |
| Part number: | 9116395 |
| Motor case: | 14 Holes |
| Motor No.: | HMV116 |
| Shaft: | 46/14T |
| Package Size: | 55*55*59CM |
| Means of Transport: | By Sea, By Air or By Express |

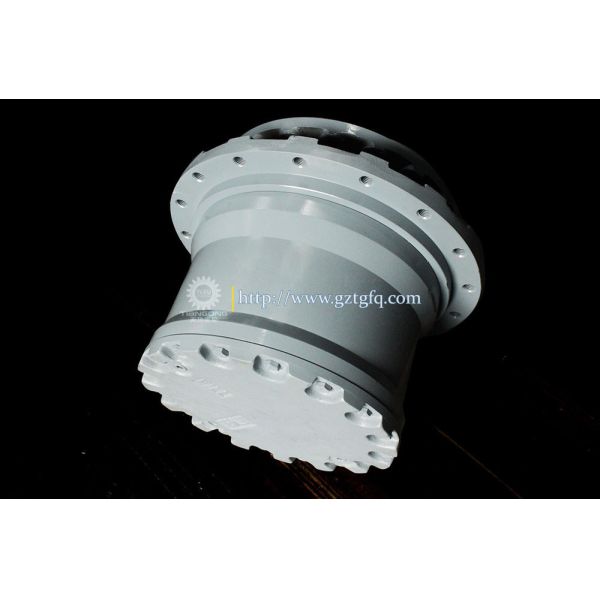

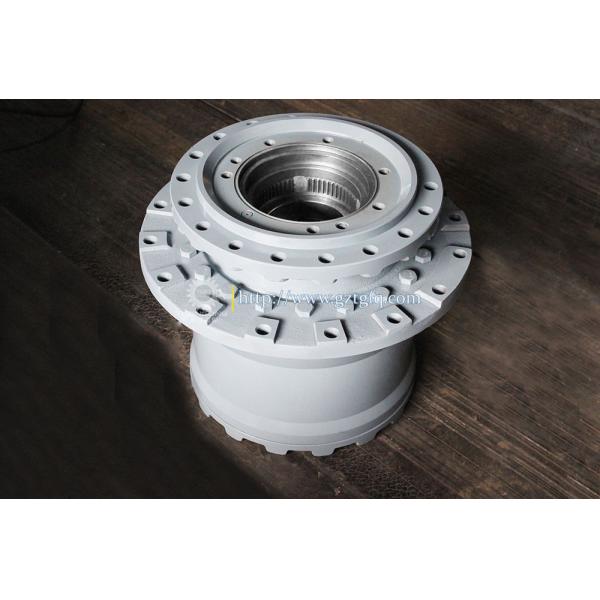

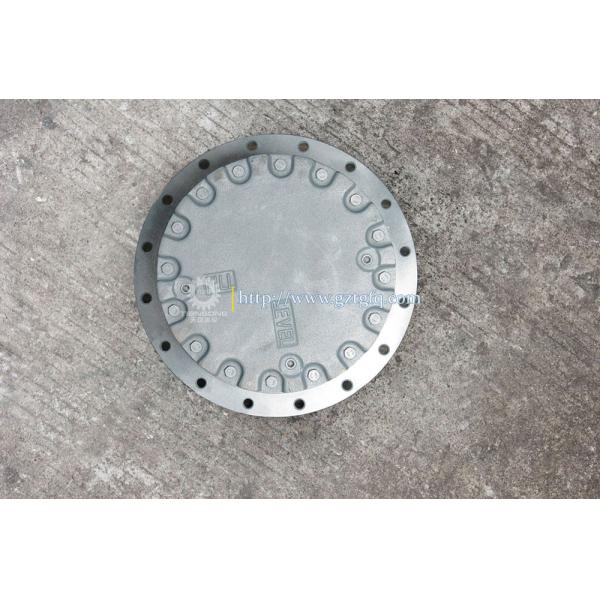

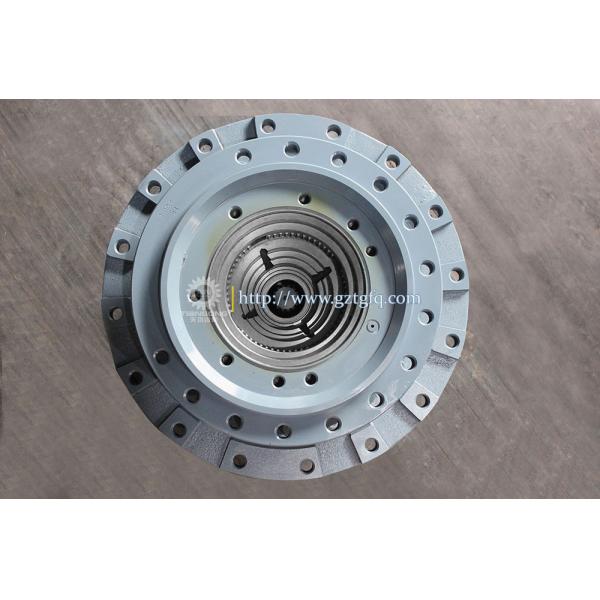

EX200-2 Travel Motor Gearbox Photo:

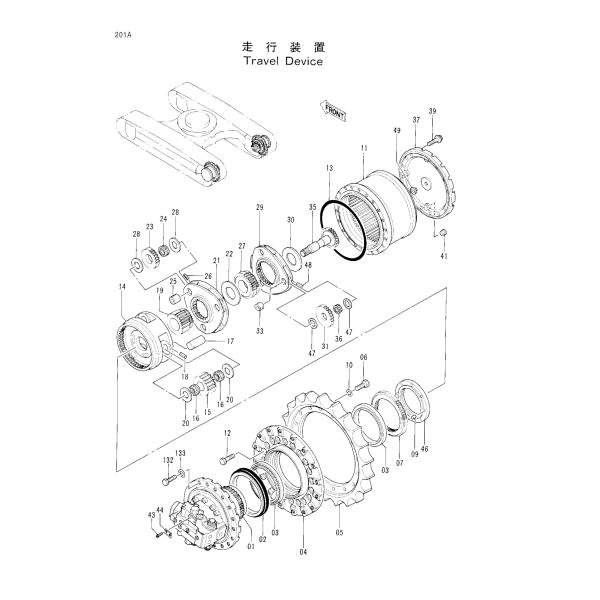

| Pos. | Part No | Qty | Parts name |
| 01-49. | 9091682 | [2] | TRAVEL DEVICE ASS'Y |
| 01-49. | 9091682 | [2] | TRAVEL DEVICE ASS'Y |
| 01-49. | 9116394 | [2] | TRAVEL DEVICE ASS'Y |
| 01-49. | 9116395 | [2] | TRAVEL DEVICE ASS'Y |
| 1 | 9101523 | [1] | MOTOR;OIL |
| 1 | 9101523 | [1] | MOTOR;OIL |
| 1 | 9116388 | [1] | MOTOR;OIL |
| 1 | 9116390 | [1] | MOTOR;OIL |
| 2 | 4114753 | [1] | SEAL;GROUP |
| 3 | 4246793 | [2] | BRG.;ROL. |
| 4 | 1013983 | [1] | DRUM |
| 5 | 1010203 | [1] | SPROCKET |
| 6 | J932055 | [16] | BOLT |
| 7 | 3047448 | [1] | HUB |
| 9 | 4246783 | [1] | PIN;KNOCK |
| 10 | A590920 | [16] | WASHER;SPRING |
| 11 | 1014493 | [1] | GEAR;RING |
| 12 | J931660 | [20] | BOLT |
| 13 | 4246792 | [1] | O-RING |
| 14 | 1014491 | [1] | CARRIER |
| 15 | 3052346 | [3] | GEAR;PLANETARY |
| 16 | 4172394 | [6] | BRG.;NEEDLE |
| 17 | 4252442 | [3] | PIN |
| 18 | 4116309 | [3] | PIN;SPRING |
| 19 | 3049870 | [1] | GEAR;SUN |
| 20 | 4271698 | [6] | PLATE;THRUST |
| 21 | 1014492 | [1] | CARRIER |
| 22 | 4246785 | [1] | SPACER |
| 23 | 3052345 | [3] | GEAR;PLANETARY |
| 24 | 4150398 | [3] | BRG.;NEEDLE |
| 25 | 4252441 | [3] | PIN |
| 26 | 4197763 | [3] | PIN;SPRING |
| 27 | 3049872 | [1] | GEAR;SUN |
| 28 | 4269295 | [6] | PLATE;THRUST |
| 29 | 1014490 | [1] | CARRIER |
| 30 | 4192979 | [1] | SPACER |
| 31 | 3049873 | [3] | GEAR;PLANETARY |
| 33 | 4210853 | [3] | PIN |
| 35 | 2028764 | [1] | SHAFT;PROP. |
| 36 | 4278454 | [3] | BRG.;NEEDLE |
| 37 | 2028763 | [1] | COVER |
| 39 | J011230 | [16] | BOLT;SEMS |
| 41 | 4245797 | [3] | PLUG |
| 43 | M492564 | [2] | SCREW;DRIVE |
| 44 | 3053559 | [1] | NAME-PLATE |
| 46 | 3057125 | [1] | NUT |
| 47 | 4192910 | [6] | PLATE;THRUST |
| 48 | 4173093 | [3] | PIN;SPRING |
| 49 | 4285323 | [1] | PIN;STOPPER |
| 132 | 4258061 | [28] | BOLT |
| 133 | 4018545 | [28] | WASHER |



We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.


FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare
parts within the warranty period free of charge.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
|
