| Brand Name: | TGFQ |
| Model Number: | ZAX450 |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | 500.00-4000.00USD |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 50 pcs / month |
| Delivery Time: | 1-3days |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Product Name: | Hydraulic Excavator Travel Gearbox |
| Part Number: | 9186918 / 9203565 |
| Part Model: | ZAX450 |
| Package Size: | 70*70*68CM |
| Weight: | 480KG |
| Motor No.: | MSF-340VP-FL |
| Company Info. |
| Guangzhou Tiangong Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
ZAX450 Hitachi Excavator Travel Gearbox Reduction 9186918 9203565
ZAX450 Reduction gearbox for Apply To Hitachi Excavator Final Drive Manufacturer
Product parameter:
| Product name: | Hydraulic Excavator Travel Gearbox |
| Place of Origin: | China(Mainland) |
| Model: | ZAX450 |
| Part Number: | 9186918 / 9203565 |
| MOQ: | 1 PCS |
| Hole: | 20/24 |
| Shaft: | 16/32T |
| Means of Transport: | By Sea, By Air or By Express |

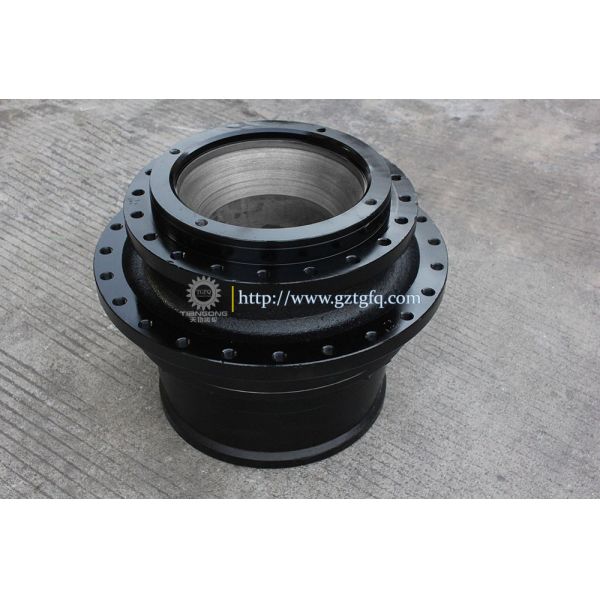

ZAX450 Travel Gearbox Picture:



| Parts on group TRAVEL DEVICE (STD. TRACK, LC TRACK): | ||||
Pos. | Part No | Qty | Parts name | Comments |
| 00-57. | 9186918 | [2] | TRAVEL DEVICE | I 9203565 |
| (for assembly of machine) | ||||
| 00-57. | 9203565 | [2] | TRAVEL DEVICE | |
| (for transportation) | ||||
| 0 | 4431549 | [1] | MOTOR;OIL | I 4481832 |
| 0 | 4481832 | [1] | MOTOR;OIL | I 4637796 |
| 0 | 4637796 | [1] | MOTOR;OIL | |
| 2 | 1027942 | [1] | HOUSING | |
| 3 | 4344155 | [1] | SEAL;GROUP | |
| 5 | 1015882 | [1] | DRUM | |
| 6 | 1010956 | [1] | SPROCKET | |
| 7 | 4200411 | [2] | BRG.;ROL. | |
| 8 | J932270 | [24] | BOLT | |
| 9 | A590922 | [24] | WASHER;SPRING | |
| 10 | 3043140 | [1] | NUT | |
| 11 | 3043141 | [1] | PLATE;LOCK | |
| 12 | J901222 | [2] | BOLT | |
| 13 | 1015883 | [1] | CARRIER | |
| 14 | 3053195 | [4] | GEAR;PLANETARY | |
| 15 | 4452484 | [8] | BRG.;NEEDLE | |
| 16 | 4219595 | [8] | PLATE;THRUST | |
| 17 | 4263903 | [4] | PIN | |
| 18 | 4207947 | [4] | PIN;SPRING | |
| 19 | 3053786 | [1] | GEAR;SUN | |
| 22 | 4203187 | [1] | O-RING | |
| 23 | 1018360 | [1] | GEAR;RING | |
| 24 | J931845 | [30] | BOLT | |
| 27 | 1015523 | [1] | CARRIER | |
| 28 | 4263905 | [2] | SPACER | |
| 29 | 3053194 | [3] | GEAR;PLANETARY | |
| 30 | 4452483 | [3] | BRG.;NEEDLE | |
| 31 | 4201968 | [6] | PLATE;THRUST | |
| 32 | 4263902 | [3] | PIN | |
| 33 | 4203180 | [3] | PIN;SPRING | |
| 34 | 3053785 | [1] | GEAR;SUN | |
| 35 | 1015505 | [1] | CARRIER | |
| 37 | 3053098 | [3] | GEAR;PLANETARY | |
| 38 | 4452480 | [3] | BRG.;NEEDLE | |
| 39 | 4269295 | [6] | PLATE;THRUST | |
| 40 | 4263901 | [3] | PIN | |
| 41 | 4222030 | [3] | PIN;SPRING | |
| 42 | 2044685 | [1] | SHAFT;PROP. | |
| 43 | A590918 | [4] | WASHER;SPRING | |
| 44 | 4279343 | [3] | PLUG | |
| 46 | 4288767 | [1] | PIN;STOPPER | |
| 49 | J911860 | [4] | BOLT | |
| 50 | 4274541 | [1] | BRG.;BALL | |
| 51 | 991725 | [1] | RING;RETAINING | |
| 52 | 3053559 | [1] | NAME-PLATE | |
| 53 | M492564 | [2] | SCREW;DRIVE | |
| 55 | 4271596 | [1] | O-RING | |
| 56 | 1023348 | [1] | COVER | |
| 57 | 4373463 | [16] | BOLT;SHOE | |
| 101 | J932200 | [40] | BOLT | |
| 102 | 4089822 | [40] | WASHER | |



We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage.


FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts.
Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare
parts within the warranty period free of charge.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
|
