ZAX870-3 Zaxis870-3 Excavator Travel Gearbox Hitachi 9251681 9219274

Categories Excavator Travel Gearbox
Brand Name: TGFQ
Model Number: ZAX870-3 Zaxis870-3 ZAX870-5G
Place of Origin: CHINA
MOQ: 1
Price: 500.00-4000.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: Hitachi Excavator Travel Gearbox
Part Number: 9251681 / 9219274
Part Model: ZAX870-3 Zaxis870-3 ZAX870-5G
Hole: 24/24
Shaft: 16/32T
Inner Packing: Wrap with Shrink Film
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ZAX870-3 Zaxis870-3 Excavator Travel Gearbox Hitachi 9251681 9219274

ZAX870-3 Zaxis870-3 Excavator Travel Gearbox Hitachi 9251681 9219274


ZAX870-3 Zaxis870-3 Travel Gearbox Reduction Gearbox For Apply Excavator


Product parameter:

Product name:Travel Gearbox
Place of Origin:China(Mainland)
Model:ZAX870-3 Zaxis870-3 ZAX870-5G
Part Number:9251681 / 9219274
MOQ:1 PCS
Payment term:L/C, T/T, D/P, D/A
Delivery time:Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

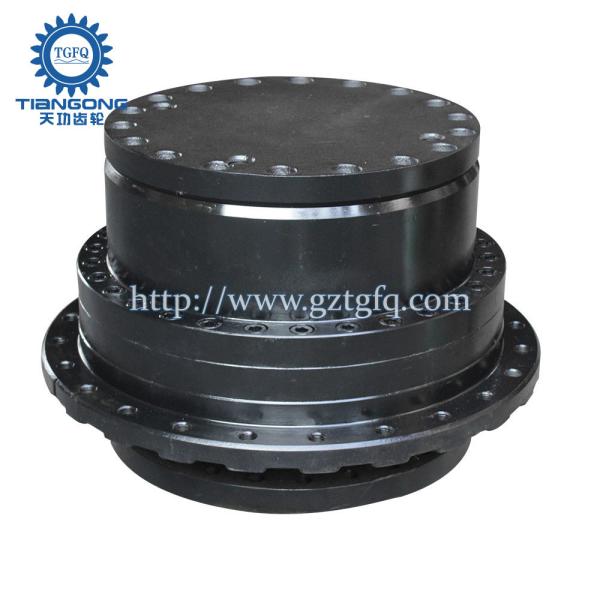

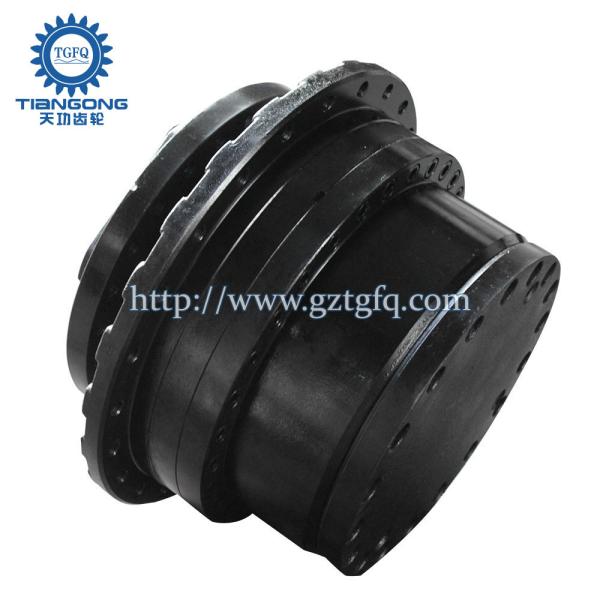

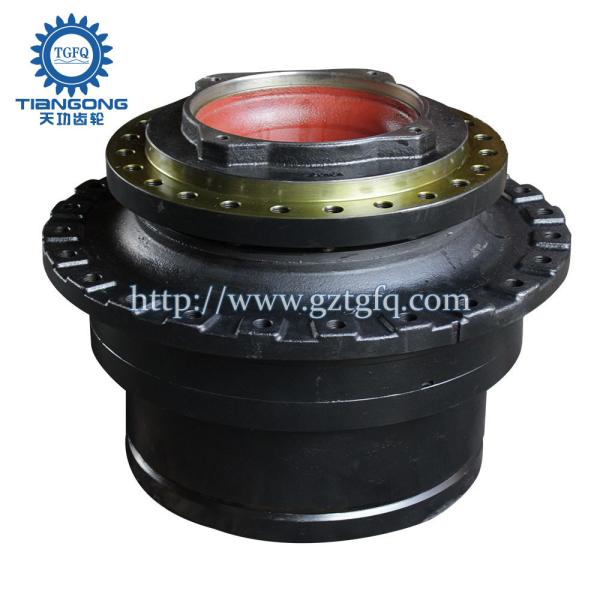

ZX870 Final Drive Picture:

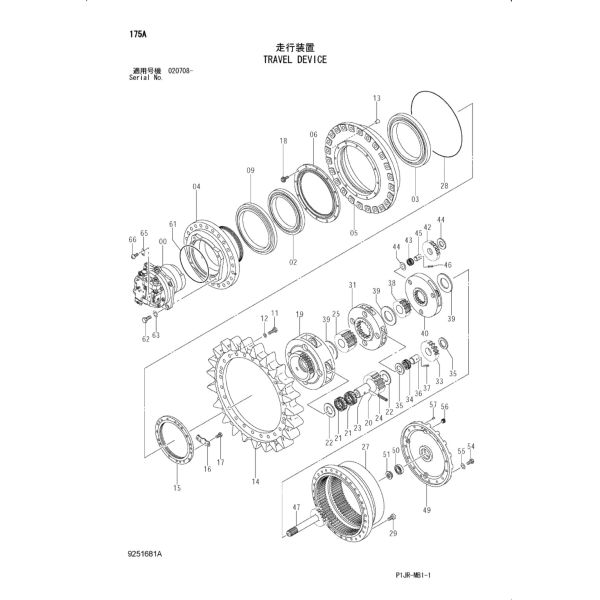

ZX870 Drawing:

Pos.Part NoQtyParts nameComments
00-66.9251681[1]TRAVEL DEVICE
04636857[1]MOTOR;OIL
24219329[1]BRG.;ROL.
34219328[1]BRG.;ROL.
41030160[1]HOUSING
51012131[1]DRUM
62025832[1]SUPPORT
94245703[1]SEAL;GROUP
11J932785[24]BOLT
12A590927[24]WASHER;SPRING
13425175[2]CORK
144430291[1]SPROCKET
153069875[1]NUT
163041462[1]PLATE;LOCK
17J901225[2]BOLT
184609016[12]BOLT;SEMS
191028874[1]CARRIER
203090709[4]GEAR;PLANETARY
214464369[8]BRG.;NEEDLE
224219640[8]PLATE;THRUST
234447037[4]PIN
244222029[4]PIN;SPRING
253090710[1]GEAR;SUN
271028886[1]GEAR;RING
284223568[1]O-RING
29M342260[30]BOLT;SOCKET
311028881[1]CARRIER
333090930[4]GEAR;PLANETARY
344455088[4]BRG.;NEEDLEY 4371402
344371402[4]BRG.;NEEDLE
354269470[8]PLATE;THRUST
364447032[4]PIN
374203180[4]PIN;SPRING
383090711[1]GEAR;SUN
394657080[3]SPACER
401028898[1]CARRIER
423089538[3]GEAR;PLANETARY
434445529[3]BRG.;NEEDLE
444210851[6]PLATE;THRUST
454309995[3]PIN
464246358[3]PIN;SPRING
472045895[1]SHAFT;PROP.
491028899[1]COVER
504284195[1]BRG.;BALL
514277474[1]PIN;STOPPER
544257967[18]BOLT;SHOE
55A590914[18]WASHER;SPRING
564462824[3]PLUG
57429597[2]CORK
614271596[1]O-RING
62J911860[4]BOLT
63A590918[4]WASHER;SPRING
65+++++++[1]NAME-PLATE
66M492564[2]SCREW;DRIVE
1014279079[2]PLATE
1024279078[2]PACKING
103J901216[4]BOLT
1043096382[1]COVER
105J931835[4]BOLT
2019219275[1]T.MISSION(WITHOUT MOTOR) (ITEM 02-61,104-105)
202YB60000075[1]TRAVEL DEVICE(WITHOUT SPROCKET) (ITEM 00-09,15-66,101-103)
203YB60000249[1]TRAVEL DEVICE(WITHOUT MOTOR,SPROCKET) (ITEM 02-09,15-61,104-105)

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
