Kobelco Excavator Travel Device Assy SK250-8 LQ15V00020F1

Categories Excavator Final Drive
Brand Name: TGFQ
Model Number: SK250-8
Place of Origin: CHINA
MOQ: 1
Price: 1000.00-5000.00usd
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 50 pcs / month
Delivery Time: Depends On Order
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Brand: TGFQ
Product Name: Travel Motor Assy
Model: SK250-8
Package Size: 52*52*71 CM
Applicable Industries: Machinery Repair Shops, Energy & Mining
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

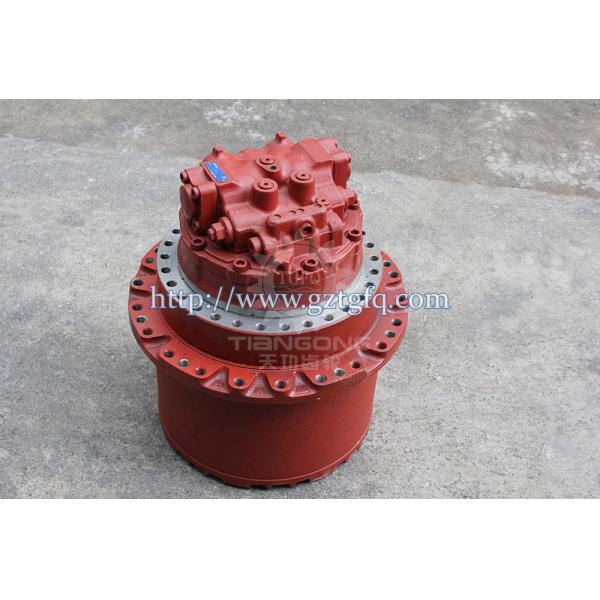

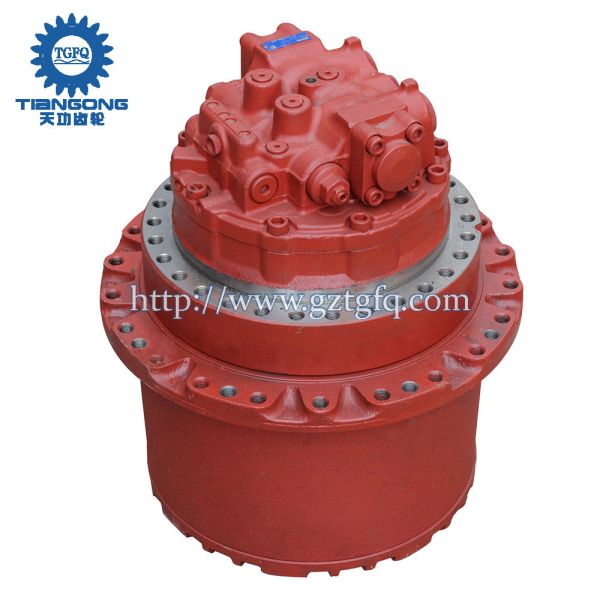

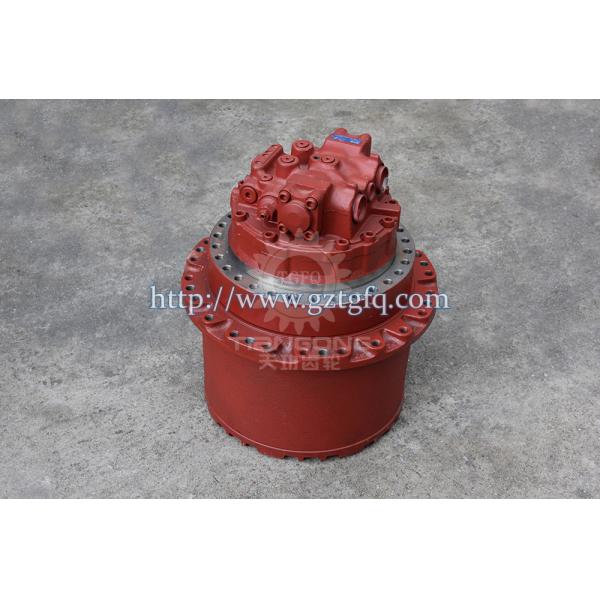

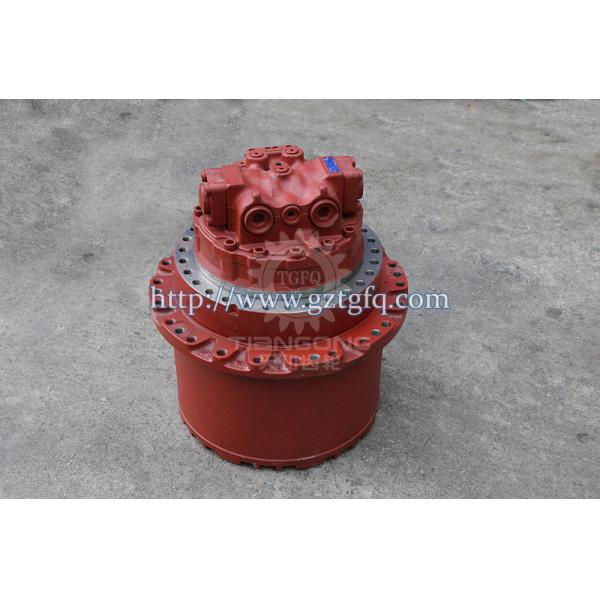

Kobelco Excavator Travel Device Assy SK250-8 LQ15V00020F1

Kobelco Excavator Travel Device Assy SK250-8 LQ15V00020F1​


Kobelco SK250-8 Excavator LQ15V00020F1 Travel Device Travel Motor Assy


PRODUCT DESCRIPTION
Model: SK250-8
egory: Excavator Final Drive
Brand: TGFQ
Type: MAG170VP-3800G-10
Part Number: YN15V00051F5 / LQ15V00020F1 / LQ15V00020F2 / LQ15V00020F3
Inventory: In stock
Color: Red
Holes: 30/30Holes
Guarantee: We will check the starter motor and send detail pictures to buyer to confirm before shipping.

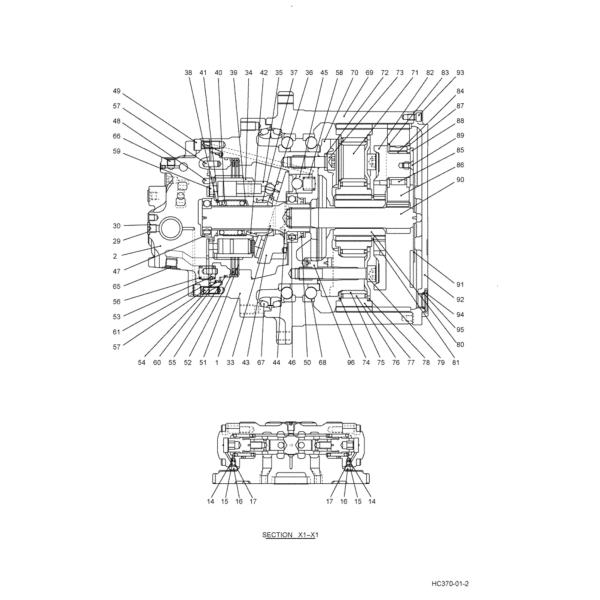

Drawing:
Pos.Part NoQtyParts nameComments
. .LQ15V00020F1[1]HYDRAULIC MOTORSM ASSY, PROPEL Superseded by part number: LQ15V00020F5
1NA[1]NOT SERVICEDFOR FLANGE
2NA[1]NOT SERVICEDFOR PLATE
3NA[1]NOT SERVICEDFOR SPOOL
4NA[2]NOT SERVICEDFOR VALVE,CHECK
5NA[2]NOT SERVICEDFOR SPRING
6NA[2]NOT SERVICEDFOR PLUG
7ZD12P02100[2]O-RING,2.4mm Thk x 20.8mm ID, 90 DuroKOB O-Ring -- ID 20.80 ± 0.23 x OD 25mm
82436U1027S203[2]SEAT/SLOTKOB
9LQ15V00020S009[2]SPRINGSM
102436U1027S205[2]SEAT/SLOTKOB
11NA[2]NOT SERVICEDFOR CAP
12ZD12G04500[2]O-RING,44.40mm ID x 50.60mm OD x 3.10mmKOB ID 44.40 ± 0.41 x OD 50mm
13ZS23C12040[8]SCREW,Hex Socket Head, M12 x 40mmKOB M12x1.75x40mm
142436U281S37[2]BALLKOB
152441U792S18[2]SPRINGSM
162441U792S19[2]PLUGSM
17ZD12P00800[2]O-RING,1.9mm Thk x 7.8mm ID, 90 DuroKOB ID 7.8mm x OD 9.7mm
18YN23V00003F1[2]VALVE PRESSURE RELIEKOB SEE (HC38)
19NA[8]NOT SERVICEDFOR PLUG
20NA[1]NOT SERVICEDFOR SPOOL
21NA[1]NOT SERVICEDFOR SPOOL
22LQ15V00007S027[1]SPRINGKOB
232441U792S141[1]PLUGKOB
24ZD12P01800[2]O-RINGKOB ID 17.8mm x OD 20.2mm
25LQ15V00007S030[1]GUIDE PINKOB
26LQ15V00007S031[1]PLUGKOB
272441U983S27[1]WASHERKOB
28NA[2]NOT SERVICEDFOR ORIFICE
29NA[4]NOT SERVICEDFOR PLUG
30ZD12P01100[4]O-RINGKOB ID 10.8mm x OD 13.2mm
31NA[3]NOT SERVICEDFOR ORIFICE
32NA[1]NOT SERVICEDFOR ORIFICE
33LQ15V00007S042[1]SHAFTKOB
34NA[1]NOT SERVICEDFOR BLOCK,CYLINDER
35NA[9]NOT SERVICEDFOR PISTON ASSY
36NA[1]NOT SERVICEDFOR PLATE,RETAINER
37NA[1]NOT SERVICEDFOR HOLDER,RETAINER
38YN15V00005S114[1]SNAP RINGKOB
39YN15V00005S115[1]SPRING SEATKOB
40YN15V00005S116[1]SPRINGKOB
41YN15V00005S117[1]RINGKOB
422441U792S119[3]PINKOB
43LQ15V00020S043[1]PLATESM
442441U792S110[2]BALLKOB
45NA[2]NOT SERVICEDFOR PISTON ASSY
46LQ15V00007S055[1]BALL BEARINGKOB
47LQ15V00007S056[1]BALL BEARINGKOB
48LQ15V00020S048[1]PINSM
49ZS23C14035[10]SCREW,Hex Socket Head, M14 x 35mmKOB M14x2.0x35mm
50LQ15V00020S050[1]SEALSM OIL SEAL
51LQ15V00020S051[3]PLATESM DISK Superseded by part number: LQ15V00031R940
522441U983S126[2]PLATEKOB
53LQ15V00020S053[1]PISTONSM BRAKE
542441U984S42[1]O-RINGKOB
552441U983S130[1]O-RINGKOB
562441U792S130[6]SPRINGKOB
57YN15V00005S128[4]PINKOB
58YN15V00005S139[2]SPRINGKOB
59LQ15V00020S059[1]PLATESM VALVE
60ZD12P01000[4]O-RINGKOB ID 09.80 ± 0.17 x OD 13mm
612441U802S30[1]O-RINGKOB
62NA[1]NOT SERVICEDFOR NAME PLATE
63NA[2]NOT SERVICEDFOR SCREW,DRIVE
64NA[2]NOT SERVICEDFOR PLUG
65NA[1]NOT SERVICEDFOR PLUG
66NA[1]NOT SERVICEDFOR PLUG
67LQ15V00020S067[2]SEALSM SEAL, FLOATING
68LQ15V00007S077[2]BEARINGKOB
69NA[1]NOT SERVICEDFOR
70NA[1]NOT SERVICEDFOR SHIM (0.05)
71LQ15V00020S071[1]RUBBER RINGSM HOLDER
72LQ15V00007S081[8]FRICTION WASHERKOB
73LQ15V00007S082[8]SCREWKOB
74LQ15V00020S074[4]PLATESM THRUST
75LQ15V00007S084[4]RACEKOB
76LQ15V00020S076[4]NEEDLE BEARINGSM NEEDLE
77LQ15V00007S086[4]DRIVEN GEARKOB
78LQ15V00020S078[4]PLATESM THRUST
79LQ15V00007S088[4]SCREWKOB
80LQ15V00020S080[1]GEARSM SUN
81LQ15V00007S090[1]RINGKOB
82LQ15V00020S082[1]CARRIERSM HOLDER
83LQ15V00007S092[3]PLATEKOB
84LQ15V00020S084[3]RACESM INNER
85LQ15V00020S085[3]NEEDLE BEARINGSM NEEDLE
86LQ15V00020S086[3]GEARSM
87LQ15V00007S096[3]PLATEKOB
88LQ15V00020S088[1]PLATESM THRUST
89LQ15V00007S098[3]SCREWKOB
90LQ15V00020S090[1]GEARSM DRIVE
91NA[1]NOT SERVICEDFOR PLATE,THRUST
92LQ15V00007S101[1]COVERKOB
93ZS28C10016[16]SCREW,Hex Socket Head, M10 x 16mmKOB M10x1.50x16mm
94LQ15V00007S103[3]PLUGKOB
95ZD12P02400[3]O-RINGKOB ID 23.70 ± 0.24 x OD 30mm
96LQ15V00007S105[4]PINKOB
K.LQ15V00020R100[1]KITSM REPAIR, CONSISTS OF ITEM 7X2, 12X2, 17X2, 24X2, 30X4, 50X1 54X1, 55X1, 60X4, 61X1
K.LQ15V00020R200[1]KITSM REPAIR, CONSISTS OF ITEM 67X2, 95X3 Superseded by part number: LQ15V00031R200
K.LQ15V00020R300[1]KITSM REPAIR, CONSISTS OF ITEM 1X1, 45X2
K.LQ15V00020R400[1]KITSM REPAIR, CONSISTS OF ITEM 2X1, 3X1, 4X2, 5X2, 6X2, 7X2, 19X8, 20X1, 21X1, 28X2, 29X4, 30X4, 31X3, 32X1
K.2441U792S13[1]CAPKOB REPAIR KIT, CONSISTS OF ITEM 11X2, 12X2, 13X8, 14X2, 15X2, 16X2 17X2
K.LQ15V00020R600[1]BLOCKKOB REPAIR KIT, CONSISTS OF ITEM 34X1, 35X9, 36X1, 37X1, 38X1, 39X1, 40X1, 41X1, 42X3
K.LQ15V00007R700[1]REPAIR KITKOB CONSISTS OF ITEM 70X1
K.LQ15V00007R800[1]REPAIR KITKOB CONSISTS OF ITEM 91X1
K.LQ15V00020R900[1]REDUCERKOB REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4




OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: How long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
