GM85VA SK460-8 SH460 Kobelco Excavator Travel Device LS15V00020F4

Categories Excavator Travel Device
Brand Name: TGFQ
Model Number: SK460-8 SH460
Place of Origin: Guangdong, China
MOQ: 1
Price: 500.00-4000.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: Excavator Travel Gearbox
Part Number: LS15V00020F4 / LN001990
Applicable Industries: Machinery Repair Shops, Energy & Mining
Outer Packing: wooden case
Inner Packing: Wrap with Shrink Film
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

GM85VA SK460-8 SH460 Kobelco Excavator Travel Device LS15V00020F4

GM85VA SK460-8 Kobelco SH460 Excavator Travel Device LS15V00020F4


GM85VA SK460-8 Travel Transmission Gearbox For Apply Kobelco Reduction Gearbox

Product parameter:

Product name:Travel Gearbox
Place of Origin:China(Mainland)
Model:SK460-8 SH460
Part Number:LS15V00020F4 / LN001990
MOQ:1 PCS
Payment term:L/C, T/T, D/P, D/A
Delivery time:Within 1-3 days after receiving the payment
Means of Transport:
By Sea, By Air or By Express

Kobelco machinery list:

Kobelco parts alog
(SK485LC-9) - ACERA MARK 9 EXCAVATOR, ASN YS12U0802 (11/11-12/13)
(35.353.02) - MOTOR INSTALL, PROPEL » LS15V00020F4
(SK485-9) - HYDRAULIC EXCAVATOR - TIER 3 NON-REGULATED (LATIN AMERICA) (1/13-12/13)
(35.353.AD[01]) - MOTOR INSTALL, PROPEL » LS15V00020F4

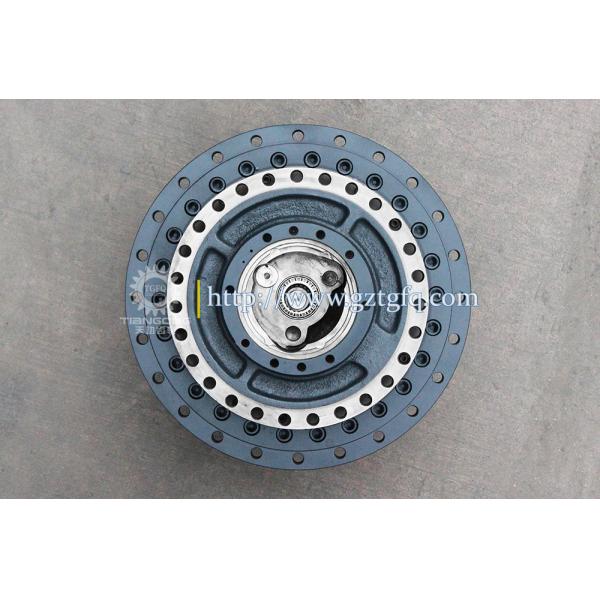

SK460-8 Travel Gearbox Photo:

SK460-8 Drawing:

Pos.Part NoQtyParts nameComments
1LN001990[1]REDUCERSUM Gears
2LC00213[1]RING GEARSUM
3LB00832[2]BALL BEARINGSUM
4LC003000[1]GEARSUM
5108R020Y120B[26]BOLTSUM
6LW00391[1]COVERSUM
7108R010Z025B[16]BOLTSUM
8LE00993[1]SEALSUM
9LH00390[1]KITSUM
10LH00434[1]SHIM,2.0mm ThkSUM Superseded by part number: LH00390
11LH00435[1]SHIM,2.1mm ThkSUM
12LH00436[1]SHIM,2.2mm ThkSUM
13LH00437[1]SHIM,2.3mm ThkSUM
14LH00438[1]SHIM,2.4mm ThkSUM Superseded by part number: LH00390
15LH00439[1]SHIM,2.5mm ThkSUM Superseded by part number: LH00390
16LH00440[1]SHIM,2.6mm ThkSUM Superseded by part number: LH00390
17LH00441[1]SHIM,2.7mm ThkSUM Superseded by part number: LH00390
18LH00442[1]SHIM,2.8mm ThkSUM Superseded by part number: LH00390
19LH00443[1]SHIM,2.9mm ThkSUM Superseded by part number: LH00390
20LH00444[1]SHIM,3.0mm ThkSUM
21LH00445[1]SHIM,3.1mm ThkSUM Superseded by part number: LH00390
22LH00446[1]SHIM,3.2mm ThkSUM
23LA00847[2]LOCK WASHERSUM
24LS00212[1]HOLDERSUM
25LN002000[1]HOUSINGSUM
26LC00212[3]PLANETARY GEARSUM
27380A1200Z[6]SNAP RINGSUM
28LB011020[6]ROLLER BEARINGSUM
29LA00846[3]PINSUM
30338W100Z063Z[3]DOWELSUM Superseded by part number: 338W100Z063B
31LH005020[1]SPACERSUM
32LC00211[1]SUN GEARSUM
33LX00045[1]PINION CARRIERSUM GEAR CARRIER
34LC00209[3]PLANETARY GEARSUM
35LA00845[6]WASHERSUM
36LB011170[3]NEEDLE BEARINGSUM
37LA00844[3]PINSUM
38338W060Z036N[3]PINSUM Superseded by part number: 338W060Z036B
39LC00210[1]SUN GEARSUM
40LR00857[1]PLATESUM
41LW005200[1]COVERSUM
42108R012Z030B[25]BOLTSUM
43LK00383[2]PLUGSUM
44154503A1[2]O-RINGSUM
45LJ015030[1]HYDRAULIC MOTORSUM Superseded by part number: LJ018720
. .LJ018720R[1]REMAN-HYD MOTORSUM CX460 TIER 3 (1/07-), Reman For New P/N: LJ015030
. .LJ018720C[1]CORE-MOTOR HYDRAULICSUM Return Number
46LW005210[1]HOUSINGSUM
47LK005330[2]PLUGSUM
48LE00997[1]OIL SEALSUM
49800-2168[1]SNAP RING,M68, IntCAS Superseded by part number: 11061376
. .LJ013800[1]PISTONSUM Incl. 51, 52
51LJ013810[1]PISTONSUM Superseded by part number: LJ013800
52LE012890[1]SEALSUM Superseded by part number: LJ013800
53LB011180[1]BALLSUM
54LB00833[1]SHAFTSUM
55LB00834[1]TAPERED BEARINGSUM Superseded by part number: 9832269
. .LR013570[1]PLATESUM Incl. 57, 58
57LB00794[2]BEARING, ROLLERSUM
58LR013580[1]PLATESUM Superseded by part number: LR013570
59LS002910[1]BRACKETSUM
60LG00430[9]COMPRESSION SPRINGSUM
61LR00950[1]SPRING SEATSUM
62LB00795[1]BALL JOINTSUM
63LH00320[1]RETAINERSUM
64LJ015040[9]PISTONSUM
65LR00859[7]ADJUSTING PLATESUM
66LR00858[6]PLATESUM
67LJ00954[1]PISTONSUM
68LE012900[1]SEALING RINGSUM SEALRING
69LE012910[1]SEALING RINGSUM SEALRING
70LW004720[1]COVERSUM
84LK00391[2]PLUGSUM
85154467A1[2]O-RING,10.8mm ID x 2.4mm WidthSUM
88TK00028[4]PLUGSUM
89154455A1[4]O-RINGSUM
90TJ00129[3]CHECK VALVESUM
91TG00045[3]SPRINGSUM
96LE00999[1]O-RINGSUM
97LB00797[1]TAPERED BEARING,35mm ID x 72mm OD x 24.25mm WSUM
. .LH00389[1]SHIM KITSUM Incl. 99 - 104
99LH00428[1]SHIM,0.4mm ThkSUM
100LH00429[1]SHIM,0.5mm ThkSUM
101LH00430[1]SHIM,0.6mm ThkSUM
102LH00431[1]SHIM,0.7mm ThkSUM
103LH00432[1]SHIM,0.8mm ThkSUM
104LH00433[1]SHIM,0.9mm ThkSUM
105837-8012[1]DOWEL,M8 x 12CAS
106LR015650[1]PLATESUM
107LG00431[14]COMPRESSION SPRINGSUM
123LB00793[1]COUPLING FLANGESUM
124800-2140[1]SNAP RING,M40, IntCAS Superseded by part number: 300644
