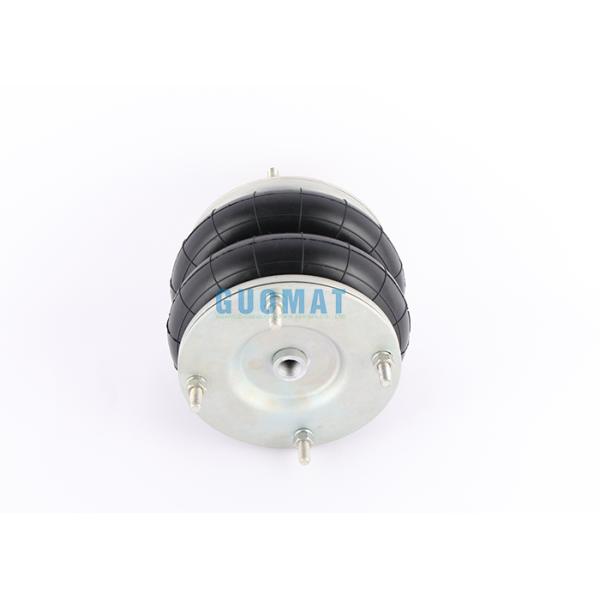

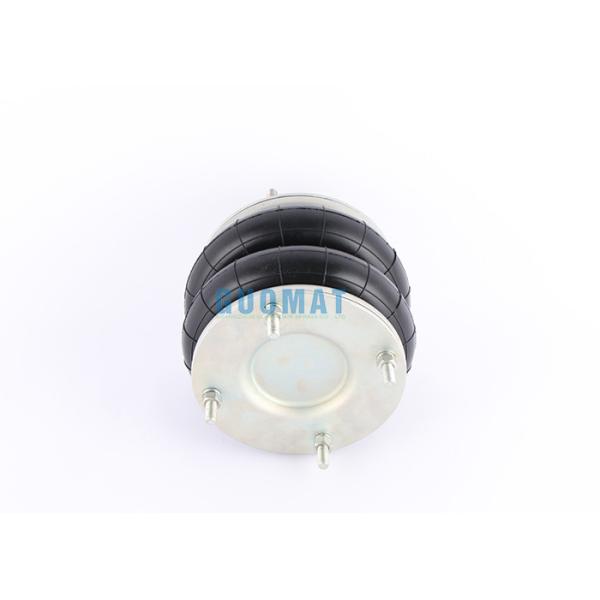

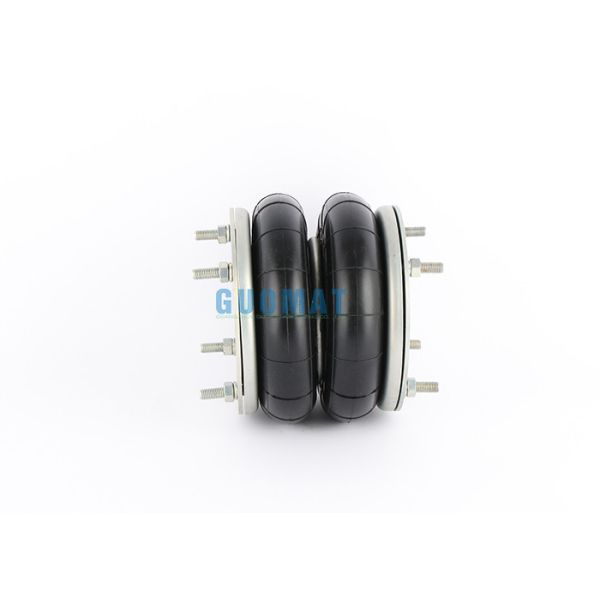

203.2 Rubber Dia Norgren Air Bellows M/31082 Cross to Goodyear 2B8-2150

Norgren Air Spring M/31082 Cross to Goodyear 2B8-2150 With 203.2 Rubber Dia.

GUOMAT 2Y205130 Cross OEM :

GUOMAT Part Number:2Y205130

Norgren Part Number:M/31082

Norgren Part Number:M 31082

Norgren Part Number:M31082

Goodyear Part Number:2B8-2150

Goodyear Part Number:2B8 2150

Goodyear Part Number:2B8-2150

Continental Part Number: FD 138-18 DS 66505

Continental Part Number: FD 138-181/2 M10

Continental Part Number: FD 138-18 DS 1/2 M10

Continental Part Number: FD-138 DS G1/2

Continental Part Number: FD 138-18 DS G1/2 M10

Continental Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS

Continental Part Number:: FD 138-18 / FD138-13-181 1

Contitech Part Number: FD 138-18 DS 66505

Contitech Part Number: FD 138-181/2 M10

Contitech Part Number: FD 138-18 DS 1/2 M10

Contitech Part Number: FD-138 DS G1/2

Contitech Part Number: FD 138-18 DS G1/2 M10

Contitech Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS

Contitech Part Number:: FD 138-18 / FD138-13-181 1

Specifications of Style 8" x2

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter (Width): 184 mm

Bottom Cover Plate Diameter (Width): 184 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Diameter max at 7 bar:225MM

Stroke of Rubber Bellows:75mm-225m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber
Bellows type industrial air spring,
Double spin,
138 square centimeters of effective area,
18 cm maximum stroke,
Bellows only

Features
Single acting
Aperture (inch)
8
Stroke length (mm)
175
Port size (inch)
G1/2
End cap material
aluminum
body fluid
Compressed air
Working temperature (°C)
From -40 to 70
Working pressure (bar)
From 0 to 8
