| Categories | PU Sandwich Panel Machine |
|---|---|
| Brand Name: | HENGRUIYANG |
| Model Number: | OEM ODM |
| Certification: | CE , ISO9001, TUV, SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10set |
| Delivery Time: | 40-60 days |
| Packaging Details: | Standard export packing with each machine tied and protected in container |

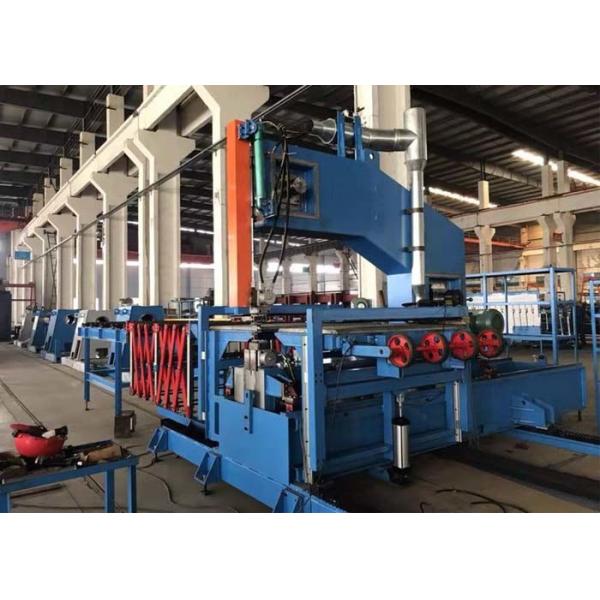

| name: | Sandwich Panel Roll Forming Machine |
| Max. Stacking length: | 15m |
| Suitable to process: | Color steel plate or galvanized steel sheet |
| Roll forming electric tension: | 380V 3phase 50HZ or as the customer's requirements |
| Min. cutting length: | 3 meters |
Machine parameters:
Production line open size (length×width) | 48000×8000mm | Maximum temperature of hot air circulation | 70°C |
| Minimum cut length | 1200mm | ||
| Product specification | Max.width1200mm Max.thickness =15-100mm | Production line weight | 40T |
| Diagonal Precision | ±2mm | ||
| Production speed | 3-8m/min | Total power | 120K |
Working Principle
Polyurethane resin,curing agent,and foaming agent are delivered to high-speed mixing head in certain proportion through metering pump,evenly mixed and continuously coat on basal plate by coating head’s reciprocating motion,then enter into double crawler machine with plate,foam and cure between the top and bottom layer of heated double crawler machine;when it is cured and shaped,the trimming device on both sides will get it into accurate size.Finally,the sizing following tracing cutting machine cut off it as per preset length.
Product Application
1. The plank class:
Inciuding:interior decorating plate,cold storage board,exterior wall decoration,ceiling,roof
insulation board,wall insulation board and other civil and steel structureconstruction etc.
2. The ventilation pipe class:
Main application with the central air conditioning ventilation pipe.
3. The cladding material of pipes and containers
Mainly used in petroleum,chemical industry,such as heating,municipal pipeline insulation class.
FAQ
1)What is the property of this production line ?
We have two kinds of production line , discontinous and continous
production line.
2) Do you have double -belt laminating machine ?
Yes , we have both double-belt and double-crawler laminating
machine .
3) what is the production speed ?
3-10m/min (according to the sheet metal forming requirment can be
stepless adjustable)
4) what is the length of production line ?
It is about 160 meteres
5) what is the size of roof and wall panel ?
Width:1000mm,Thickness:40-200mm (corrugation is not
included),length: min 3 meters(manual cutting is not included)
6) what is the production capacity of the continous production line
?
It can reach 1,000,000 square meters (300 working day per year ,10 hours per day)
|
