| Categories | PU Sandwich Panel Machine |
|---|---|
| Brand Name: | HENGRUIYANG |
| Model Number: | OEM ODM |
| Certification: | CE , ISO9001, TUV, SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10set |
| Delivery Time: | 40-60 days |
| Packaging Details: | Standard export packing with each machine tied and protected in container |

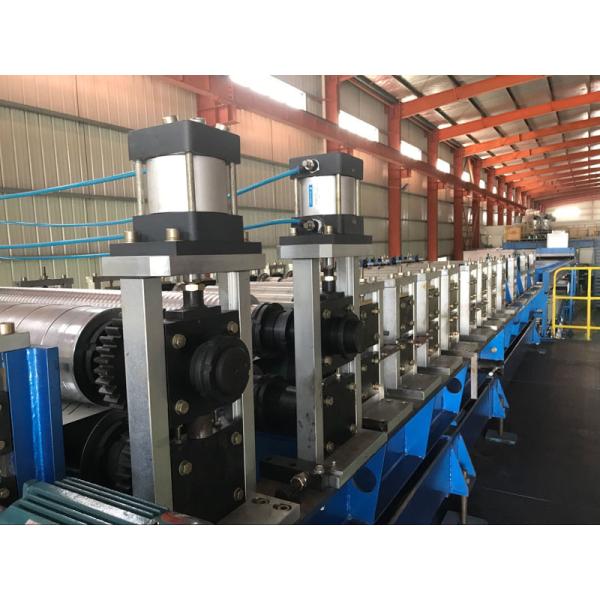

| Name: | PU Sandwich Panel Making Machine |
| Material: | steel |
| Thickness: | 1-5mm |
| Color: | accoring customer |
| Speed of Production line: | 8m/min ( frequency conversion to adjust speed ) |
| Tensile Strength: | 300–500KPa |
| PLC: | Siemens |
| Profile: | choose |
Technical Parameters:
Length of panel: 6m,12m,15m
Width of panel: 500-1250mm
Thickness of panel: 40mm-250mm
Speed of Production line: 8m/min ( frequency conversion to adjust speed )
Core Density (Kg/m2):40-42
Thermal Conductivity (W/m°K):0.018 – 0.020
Tensile Strength (KP a) :300–500
Bending Strength (KP a): 550–560
Shear Strength (KP a):120–300
Modulus of Elasticity (Mp a):3.0 – 8.5
Water Absorption :<2(Volume change %)
Water Vapor Transmission :1.8-3.8(Perm-in)
Stable Operating Temperature:-40to+50(°c)
Capacity:
One set of 6m PU Sandwich panel line is 288 sq.m. per day, 8 hours, so
it is 72000 sq.m. yearly with 2500 days per year
One set of 12m PU sandwich panel line is 576 sq.m. per day, 8 hours. so
it is 14400 sq.m. yearly, for 250 days per year.
Production capacity of this production line: 3-8m/min.
Panel width: 800-1000mm, panel thickness: 30-150mm.
Total power: about 150kw
| EPS Sandwich Panel Spec | ||
| Panel thickness | Mini thickness | 50mm (wall panel) |
| Max. thickness | 200mm(exclude corrugated sandwich panel) | |
| Steel Sheet Spec | ||
| Thickness | 0.4-0.7mm color steel sheet | |
| Width | 1250mm (we can design according to buyer’s requirement) | |
| Max. coil weight | 5 tons | |
| Inner Dia. of coil | 508mm | |
| Whole Line Spec | ||
| Whole line dimension | about 35000mm × 2500mm × 3000mm | |
| Total weight | About 18t | |
| Working speed | About 5-7m/min (adjustable) | |
| The output | 1500m2-2000m2/8hour | |
| Control mode | PLC and converter | |
| Total power | About 28Kw (as per final designing) | |
| Power required | 380V/3phase/50Hz or as per customer's requirement. | |
| Air pressure | 0.7Mpa (for buyer to prepare) | |
| Suitable working temperature | About 25 degree | |
|
