IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner

IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner

1. Description Of Outdoor Electrical Enclosure

The ET70100170-EQ used in outdoor environment.We carry IP55 enclosures that demonstrate almost complete protection from particles and a good level of protection against water,They are specifically designed for mounting onto a column. Double-walled case design safeguards the installed components from all-weather as well as from vandalism thanks to the cabinet's compact structure which prevents removal of individual components from the outside.

2. Selling points and Feature Of Outdoor Electrical Enclosure

- 19 inch device installation;

- Cable splicing and protection function;

- Welded forming with galvanized steel sheet, outdoor powder spouted at the inside and outside

surface;

- Heat-isolation material filled in the interior.

- The cabinet with IP55 protection level is dustproof, sunproof, and rainproof, especially suitable for the outdoor environment.

- The cabinet uses air conditioners as a cooling system, which can effectively reduce the temperature in the cabinet.

3. Technical Parameters

4. Accessories List

5. Enclosure Cooling

1500W/Heat Air Conditioner and 80W/K Heat Exchanger Integrated Unit

6. Cabinet Structure

(1) External Dimension: 700×1000×1700mm

(2) 1 compartment

(3) With one front door and one rear door , and special lock for outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

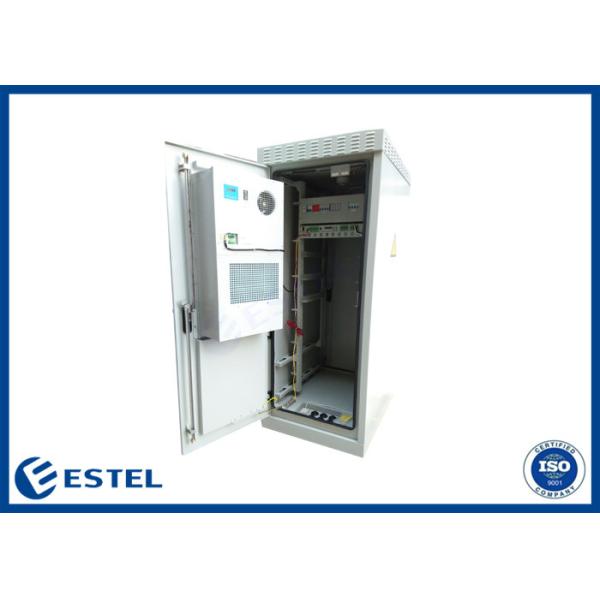

7. Cabinet Picture:

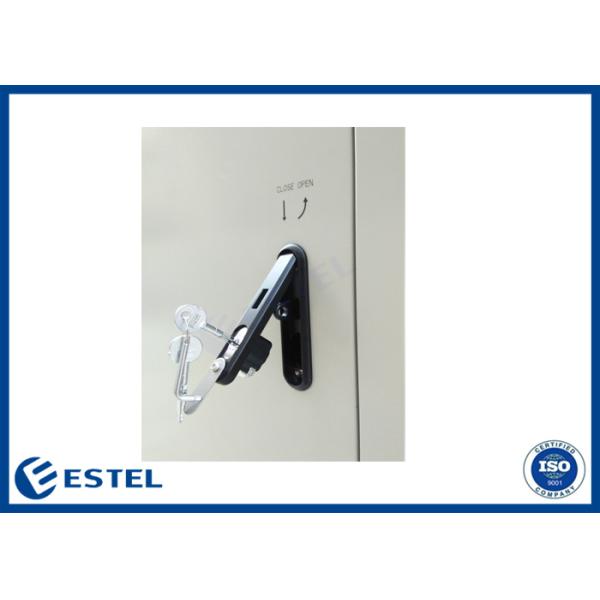

8. Cabinet Iock

Three point lock and key

9. Production

With the original design concept, a team of experienced designers has been built. After the introduction of PM product

creativity, industrial design, institutional design, electronic research and development, mold development, production and

assembly, the product to achieve the whole process from the wonderful creativity to the perfect realization.

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG) TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
