ISUZU FVZ 6X4 12000Liters 16000liters 12tons 16tons Water tank Fire fighter Truck for sale
Product Description
1. ISUZU 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2) To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3) Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
Specifications of ISUZU 6X4 fire fighting truck
| Chassis | Chassis brand | / | ISUZU FVZ |
| Model | / | QL1250 | |
| Drive type | / | 6x4 left hand drive | |
| Cabin | / | double cabin,two row,5 seats | |
| Overall dimension(L*W*H) | mm | 9775x2500x3560 | |
| Total mass | kg | 24480 | |
| Rated Loading capacity | kg | 11050 | |
| Wheel Base | mm | 5100+1300 | |
| Front /rear suspension | mm | 1335/1950 | |
| Approach/departure angle | (°) | 26/12 | |
| Spring No. | / | 9/10 | |
| Tyre No. | pcs | 11 PCS,one spare tyre | |
| Type & Size of Tyre | / | 11.00-20 | |
| Axle No. | / | 3 | |
| Steering wheel | / | left hand drive | |
| Engine | Engine model | / | 6HK1-TCSG40 |
| Engine brand | / | ISUZU | |
| Maximum power | KW/HP | 206/280 | |
| Fuel type | / | diesel | |
| Displacement | ml | 7790 | |
| Max torque | N.m | / | |
| Rated rotor speed | Rpm | / | |
| Emission Standard | / | Euro IV | |
| 12,000 litres water tank & 4000 litres foam tank | |||
| Fire pump | Model | / | CB10/60,Normal pressure pump |
| Pressure | Mpa | ≥1.0 | |
| Max suction height | m | 7 | |
| Flux | L/S | 60 | |
| Rated speed | r/min | 3000 | |
| Time of drawing water (s) | s | ≤35 | |
| Input diameter | mm | 125 | |
| Outlet diameter | mm | 2xΦ75 | |
| Fire monitor | Model | / | PL48 |
| Fire fighting nozzle range | Water (m) | ≥60 | |
| Foam (m) | ≥55 | ||
| Flux | L/S | 48 | |
| Rated Working pressure | Mpa | 1 | |
| Rotation angle | (°) | 360 | |
Reference photos
Working Scene of water tank fire brigade truck

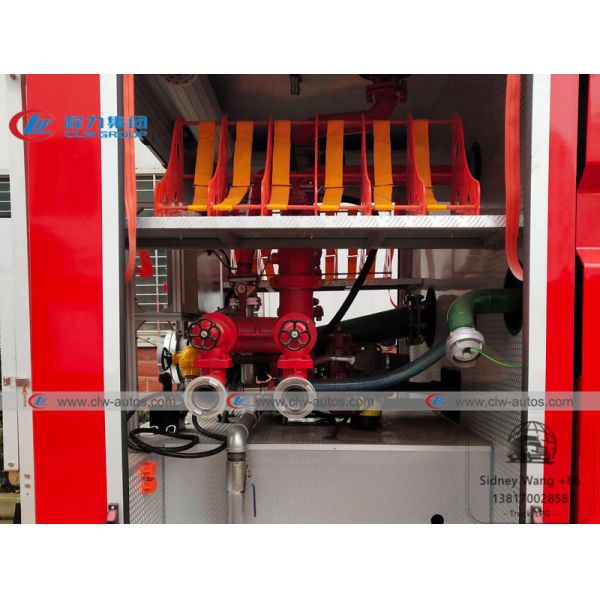

Equipment come with fire trucks
Production Procedure
Factory overview
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of water/foam tank fire brigade truck I can order from your company?
A: There are various sizes and types of water/foam tank fire
brigade trucks with different functions,you can contact us and tell
your request.We will recommend you suitable product.
Q2:: Have you supplied water tank fire brigade truck to any overseas companies?
A: Yes,with need of government project,we offered water tank fire
brigade trucks to many Africa and south-east Asian,south-American
countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
Warranty
1. One year free warranty for major 3 components of our trucks:
engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's
country to assist the installation and operation when quantity
reaches 20 units.
3. Transportation warranty: our company offers transportation
insurance for customer to ensure the products arriving at
destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
