| Categories | Water Bowser Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5079dcx |
| Certification: | CCC,ISO |
| Place of Origin: | Suizhou, China |
| MOQ: | 1 UNIT |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 500Unit Per Month |
| Delivery Time: | 20-30 Days |
| Packaging Details: | Naked packing,Ro-ro,Bulk Ship |
| Truck Chassis: | ISUZU,HOWO,Dongfeng,FAW,JAC,JMC,FOTON |
| Material: | Carbon steel Q235A |
| Thickness: | side 4mm, buttom 4mm |
| Fuel: | Diesel type |
| Water Pump: | China Famous Brand |
| Suction Height: | 7 M |
| Cannon Range: | 28 M |
| Sprinkling Width: | 14 M |
| Operation video: | yes |
| User manual: | yes |
| Logo: | As customer's request |
| Warranty: | 1 year |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

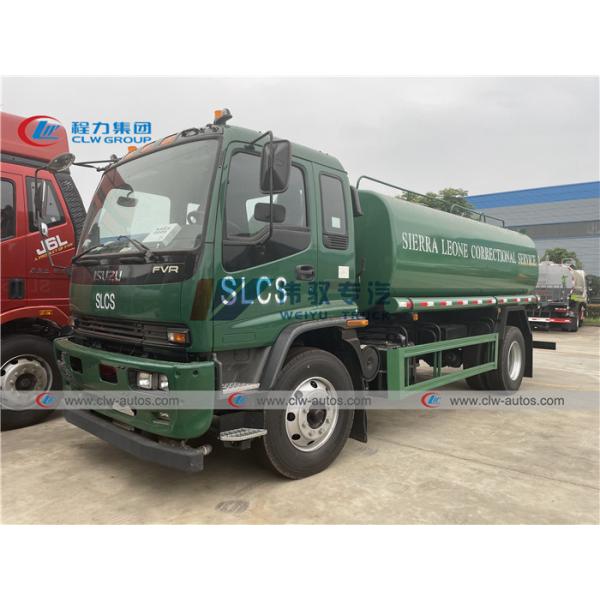

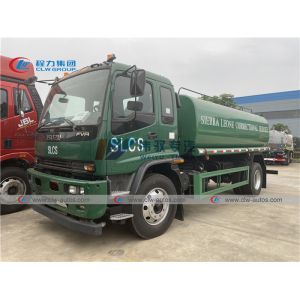

ISUZU 14tons Water Tanker Truck 14000Liters Watering Cart Sprinkler
Spray Water Bowser Truck
Product Description
1. Optional chassis brand of portable water truck : Dongfeng,
Sinotruk, FOTON/Forland, Faw, Shacaman,JAC,JMC
2. Material of portable water truck :High Tension Steel
Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water
truck :28M
5. Reliable and high quality water pump (Chinese Top brand or Italy
Brand)
6. Purpose: water sprinker for road cleaning, drinking water
transport
Specifications of 14000 liters water tanker truck
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | ISUZU FVR | |
| Curb weight(kg) | 6305 kg | ||
| Loading weight(kg) | 11705 kg | ||
| Gross weight(kg) | 18000 kg | ||
| Wheelbase(mm) | 5000 mm | ||
| Dimensions(mm) | 9900*2500*3400 mm | ||
| Front Loading Capacity (Ton) | 6.3 | ||
| Rear Loading Capacity (Ton) | 13 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 10.00-20 | ||
| Transmission | Manual type,6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
| Engine | Brand | ISUZU | |
| Fuel type | Diesel | ||
| Power(kw) | 177 kw | ||
| Horsepower(HP) | 240 HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro 4 | ||
| Upper | |||
| Water tank | Capacity(cbm/tons) | 14/14 | |
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 5 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
| Function | 1, Front Side Rear Sprinkling width≥14m | ||
| 2, Water cannon range≥28m | |||
| Remarks | 1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||

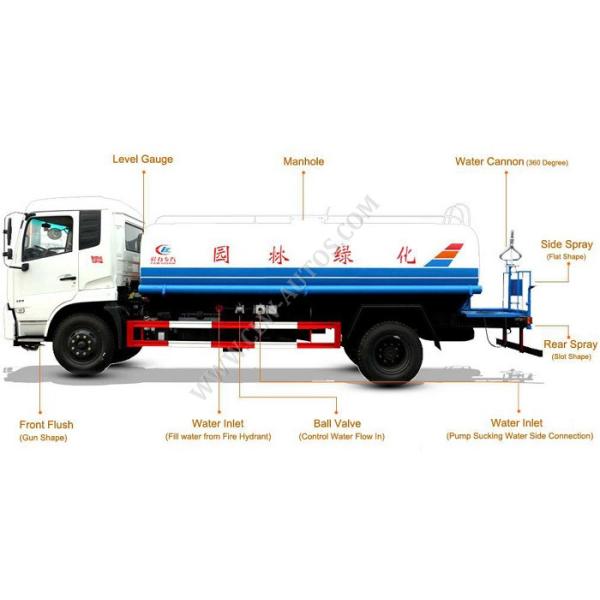

Water Truck Digram

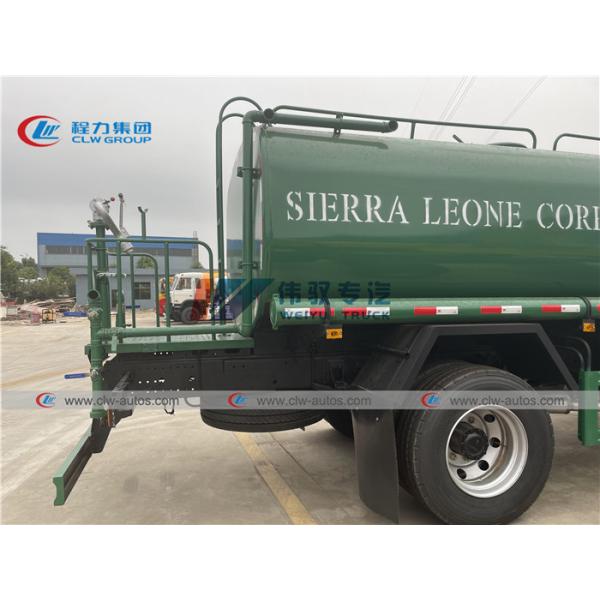

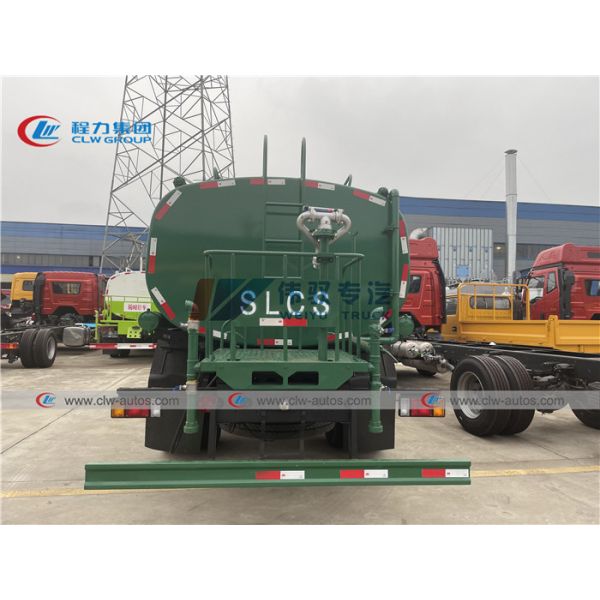

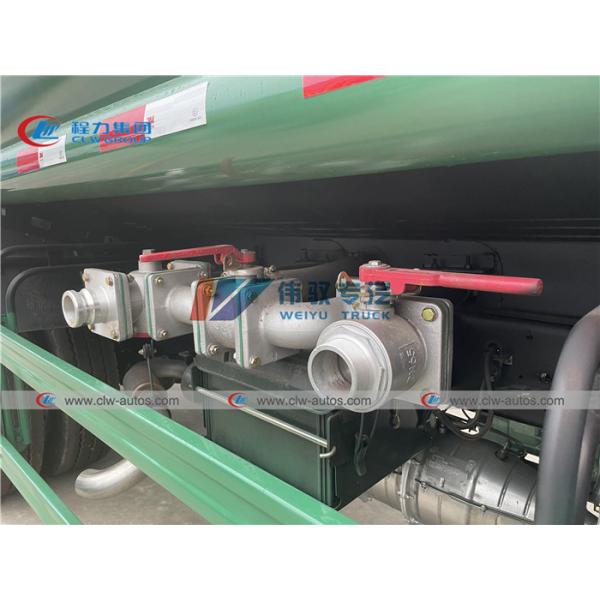

Truck details:
Working Diagram
Production Line for Water Tank Truck
Sales Service
①Pre-sales Service: Communicate with customers, analyze their
needs.
②Sales Service: Provide professional technical solutions, recommend
the right models accordingly.
③After-sales Service: For different products, we can quote the EXW,
FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with
different functions,you can contact us and tell your request.We
will recommend you suitable product.
Q2:: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered
water bowsers to many Africa and south-east Asian,south-American
countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
