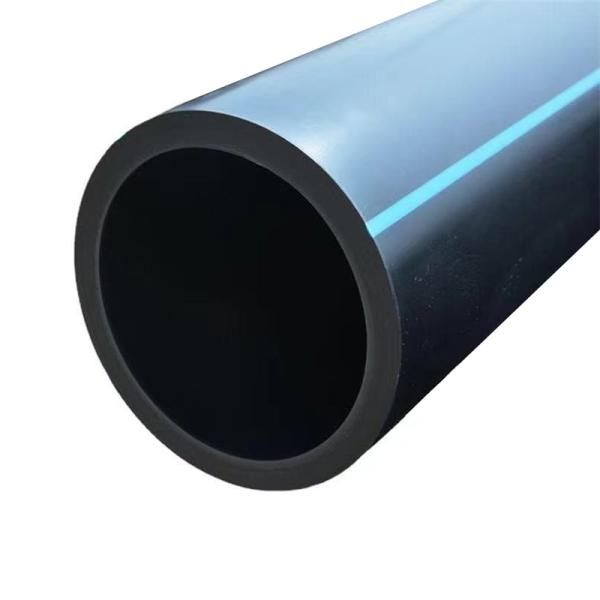

PE100 HDPE Water Supply And Drainage Pipe 1.5 Inch HDPE Pipe

Categories HDPE Water Supply Pipes
Brand Name: HAIYANG
Model Number: HM1-95
Certification: ISO9001,14001,45001
Place of Origin: China
MOQ: 10 Meter/Meters
Price: 0.5$/m(1~10m);0.43$/m(>1000m)
Supply Ability: 5000 Metric Ton/Metric Tons per Year
Packaging Details: 6m or 12m per piece
Specification: DN20-DN800mm
Color: Black or at request
Usage: Water supply
Raw material: PE
Size: Customized Size
Working pressure: 0.2mpa-2.5mpa
Sample: Provide Sample
Advantage: High Quality
Length: As costomer requirements
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PE100 HDPE Water Supply And Drainage Pipe 1.5 Inch HDPE Pipe

PE100 HDPE Water Supply And Drainage Pipe 1.5 Inch HDPE Pipe

----------------------------------------


Basic Info.


The main features of HDPE pipes are: good toughness and flexibility; small friction coefficient and strong passing ability; convenient construction, good chemical stability, long service life, suitable deflection, good resistance to rapid crack transmission, resistance to Low temperature, conform to the requirements of the times, "green" environmental protection.

Diameter(mm)Outer diameter(mm)Wall thickness
(mm)
Weight/m
(kg)
Weight/root(kg)Root/kmWeight/km(ton)
8098612.276.516712.77
1001186.115.19516715.87
1501706.322.814416720.05
2002206.430.619416732.4
2502746.840.225516742.59
3003267.250.832316753.94
3503787.763.240316767.3
4004298.175.548216780.48
4504808.689.357516795.86
5005329104.3669167111.72
6006359.9137.3882167147.29
70073810.8173.91123167187.54
80084211.7215.21394167232.8
90094512.6260.21691167282.4
1000104813.5309.32017167336.84
1200125515.3420.12758167460.69

Advantage


1. It has good low temperature impact resistance and can be safely affected in the temperature range of -20~40℃;

2. Has good weather resistance (including UV resistance) and long-term thermal stability;

3. Corrosion resistance, no need for anti-corrosion treatment, long service life;

4. The inner wall is smooth, the water flow resistance is small, the flow capacity is large, and the construction cost is saved;

5. Good wear resistance and wear resistance;


Details


Application


Urban water pipe network system

Replaceable cement, cast iron and steel pipes

Industrial raw material pipeline

Landscaping water supply network

Pipes for sewage discharge

agricultural irrigation pipes

marine pipeline

Seawater desalination pipeline


Certificate


Company Profile


Located in Jiangsu, with convenient water and land transportation. It is a comprehensive enterprise integrating research, development, design, application, production and sales. The company has production lines for PE water supply pipes with larger diameters, prestressed corrugated pipes, corrugated pipe production lines, PVC pipe production lines and other equipment. Specializing in the production of PE water supply pipes, prestressed corrugated pipes, HDPE corrugated pipes, plastic blind trenches, permeable pipes, etc. The products are mainly used in municipal administration, highways, railways, water conservancy, power, environmental greening and infrastructure construction, and are used in municipalities and expressways. Many national key projects such as railways and railways have been well received by engineering experts and users.




FAQ


Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.


Q: Where is your company?
A: We are located in Jiangsu, China.


Q: What is your warranty policy?
A: The product is guaranteed for two years from the date of shipment (or leaving the seller's factory depending on the terms).
It is also guaranteed that the product can be used for 50 years
