Ss 410 Stainless Steel Flat Bar Metal Plate Laser Cutting 12cr13 40*6*2000mm

Categories Stainless Steel Flat Bar
Brand Name: MITTEL
Model Number: 410 12Cr13
Certification: SGS ISO MTC
Place of Origin: China
MOQ: 200KGS
Price: 2.15 USD/KG
Payment Terms: L/C, T/T
Supply Ability: 50000KGS
Delivery Time: 14 Days after receive the deposit
Packaging Details: Wodden Pallet
Grade: 410
Application: Construction,Industry,Steel Grating,ships building industry,rudder shaft
Standard: ASTM,DIN,AISI,JIS
Shape: Falt Plate
Type: Flat
Length: 5.8-12m
Technique: Hot Rolled
Surface: BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Width: 12-300mm,10mm~500mm,20~2300mm
Thickness: 2mm~100mm
Price term: CIF CFR FOB EX-WORK
Stock: YES,In stock
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

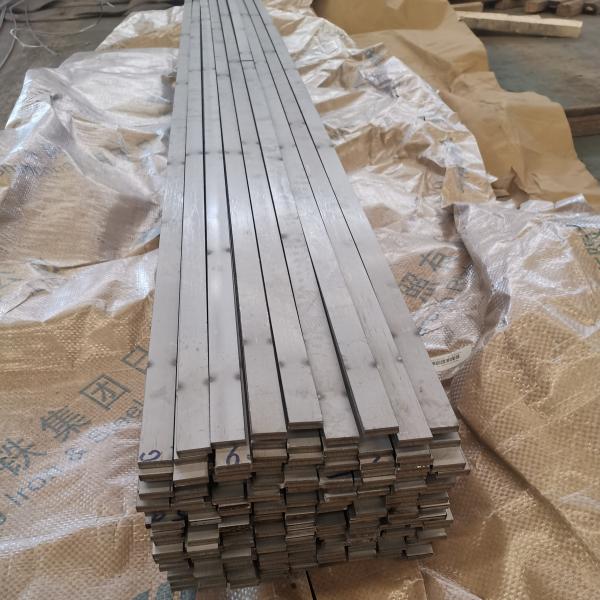

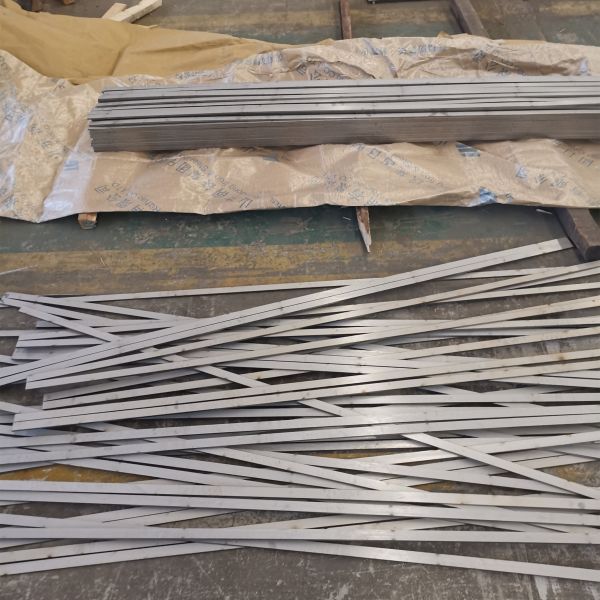

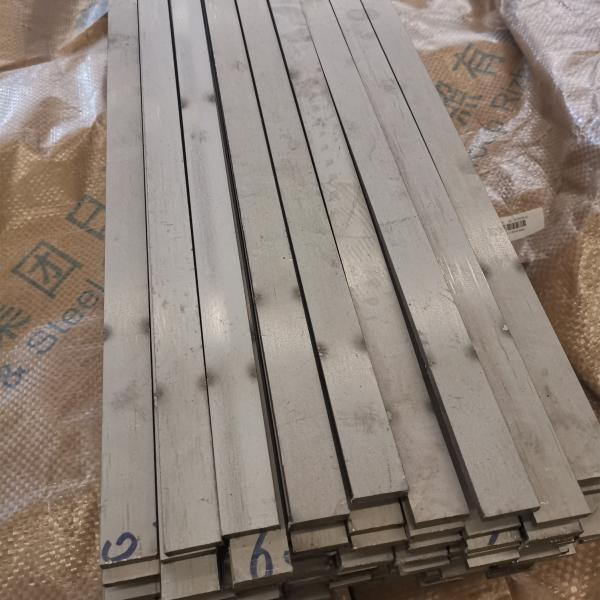

Ss 410 Stainless Steel Flat Bar Metal Plate Laser Cutting 12cr13 40*6*2000mm


410 stainless steel properties

Type 410 SS is a hardenable, martensitic stainless steel. It combines the superior wear resistance of high carbon alloys with the excellent corrosion resistance of chromium stainless. It features high strength, heat resistance, and good ductility. Good corrosion resistance in mild atmospheres, steam and mild chemical environments make it well suited for highly stressed parts. This grade of 410 stainless steel is magnetic in both the annealed and hardened conditions.


Our 410 stainless steel materials are used in aerospace, automotive, petrochemical and medical applications. Grade 410 SS is also used in manufacturing of products like springs and fasteners, as it can be machined after tempering or annealing. For free machining applications that do not require the higher corrosion resistance of 410, consider our grade of 416 stainless instead.

410 stainless steel Standard Inventory Specifications

UNS S41000 AMS 5504 AMS 5613 (Chemistry only)
ASTM A 240 ASTM A 276 ASTM A 493
ASTM F 899 ASME SA 240 B50991B

410 stainless steel Chemical Composition

Element

Percent by Weight

CCarbon0.15 max
MnManganese1.00 max
SiSilicon1.00 max
CrChromium11.50 - 13.50
CNickel0.75 max
SSulfur0.03 max
PPhosphorus0.04 max
410 Stainles Steel Physical Properties

The values reported below are typical for Type 410 alloy in the annealed condition.

  • Density: 0.276 lb/in3

  • Specific Gravity: 7.65

  • Melting Range: 2700-2790°F 1482-1532°C

  • Modulus of Elasticity: 29 x 106 psi (200 GPa)

410 stainless steel Coefficient of Thermal Expansion

Temperature Range

Coefficients

°C

°F

cm/cm/°C

in/in/°F

20-20068-39210.5 x10-65.9 x 10-6
20-60068-111211.6 x 10-66.5 x 10-6

410 stainless steel Thermal Conductivity

Temperature Range

W/m·K

Btu/(hr · ft · °F)

°C

°F

100212(0.249)14.4

410 stainless steel Specific Heat

  • .11 Btu/lb.·°F

410 stainless steel Electrical Resistivity

Temperature Range

microhm-cm

°C

°F

206856

410 stainless steel Mechanical Properties and Yield Strength

Typical Annealed Properties

Hardening Response HRC

HRB

0.2% Offset
Yield Strength
Ksi (MPa)

Tensile Strength
Ksi (MPa)

Elongation, Percent in 2" (51 mm)

82-9630 (205) - 42 (290)65 (450) - 74 (510)20 -3438-45

410 stainless steel Common Trade Names

  • ATI 410 (™ Allegheny Technologies)

  • Alloy 410

  • AISI Type 410

410 stainless steel Common Applications

  • Aerospace structures

  • Automotive exhausts, manifolds and high temperature engine components

  • Medical instruments and devices

  • Petro-chemical applications

  • Cutlery, kitchen utensils

  • Flat springs

  • Hand tools
