| Categories | Color Sorter Machine |
|---|---|
| Brand Name: | EFORK |
| Certification: | CE/CAS/EPA |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | us dollar 6600-7790USD |
| Payment Terms: | T/T, L/C |
| Delivery Time: | 25 |
| Power: | electric |
| Operation manner: | seated |
| Rated capacity: | 1000kg/1500kg |
| Wheel type: | rubber/Polyurethane |
| Lifting height: | 3000-4500mm |
| Weight including battery: | 1700kg |
| Battery type: | Lead-Acid |
| Driving brake: | hydraulic+electromagnetic |
| Fork dimension: | 35/100/1070mm |

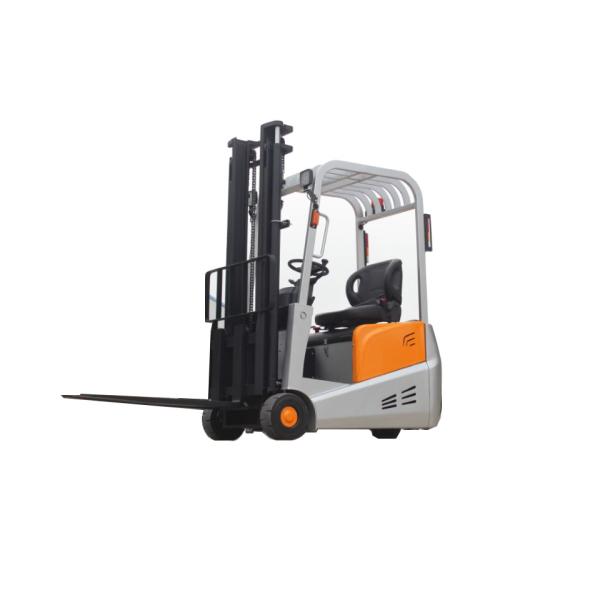

Counterbalance 3 Wheel Electric Forklift Truck 3 Wheeller
Product discription
| 1.1 | model number | CPD10A-30 | CPD15A-45S | |
| 1.2 | power | electric | electric | |
| 1.3 | operation manner | seated | seated | |
| 1.4 | rated capacity | Q(Kg) | 1000 | 1500 |
| 1.5 | load center | C(mm) | 500 | 500 |
| 1.6 | front overhang | X(mm) | 196 | 196 |
| 1.7 | wheelbase | Y(mm) | 1130 | 1130 |
| 2.1 | weight(including battery) | kg | 1700 | 2150 |
| 3.1 | wheel type front/rear | rubber/pu | rubber/pu | |
| 3.2 | front wheel | ∅×w(mm) | ∅230×75 | ∅230×75 |
| 3.3 | rear wheel | ∅×w(mm) | ∅305×127 | ∅305×127 |
| 3.4 | front wheeltread | mm | 752 | 752 |
| 4.1 | lowered mast height | h1(mm) | 2035 | 2100 |
| 4.2 | free lifting height | h2(mm) | 0 | 1535 |
| 4.3 | lifting height | h3(mm) | 3000 | 4500 |
| 4.4 | Max. mast height | h4(mm) | 3918 | 5455 |
| 4.5 | overhead guard height | h13(mm) | 1930 | 1930 |
| 4.6 | lowered mast height | h(mm) | 35 | 35 |
| 4.7 | overall length | l2(mm) | 1587 | 1587 |
| 4.8 | overall width | b1(mm) | 850 | 850 |
| 4.9 | fork dimension | s/e/l(mm) | 35/100/1070 | 35/100/1070 |
| 4.10 | fork adjustment | b5(mm) | 210-566 | 210-566 |
| 4.11 | ground clearance | m2(mm) | 35 | 35 |
| 4.12 | stack aisle width,pallet1000×1200(1200 side across fork) | Ast(mm) | 2931 | 2931 |
| 4.13 | min.turning radius | Wa(mm) | 1425 | 1425 |
| 5.1 | travel speed (unload/load) | km/h | 5.2/5 | 5.2/5 |
| 5.2 | lifting speed (unload/load) | m/s | 0.135/0.095 | 0.135/0.090 |
| 5.3 | lowering speed (unload/load) | m/s | 0.085/0.120 | 0.085/0.120 |
| 5.4 | max. gradeability(unload/load) | ％ | 8/6 | 8/6 |
| 5.5 | driving brake | hydraulic+electromagnetic | hydraulic+electromagnetic | |
| 6.1 | drive motor power | kw | AC 2.5 | AC 2.5 |
| 6.2 | lift motor power | kw | DC 2.2 | DC 2.2 |
| 6.3 | battery voltage/capacitance | V/Ah | 24V/270Ah | 24V/300Ah |
| 6.4 | charger | V/A | 24V/40A | 24V/40A |
| 7.1 | drive control mode | AC | AC |
Detailed images
Packing&delivery
Certifications
Our service
FAQ
1. How to place an order?
A:Tell us your detail requirements by email or on Trademanager or
Skype:efcc3288667 ,We will send you our offer in 24 hours.
If ok, please send us your purchase order, or you can ask us to
send you a proforma invoice for your order.
2. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.
3. Are you Factory?
A: Yes.
4. Can you send the machine to my factory in other city to load the
container?
A: Yes, please tell us the detail address, we can arrange to send
your factory in time.
5. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.
6. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give
reasonable discounts.
7. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height
etc.) by email or on Trademanager or Skype, please send us
your purchase order,or you can ask us to send you a proforma
invoice for your order.
8. How could I pay them?
A: We accept Western Union (for parts order, order value less than
$2500); T/T(bank transfer,order value at least $2000); L/C
(Irrevocable LC at sight,order value at least $10000 )
9. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on your products! We provide
OEM/ODM service.
|
