Galvanized Roofing Sheet Roll Forming Machine

Categories	Steel Roofing Sheet /Wall Panel Roll Forming Machine
Product Name:	Galvanized Roofing Sheet Roll Forming Machine
Raw Material:	PPGI Sheet
Thickness Range:	0.3-0.8mm
Machine Power:	4kw+3kw
Machine Weight:	About 5 Tons
Warranty:	12 Months
Afer-Sales Service:	Engineer Is Availble to Overseas
Speed:	5-12m/Min
Trademark:	NEXUS MACHINERY
Transport Package:	Plastic Film & Steel Wire Fixed
Specification:	5500mm1500mm1500mm(LWH)
Origin:	China
HS Code:	8455221000
Port:	Tianjin, China
Supply Ability:	30 Sets / Months
Payment Terms:	L/C, T/T, D/P, Western Union, Paypal, Money Gram
Tile Type:	Colored Steel
Certification:	CE, ISO
Condition:	New
Customized:	Customized
Usage:	Roof, Wall
Transmission Method:	Electric

Contact Now

Add to Cart

Company Info.

Cangzhou Nexus Machinery Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Galvanized Roofing Sheet Roll Forming Machine

Product Description

Customer Question & Answer

Ask something for more details (0)

Galvanized Roofing Sheet Roll Forming Machine

The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

2. Profile Drawings for Reference:

3. Technical parameters for Galvanized Roofing Sheet Roll Forming Machine :

A. General

Suitable Material	HRB60 or equivalent
Material Thickness	0.2-0.6 mm
Dimension	About 7.21.31.1m(LWH) , as per the drawing
Length of the Sheet	You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.
Cutting	Automatically stop and cutting when it comes to the set length.

B. Components Details

Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-16, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel.
Shaft Material	Treating process: tempering- finish turning, high rigidity, hard to deform.
Cutting Blade Material	Cr12, hardness HRC60-62.
Cutting Blade Material	Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power	380V, 50 Hz, 3 phase or according to your need.
Screen	7 inch touch screen, easy to operate.
PLC	Delta DVP 14ES
PLC	well-adapted to various conditions, such as moisture, electromagnetic disturbance.
Frequency Converter	Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
Length Measurement Device	Omron, made in Japan.
Length Measurement Device	It features with high accuracy and stability.

4. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

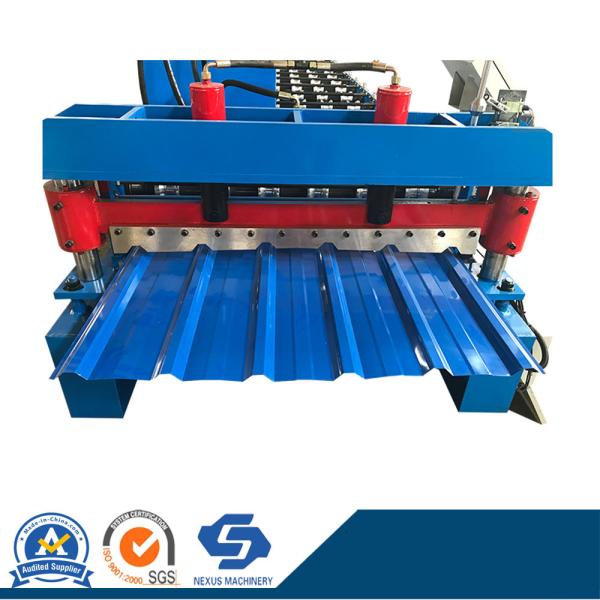

5. Photos of Galvanized Roofing Sheet Roll Forming Machine for Reference:

ABOUT US:
Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
