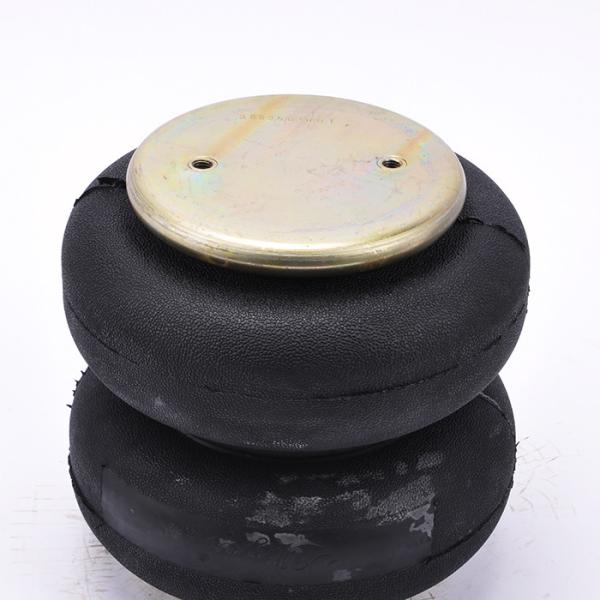

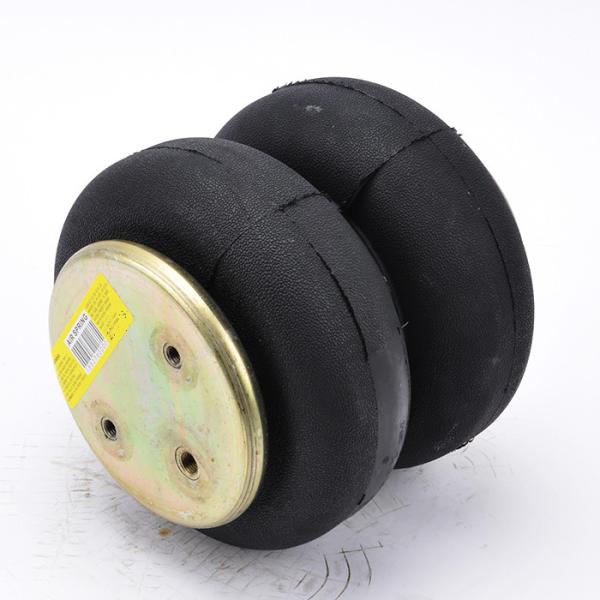

W01-M58-7679 Firestone Air Bags Goodyear 2B9-269 Gart T291/2B For knife Spring Actuator

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 2B7679
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangzhou, China
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: W01-M58-7679
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Air Inlet: 1/4NPT
Top Plate Hole/Stud: 2xm10X1.5
Bottom Plate Hole/Stud: 2xm10X1.5
Top Plate Dia: 160 mm
Bottom Plate Dia: 160 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 33*33*22 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: Yes
Type: Suspension Spring
N.W.: 3.5 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-M58-7679 Firestone Air Bags Goodyear 2B9-269 Gart T291/2B For knife Spring Actuator

W01-M58-7679 Firestone Air Bags Goodyear 2B9-269 Gart T291/2B For KNIFE SPRING ACTUATOR


AIRSUSTECH 2B7679 Cross others OEM


OEM References NumbersReferences Numbers

Firestone Part Number:W01-M58-7679,

Firestone Part Number:W01M587679,

Firestone Part Number:W01 M58 7679

Firestone bellows Number: :20C2


SchmitzTrailer : 016808

Dunlop Part Number: S0 9280,

Dunlop Part Number: S09280

Granning: 15670

Goodyear Part Number: 2B9-269;

Goodyear Part Number: 2B9 269;

Goodyear Part Number: 2B9269

AIRSUSTECH 2B7679
Gart: T291/2B
R.O.R/Meritor : 21221356
Weweler : US 07394F

Firestone 20F2
Firestone W01-M58-7679
N.W.:3.67 KG
WEWELER US 07394F

SCHMITZ 016 808

GRANNING 15670
ROR 2122 1356
DAIMLER TAS A 946 328 21 01

WEWELER US 07394C

WEWELER US 07394



AIRSUSTECH 2B7679 Specifications and Technical Data


Firestone Part Number: W01-M58-7679 / W01M587679 / W01 M58 7679

Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM10X1.5

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Part Number: 2B9-269

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Part Number: 4426

Bellows NO.: 20-2

Order Number: W01-M58-7679

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº


BrandSingle ProductName
air transport20.2B220.3CAIR FREN 20.2B220.3C boot, air suspension
Harvest2B92250GOODYEAR 2B92250 boot, air suspension
Harvest2B9287GOODYEAR 2B9287 boot, air suspension
Harvest578923206GOODYEAR 578923206 boot, air suspension
Harvest5789232250GOODYEAR 5789232250 boot, air suspension
Airtek113002AIRTECH 113002 boot, air suspension
Airtek113011AIRTECH 113011 boot, air suspension
Airtek140013AIRTECH 140013 boot, air suspension
Airtek2B2203AIRTECH 2B2203 boot, air suspension
Airtek2B225AIRTECH 2B225 boot, air suspension
DunlopSO9203DUNLOP SO9203 boots, air suspension
DunlopSO9208NBDUNLOP SO9208NB boots, air suspension
Scania1319761SCANIA 1 319 761 boot, air suspension
Scania1387283SCANIA 1 387 283 boot, air suspension
Phoenix2B 12 R-3PHOENIX 2B 12 R-3 boots, air suspension
PhoenixSP 2 B 12 R-5PHOENIX SP 2 B 12 R-5 boot, air suspension
RockwellMLF7036ROCKWELL MLF7036 boot, air suspension
Singapore Armed Forces4 229 1004 00SAF 4 229 1004 00 boot, air suspension
Singapore Armed Forces4229100500SAF 4229100500 boot, air suspension
Singapore Armed Forces45980054192SAF 45980054192 boot, air suspension

Description convolution/ convoluted air spring


The winding air spring is the bellows GUOMAT air spring. The bellows air spring has one, two or three loops in the flexible member. The dual-compound air bags are commonly used as lift springs or shafts and trailers for air springs, as well as for industrial and commercial applications and devices for actuators or insulators. The specifications of your 2b9-269 will vary, but the double fold's GUOMAT bag can be found in the crimp design and the sleeve bellows. They will provide similar features and functions, but the sleeve type of the maintainer and the maintainer and the external interchangeable parts weave the final permanent connection between the rings.

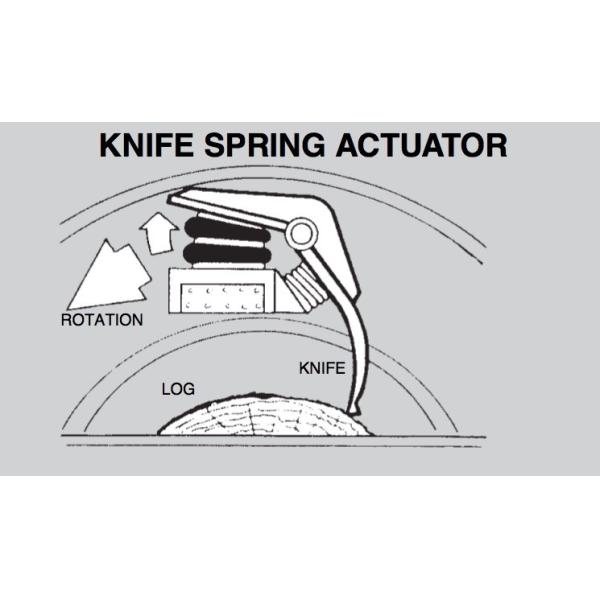

AIRSUSTECH 2B7679 air spring for KNIFE SPRING ACTUATOR:
