| Categories | Automatic Door Bottom Seals |
|---|---|
| Brand Name: | BHMFT |
| Model Number: | BH-M015A |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | EXW price US$ 15-25/ set |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets per week |
| Delivery Time: | 7-10 days after receive the payment |
| Packaging Details: | each one packed by a PE bag, 10 sets in a carton, for length 915mm, carton size: 105*20*10cm, gross weight is about 13kgs per carton. |
| Shell Materials: | 6063 Alumium Alloy |
| Strips Materials: | Silicone Rubber seals |
| Accessories: | 201 Stainless Steel (including side plate and screws) |
| Type: | Concealed type with side edge |
| Size: | 25*44-45mm |
| Length: | can do 650-1500mm |
| Stock item Length: | 800mm, 915mm and 1000mm, other length can do customized |
| Available Cut Length: | 800mm- can cut to 700mm, 915mm- can cut to 800mm, 1000mm- can cut to 900mm |

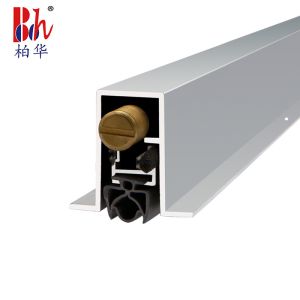

Heavy Duty Automatic Door Bottom Seals Concealed Aluminium Weatherstrips for Fireproof Door Raven RP70 Si
Features:
This item is similar as RAVEN RP70Si, it has the side edge on the bottom, can screw fix it from the door bottom, suitable for the metal door which no need to make the through groove in the door, cannot see any other things except the copper bolt, it is more invisiable. This Heavy Duty design makes it more fit the heavier door, can be used for fireproof door.
Specifications:
| Item No.: | BH-M015A |
| Min/Max Gap: | 3mm to 15mm |
| Finish: | Clear Anodised |
| Fixing: | Concealed Screw Fix, Fixing holes are pre-slotted |
| Seal: | Grey Silicone Rubber |
| Fixed Part: | Stainless Steel Screws, Nylon side plate |
| Size can do: | 650-1500mm |
| Regular length: | 800mm, 915mm, 1000mm |
| Regular length can cut length: | 800mm - cancut to 700mm, 915mm - can cut to 800mm, 1000mm - can cut to 900mm. |




|
