| Categories | Lebus Sleeve |
|---|---|
| Brand Name: | LBS |
| Model Number: | LBSS Series |
| Certification: | CCS |
| Place of Origin: | Shijiazhuang Hebei China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Pieces Per Month |
| Delivery Time: | General Order 15-30 Days |
| Packaging Details: | Export Standard Wooden Case |
| Product name: | lebus Sleeves |
| Material: | Carbon steel |
| Groove Type: | Lebus Grooves |
| Surface Treatment: | Spray Zinc Rich Primer |
| Surface Color: | Gray |
| Connection Type: | Welded or Bolted |
| Dia.of rope: | 20mm |
| layers: | 2~20 Layers |
| Use: | Assembly winch |
| Grooving Machining: | CNC Machining |
| Company Info. |
| Hebei Junke Machinery Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
| name | Wire Rope Smooth Winch Drum With Carbon Steel 20mm Dia Lebus Grooved Sleeve |
| about grooving | helical or LBS grooving |
| drum diameter and length | the sleeve must according to the drum parameter |
| rope diameter and length | the grooving desiged by the rope parameter |
| Material | your required material |
| installation | bolted or welding |
| more information | the detailed drawing if possible |
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
Split-type grooved sleeves
Integrated type grooved sleeves

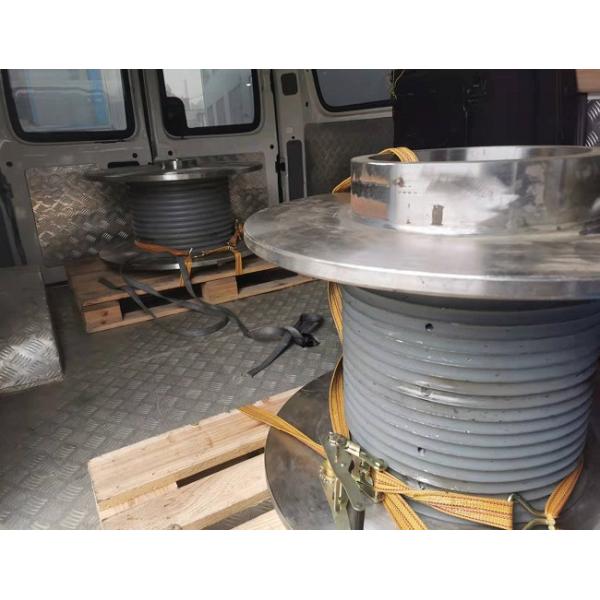

the complete drum with flanges,machine-finished
the groove is cut directly into the body of the drum
according to customers' requirements,the flanges are either welded or screw-bolted
the groove is available as either LBS-groove or helical-groove
groove geometry is determined by rope construction,diameter and length and by application.
the rope groove system is formed into a sleeve with groove shape, also known as LEBUS sleeve. After finishing, it is cut into two pieces along the direction of 180 degrees, and finally welded with the drum body. This method can reduce machining time and improve machining efficiency. When the rope groove needs to be replaced for a long time, the outer sleeve can be replaced directly, saving 500% of the cost
Early introduction the advanced technics form domestic and foreign,after years R&D,our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010.Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.
|
