| Categories | Lebus Sleeve |
|---|---|
| Brand Name: | LBS |
| Model Number: | LBSS Series |
| Certification: | CCS |
| Place of Origin: | Shijiazhuang Hebei China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Pieces Per Month |
| Delivery Time: | General Order 15-30 Days |
| Packaging Details: | Export Standard Wooden Case |
| Product name: | lebus Sleeves |
| Material: | Q235/Q355B/Q355D/Q355E |
| Groove Type: | Lebus Grooves |
| Surface Treatment: | Spray Zinc Rich Primer |
| Surface Color: | Gray |
| Connection Type: | Welded or Bolted |
| Dia.of rope: | 2~80mm |
| layers: | 2~20 Layers |
| Use: | Assembly winch |
| Grooving Machining: | CNC Machining |
| Company Info. |
| Hebei Junke Machinery Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Materials of the sleeves: Low-carbon steel 20#,16Mn,Q235B,Q355B/D/E

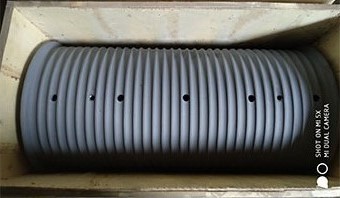

| name | Steel Q345B Wire Rope Winch Smooth Drum Lebus Grooved Sleeve |
| about grooving | helical or LBS grooving |
| drum diameter and length | the sleeve must according to the drum parameter |
| rope diameter and length | the grooving desiged by the rope parameter |
| Material | your required material |
| installation | bolted or welding |
| more information | the detailed drawing if possible |
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
Split-type grooved sleeves
Integrated type grooved sleeves
the complete drum with flanges,machine-finished
the groove is cut directly into the body of the drum
according to customers' requirements,the flanges are either welded or screw-bolted
the groove is available as either LBS-groove or helical-groove
groove geometry is determined by rope construction,diameter and length and by application.
The LBS split-sleeve system is composed of a pair of outer shells that are bolted or welded onto a smooth drum to provide agrooving pattern.Either helical or LBS parallel grooves can be carved into the sleeves.
Early introduction the advanced technics form domestic and foreign,after years R&D,our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010.Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.
