| Categories | Hydraulic Hose Fitting |
|---|---|
| Brand Name: | YADE |
| Model Number: | JIC hose fittings |
| Place of Origin: | Zhejiang, China |
| MOQ: | 100 Pieces |
| Price: | be negotiation |
| Product name: | JIC female fittings |
| Model: | JIC standard fittings |
| Material: | stainless steel or carbon steel |
| suitable medium: | water / oil / gas |
| Technics: | hot forge ,CNC machine |
| Surface treatment: | Trivalent zinc plated |
| Application: | industry excavator |
| Assemble way: | crimp,lock on |
| Size: | 1/4"-2" |
| Type: | Hydraulic Filters |
| Package Type: | Neutral export package: carton box with plastic bag then into woodem plastic |
Product Name

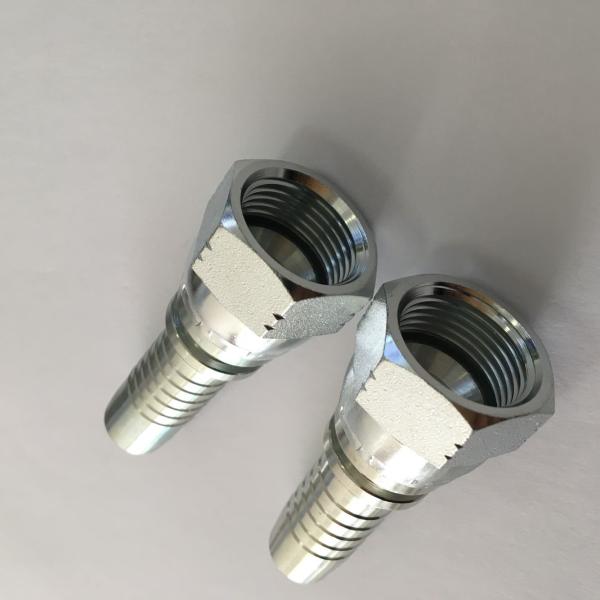

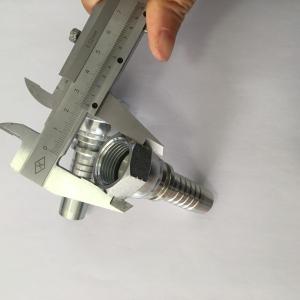

26711 JIC Female Hydraulic Pipe Fittings Reusable Hydraulic Hose Fittings
| PART NO. | THREAD E | DN | DASH | A | C | S1 |
| 26711-04-03 | 7/16"*20 | 5 | 3 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16"*20 | 6 | 4 | 15 | 9 | 15 |
| 26711-05-04 | 1/2"*20 | 6 | 4 | 15.5 | 9.5 | 17 |
| 26711-05-05 | 1/2"*20 | 8 | 5 | 15.5 | 9.5 | 17 |
| 26711-05-06 | 1/2"*20 | 10 | 6 | 15.5 | 9.5 | 17 |
| 26711-06-04 | 9/16"*18 | 6 | 4 | 15.5 | 10.5 | 19 |
| 26711-06-05 | 9/16"*18 | 8 | 5 | 15.5 | 10.5 | 19 |
| 26711-06-06 | 9/16"*18 | 10 | 6 | 15.5 | 10.5 | 19 |
| 26711-06-08 | 9/16"*18 | 12 | 8 | 16 | 10.5 | 19 |
| 26711-08-06 | 3/4"*16 | 10 | 6 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4"*16 | 12 | 8 | 18 | 11 | 24 |
| 26711-08-10 | 3/4"*16 | 16 | 10 | 19.5 | 11 | 24 |
| 26711-10-08 | 7/8"*14 | 12 | 8 | 18.5 | 13 | 27 |
| 26711-10-10 | 7/8"*14 | 16 | 10 | 20 | 13 | 27 |
| 26711-10-12 | 7/8"*14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16"*12 | 12 | 8 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16"*12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16"*12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16"*12 | 25 | 16 | 23 | 15 | 32 |
| 26711-14-12 | 1.3/16"*12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16"*12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16"*12 | 25 | 16 | 23 | 16 | 41 |
| 26711-16-20 | 1.5/16"*12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8"*12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8"*12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1.7/8"*12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8"*12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-24T | 2.1/2"*12 | 40 | 24 | 27 | 23.5 | 75 |
| 26711-32-32T | 2.1/2"*12 | 50 | 32 | 27 | 23.5 | 75 |
hydraulic hose fittings are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
|
