| Categories | 4K HDMI Extender |
|---|---|
| Brand Name: | CANEOV |
| Model Number: | CVHDES120 |
| Certification: | CE,ROSH |
| Place of Origin: | CHINA |
| MOQ: | 100 PCS |
| Price: | $1 to $100 PC |
| Payment Terms: | L/C,T/T, Western Union,Paypal,etc. |
| Supply Ability: | 50000 PCS PER MONTH |
| Delivery Time: | 7 - 10 DAYS |
| Packaging Details: | Color box |
| Resolution: | 4Kx2K |
| Size: | 94*84*24mm |
| Distance: | Over 120m by CAT5E/6 Cable |
| Power adapter: | DC5V/1A |
| Weight: | 223g*2 |
| Max bandwidth: | 340MHz |
| Max baud rate: | 3.4Gbpsx3 |
| Applicable place: | Security monitoring, video conference |

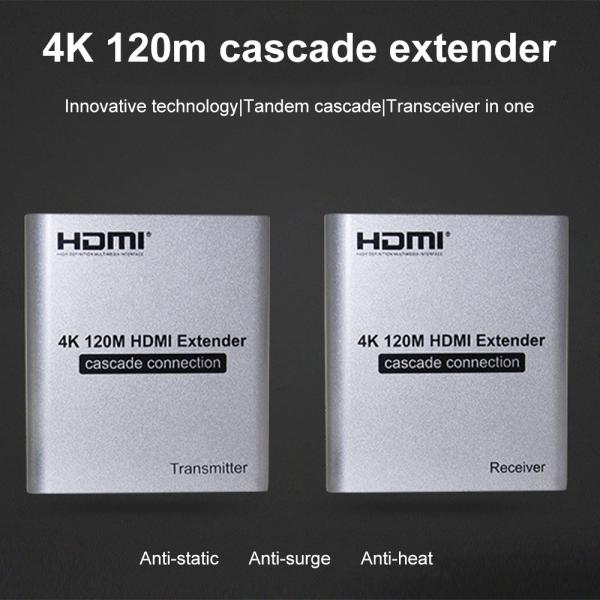

4K 120m HDMI Extender Multi-receiver cascade transmission Ethernet Transmitter 1080P
The 120-meter 4K extender supports 4K resolution. One-to-one connection can extend the video signal by 120 meters. It supports one-to-one, one-to-many cascaded transmission, transceiver integration, one transmitter can connect multiple receivers without going through a switch. easy to use.
| HDTV Resolutions | 4K/1080p/720p/576p/576i/480p/480i |
| Audio | DTS/doby/LPCM |
| IR remote control | 38kHz NEC |
| HDMI Version | 1.4v |
| HDCP Version | 1.3v |
| Power adapter | Input:100V-240V(50-60Hz) Output:5V/1A |
| Max bandwidth | 340MHz |
| Max baud rate | 3.4Gbpsx3 |
| Input video signal | 0.5~1.5Volts p-p |
| Output DDC signal | 5Volts p-p (TTL) |
| Input HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| Output HDMI cable distance | ≤15m AWG26 HDMI standard cable |
| TX Max working current | 350mA |
| RX Max working current | 200mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5% to 90%RH (No Condensation) |






|
