| Brand Name: | CHN-TOP |
| Model Number: | ZT-ZKHJ180 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SETS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, D/A, MoneyGram |
| Supply Ability: | 50 SETS/MONTH |
| Delivery Time: | 5-60 WORKING DAYS |
| Packaging Details: | WOODEN CASE |
| Model No.: | ZT-ZKHJ180 |
| Brand: | CHN-TOP |
| Product name: | Vacuum brazing machine |
| Application: | PCD PCBN DIAMOND TOOLS BRAZING |
| Vacuum process: | clean, fixiing, drying and brazing |
| Company Info. |
| CHN-TOP SCI&TECH CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
PCD BLANK TOOLS EQUIPMENT TOOLS MACHINIING PCD BLANK PCD TOOLS VACUUM BRAZING MACHINE

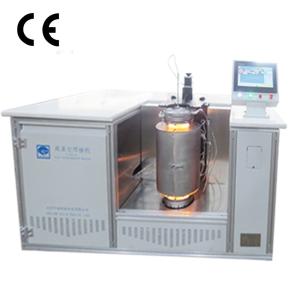

Vacuum Brazing machine is excellent for brazing ultra-hard material(PCD /PCBN/ MD/ ND /CVD), TUNGSTEN carbide, ceramics and others;
It's fully automatic and very easy to operate at high efficienty

| Dimensions | 1600*950*900mm( L*W*H) |
| Power supply | 3 phases-380V-15KW |
| Chamber | Quartz Glass Tube |
| Chamber size | ¢180*500(L)*T4(mm) |
Brazing Capability | For example: CNGA1204 approx 350pcs/cycle |
| Max Temperature | 950℃ |
| Limiting Vacuum rate | 10-6 Torr (10-4 Pa) |
| Vacuum Rate | 10-5 Torr (10-3 Pa) |
| Heating source | 18 pcs halogen tubes |
| Chilling | Water |




Brazing Samples


CHN-TOP is the company offer comprehensive solutions for diamond tools making




|
