| Categories | Transformer Coil Winding Machine |
|---|---|
| Brand Name: | STT |
| Model Number: | GDY-1T |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 20 days |
| Packaging Details: | seaworthy packing |
| Machine name: | transformer coil winding machine |
| Application: | winding wire coil |
| Center heigth: | 1000mm |
| Shaft size: | 40x40x1200mm |
| Tailstock: | split type |
| Machine color: | as requested |
| Counter: | digital |
| Winding speed: | 0 ~ 200rpm |
| Company Info. |
| Suzhou Tronsing Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

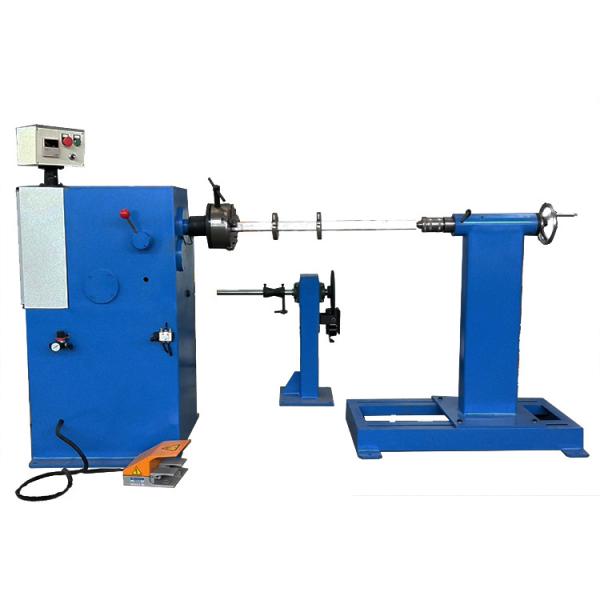

Semi Automatic Aluminium Copper Wire Winder Oil Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-1T
Transformer coil winding machine GDY-1T is for winding different specifications of copper or aluminum wire coils to make oil immersed transformer. This kind of coil winding machine is a simple winding machine. The coil winding machine is provided with a digital counter for showing the number of turns wound and the turning number can be preset. A potentiometer on the control board is used to adjust the winding speed. Foot pedal can be used to start and stop the machine. The rotating direction (forward/reverse) can be switched through the foot pedal.
Main Components of coil winding machine GDY-1T
1.Main frame
2.Gearbox
3.Tailstock
4.Winding shaft
5.Electric control cabinet
6.Foot pedal
Main Parameters of coil winding machine GDY-1T
Typical standard specifications of coil winding machine GDY-1T are shown below, however these can be easily modified as requested.
| Center Height: | 1000mm |
| Winding Shaft Size: | 40x40x1200mm |
| Flange Square Hole Size: | 40x40mm |
| Max. Winding Speed: | 200rpm |
| Speed Gear: | 2 pcs |
| Max. Winding Height: | 1000mm |
| Counting Range: | 0 ~ 9999.9 |
| Max. Capacity: | 1000KG |
| Motor Power: | 3KW |
| Total Weight: | 500 kg |
| Dimension(L*W*H): | 2800*700*1400mm |
|
