Dry Transformer Programmable Winding Machine Double Layers Copper Foil

Programmable Dry Transformer Double Layers Copper Foil Winding Machine

Introduction of Copper Foil Winding Machine

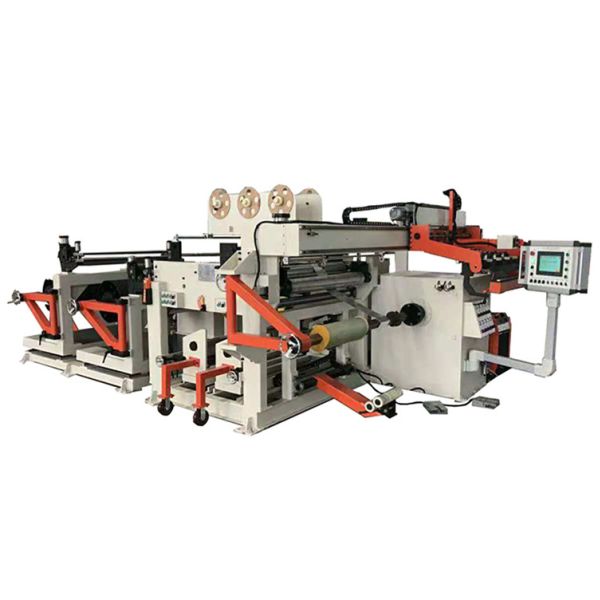

Programmable dry transformer double layers copper foil winding machine BRJ800-2 is a special equipment to wind foil coils for dry type transformer and other similar products. The copper foil winding machine can handle one or two layers of copper or aluminium foil strip and one or two layers of insulation paper. The foil and bus bar are welded with TIG process. Deburring is driven by pneumatic. Cleaning system is also driven by pneumatic. The shaft can be expand and extract for placing the copper foil material. There is pressing roller to press the foil to avoid its backward.

Quick Detail of copper foil winding machine

• TIG welding
• Pneumatic foil deburring
• Pneumatic foil cleaning
• Expanding mandrel
• Pressing roller
• Customized color

Main components of copper foil winding machine

1) Main iron frame

2) Automatic winding unit

3) Foil conductor decoiler

4) Insulation paper decoiler

5) End-fill strip holder

6) Cleaning device

7) Cutting unit

8) Foil deburring system

9) Edge alignment system

10) Automatic welding unit

11) Electronic control system

12) Pneumatic system

Technical Parameters of Foil Winding Machine

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.
