Home > Multi-Function Packaging Machines >

Candy 520mm Automatic Plastic Bag Packing Machine 4300ml 50bags / Min

Categories Granule Packing Machine
Brand Name: Shilong
Model Number: SLIV-520PE
Certification: CE
Place of Origin: Foshan
MOQ: Negotiable
Price: Negotiable
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Month
Delivery Time: 15-25/day
Packaging Details: 1400 ( L ) x 1000 ( W ) x 1500 ( H ) mm
Packing material: PE
Metering method: can be rotor pump vibrating disk blanking ect
Measuring range: 4300ml ( subject to actual materials )
Packing speed: 5 - 50 bags / min
Maximum width of roll film: 520mm
Bag size: (W): width 150 - 250mm ( W ) mm length 350mm , longitudinal seal : 10mm
Total power: 4kw
Power supply: 220V or 380V50 - 60HZ
Machine weight: 400kg
Machine size: 1400 ( L ) x 1000 ( W ) x 1500 ( H ) mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

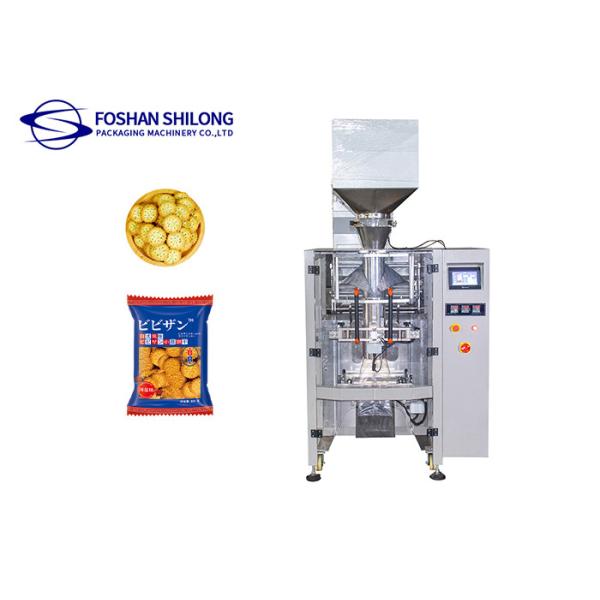

Candy 520mm Automatic Plastic Bag Packing Machine 4300ml 50bags / Min


Plastic Bag Candy Packaging Sealing Machine


Introduction


This packing machine is mainly used for packing powder and small granule items into sachet or small pouch. It is an automatic machine which including the functions of weighing, bag forming and filling and bag sealing. It can pack items such as coffee, snacks, nuts, salt, flour powder, sugar, spices, tea, beans, peanut, seeds, screws.


Advantage


1. The machine is featured with compact structure, durable, logical design and Precise.
2. It adopts light sensor control system, and is featured with reliable, stable performance.
3. Using VVVF, operation much more stable, low noise, with low malfunction.
4. It can finish automatically all processes, such as measuring, filling and bag marking.
5. With spring pressure knife principle, pneumatic cutting, 5 linking bags more stable.


Granule Packaging Machine Specification


Packaging MaterialsOPP / PE
Measurement methodIt can be equipped with electronic scale, screw metering machine, injection pump, rotor pump, vibrating disc feeding
Scope of applicationParticles , hardware , liquids , powders , pastes and other materials
Measuring range4300ml ( subject to actual materials )
Packing speed5 - 50 bags / minute
Maximum width of roll film520mm
Bag size( W ) : width 150 - 250mm( W )mm length 350mm , vertical seal : 10mm , horizontal seal : 15mm
Sealing categoryBack seal , gusset pillow bag
Total power4kw
Power supply220V or 380V50-60HZ
Air pressure and air consumption0.65Mpa 0.8m3 / min
Machine weight400kg
Machine size1400 ( L ) x 1000 ( W ) x 1500 ( H ) mm
Wooden box size1490 * 1260 * 1670
