| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Model Number: | GYXTA-4 |
| Certification: | Ce/ISO9001/Tlc |
| Place of Origin: | Sichuan, China |
| MOQ: | 20,000 Meters |
| Price: | Can be negotiable |
| Supply Ability: | 50000000m Per month |
| Delivery Time: | 5-8Days |
| Packaging Details: | Fumigated Wooden Tray |
| Application: | Communication |
| Type: | SM Fiber |
| Connection Structure: | Round wire |
| Core: | 4cores |
| Fiber Model: | G652D G657A1 G657A2 |
| Loose tube Material: | PBT(high quality） |
| Armored: | Aluminum wire and Plastic Composite Belt |
| Sheath Material: | PE |
| Length: | 2-4km/Drum or Customized |
| Packing: | Wooden drum |

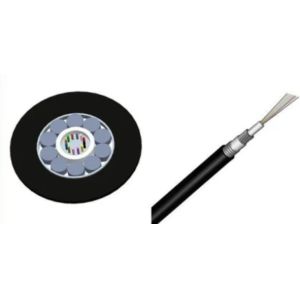

4 Cores Central Loose Tube Outdoor Fiber Optic Cable armored aluminum GYXTA
DESCRIPTION
Metal strength member, Central tube type, gelly filled,
Polyethylene(PE) sheath, Outer door optical fiber cable for
telecommunication
FEATURES
Excellent crush resistance performance and flexible performance
The out PE sheath provides good anti-UV radiation performance
Aluminum Belt Armor improves the moisture resistance of products
APPLICATIONS
Used for aerial and duct outdoor telecommunication.
PERFORMANCE
| Type | Max.Attenuation | Tensile strength | Crush resistance | Min.Bending radius(Dynamic) | |||
| 1310nm | 1550nm | Short term | Long term | Short term | Long term | ||
| GYXTA-4 | 0.36dB/km | 0.22dB/km | 1500N | 600N | 1000N | 300N | 20D |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on
cable industry . certified supplier for broadcasting and
communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network
, Video monitoring network , FTTH communication ad smart home
network .
3. Certificate:Factory got ISO9001:2015 quality management
certificate. ISO14001:2015 environmental management certificate and
OHSAS18001:2007 occupational health and safety management system
certificate
4. High-quality material:With strict supplier control and
raw-material inspection .make sure the product quality stable and
reasonable cost .offer high-quality fiber from well-know fiber
company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer
solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
|
