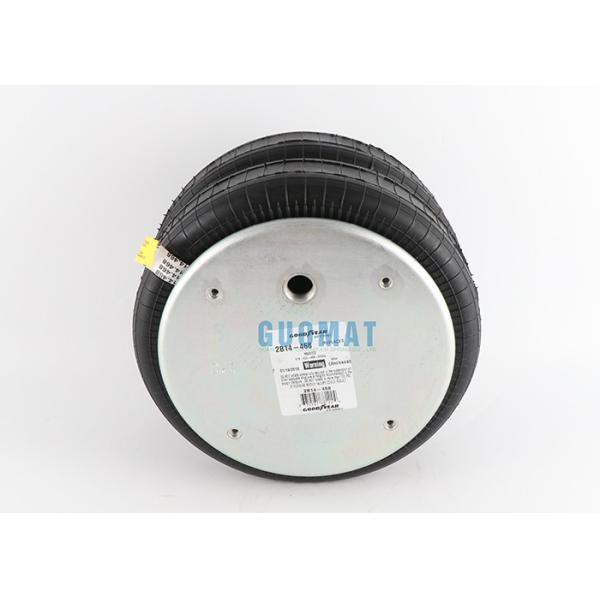

W01-M58-6377 Firestone Industrial Air Springs Bellows Number 21-2 Double Convolutions

Categories Industrial Air Springs
Brand Name: Goodyear
Model Number: 2B14-468 / W01-M58-6377
Certification: ISO/TS16949, ISO9001
Place of Origin: Mexico
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Stroke: 278 mm
Trademark: Goodyear
Transport Package: Carton
Specification: 38*38*22 cm
Origin: Mexico
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: W01-M58-6377
Type: Shock Absorber
N.W.: 9.1 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-M58-6377 Firestone Industrial Air Springs Bellows Number 21-2 Double Convolutions

W01-M58-6377 Firestone Industrial Air Springs Bellows Number 21-2 Double Convolutions


W01-M58-6377 Firestone Cross OEM


Firestone Parts NO.:WO1-358-6377

Firestone Parts NO.::WO1 358 6377

Firestone Parts NO.::WO13586377

Firestone Parts NO.:WO1-358-6378

Firestone Parts NO.::WO1 358 6378

Firestone Parts NO.::WO13586378

Firestone Parts NO.:W01-358-6377

Firestone Parts NO.::W01 358 6377

Firestone Parts NO.::W013586377

Firestone Parts NO.:W01-358-6378

Firestone Parts NO.::W01 358 6378

Firestone Parts NO.::W013586378


Firestone Parts NO.:WO1-358-6379


Firestone Parts NO.::WO1 358 6379


Firestone Parts NO.::WO13586379


Firestone Parts NO.:WO1-358-6378


Firestone Parts NO.::WO1 358 6378


Firestone Parts NO.::WO13586378


Firestone Parts NO.:W01-358-6379

Firestone Parts NO.::W01 358 6379

Firestone Parts NO.::W013586379

Firestone Parts NO.:W01-358-6378

Firestone Parts NO.::W01 358 6378

Firestone Parts NO.::W013586378

Firestone 22-1,


Goodyear Parts NO.:2B14-468 ;
Goodyear Parts NO.:2B14 468;
Goodyear Parts NO.:2B14468

Goodyear Bellow NO.578923353
Goodyear Flexible members No.: 578-92-3-353

ContiTech Parts NO:FD 530-22 CI 3/4 NPT

ContiTech Parts NO::FD530-22 CI 3/4 NPT

ContiTech Parts NO:FD 530-22

ContiTech Parts NO::FD530-22


W01-M58-6377 Firestone Technical parameters


Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Bottom Cover Plate :159 mm


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm


Cover Plate

Top Cover Plate Diameter: 287mm

Bottom Cover Plate Diameter: 287mm


Rubber Bellows

Rubber Bellows MAX Diameter: 406 mm

Rubber Bellows Natural Diameter : 320 mm

The Working Stroke : MIN 77 mm to MAX 355 mm

Maximum Height : 355mm

Minimum Height :77mm

Stroke Height : 278 mm


Bumper block / Buffer block

Without or With Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Design Height (mm)267
Load (at Design Height) at: 3 Bar (kN)16.7
Load (at Design Height) at: 5 Bar (kN)39.2
Load (at Design Height) at: 7 Bar (kN)41.1
Natural Frequency (@5 Bar)(fn(Hz)1.6
% of Isolation at Forced Frequency 7 Hz95.6
% of Isolation at Forced Frequency 13 Hz98.8
% of Isolation at Forced Frequency 25 Hz99.7

The usal kinds of Double Convolution Air Springs


Style 21-1 Two Ply


Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
Assembly weight (bead plate version, no bumper):8.3kg.
Force to collapse to minimum height (@ 0 BAR):156 N.
