W02-358-3000 Firestone Air Springs Small Sleeve Rubber Bags For Automatic Conveyor Machine

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: G3000
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangzhou, China
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Plate Diameter: 74.5 mm
Air Inlet: 1/8-27 nptf
Top Plate Hole/Stud: 5/16-18unc
Bottom Plate Hole/Stud: 5/8-11unc
Top Plate Dia: 74.5 mm
Bottom Plate Dia: 61.2 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 12*9*9 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Material: Rubber and Iron
Position: Front and Rear
OEM: W02-358-3000
Type: Suspension Spring Bags
N.W.: 0.30 Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

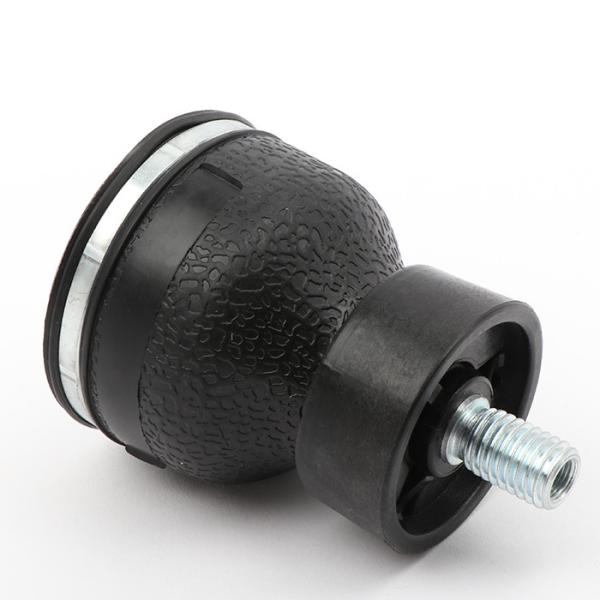

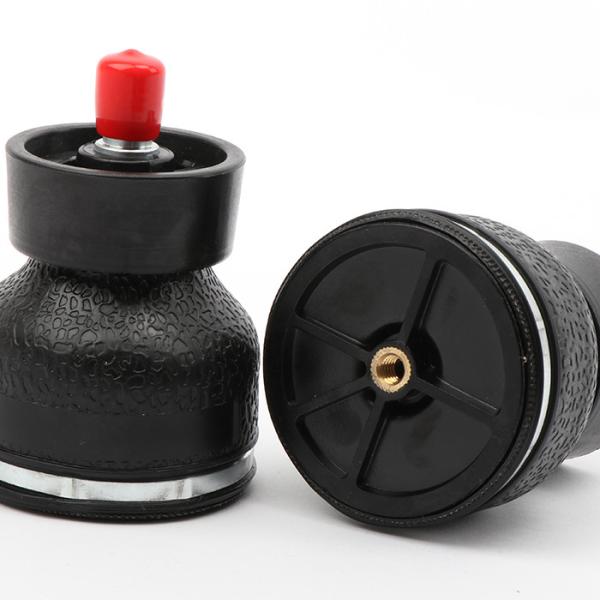

W02-358-3000 Firestone Air Springs Small Sleeve Rubber Bags For Automatic Conveyor Machine

W02-358-3000 Firestone Air Springs Small Sleeve Rubber Bags For Automatic Conveyor Machine


AIRSUSTECH G3000 Cross others OEM


Manufacturer :AIRSUSTECH

Manufacturer Part Number :AIRSUSTECH G3000


Cross to :


Firestone Bellows Number :1M1A-0

Firestone Bellows Number :1M1A 0

Firestone Bellows Number :1M1A0


Firestone Bellows Number :1M1A-O

Firestone Bellows Number :1M1A O

Firestone Bellows Number :1M1AO


Firestone Part Number :W02-358-3000

Firestone Part Number :W02 358 3000

Firestone Part Number :W023583000


Firestone Part Number :WO2-358-3000

Firestone Part Number :WO2 358 3000

Firestone Part Number :WO23583000


AIRSUSTECH G3000 Size:


Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 1pcX5/16-18unc

Screw Center Distance of Top Cover Plate : in the middle

Bottom Cover Plate Screw (Nut) Tooth : 1pcX5/8-11unc

Screw Center Distance of Bottom Cover Plate : in the middle


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/8 N P.T.F. / 1/4NPTF


Cover Plate

Top Cover Plate Diameter: 74.5 mm

Bottom Cover Plate Diameter: 61.2 mm


Rubber Bellows

Rubber Bellows MAX Diameter: 91.5 mm

Rubber Bellows Natural Diameter :80 mm

The Working Stroke : MAX 91 mm to MIN 38 mm

Maximum Height :91 mm

Minimum Height :38 mm

Compression Height : 53 mm


Bumper block / Buffer block

Without Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :no Pieces of Girdle Hoop


AIRSUSTECH G3000 Technical Parameters


material:2-layer standard lineDesign height
Air isolator63.5
Maximum diameter @ 100 PSIG (MM)Load (at design height): 40 psig (lbs)
86.3210
Maximum height (MM)Load (at design height): 60 psig (pounds)
73.6330
Maximum stroke (MM)Load (at design height): 80 psig (lbs)
35.6450
Minimum usable height (MMes)Natural frequency (@ 80 psig) (cpm)
38.1220
80PSI force at 1 MM stroke (lbs)Percentage of isolation when the mandatory frequency is 800 CPM
45091.8
Maximum thrust for maximum stroke @ 80PSI (pounds)Isolation percentage at forced frequency 1500 CPM
40097.8

AIRSUSTECH Model G3000

1M1A-0 Air Spring,

Reversible Cartridge,

5/16-18 Blind Nut,

5/8-11X1.00"

Steel Stud with 1/8" NPT Port
