| Categories | Pneumatic Solenoid Valves |
|---|---|
| Brand Name: | AIRTAC |
| Model Number: | 3V206NCA |
| Certification: | ISO Standand |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 500 PCS Per Week |
| Delivery Time: | 7 working Days |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |

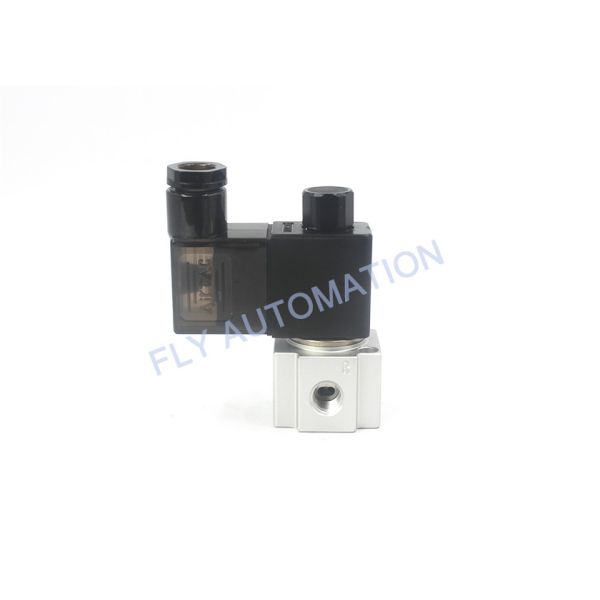

| MODEL: | 3V206 |
| Fluid: | air (to be filtered 40 μm filter element) |
| Acting: | direct acting |
| port size: | 1/8" |
| Orifice size: | 3.2MM² (Cv=0.18) |
| VALVE TYPE: | 3 port 2 positions |
| Lubrication: | Not required |
| Marterial of body: | aluminum alloy |
| Company Info. |
| Airwolf Automation |
| Verified Supplier |
| View Contact Details |
| Product List |
product feature
1. Directacting type and normally closed mode.flexible in direction
change.
2. Normally cloesed and normally open types are optional .
3. Structura in coaxial blanking mode: leakage proof and large air
flow
4. No need to add oil for lubrication .
5. Affilated manual devices are equipped to facilitate installation
and debugging.
6. Several standard voltage grades are optional.
7. Can be used under vacuum condition.
3V2 SERIES DETAILES:
| MODEL | 3V206 | 3V208 | |
| Fluid | air (to be filtered 40 μm filter element) | ||
| Acting | direct acting | ||
| port size | 1/8" | 1/4" | |
| Orifice size | 3.2MM² (Cv=0.18) | 3.4mm² (Cv=0.19) | |
| VALVE TYPE | 3 port 2 positions | ||
| Lubrication | Not required | ||
| Operating pressure | common | 0-0.8MPa(0-114psi) | |
| vacuum | -102.2KPa-0.1Mpa (-1.45-14.2psi) | ||
| Proof pressure | 1.2MPa(175psi) | ||
| Marterial of body | aluminum alloy | ||
COIL SPECIFICATION:
| MODEL | Specification | ||||
| standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Scope of voltage | AC+_15% DC+_10% | ||||
| Power consumption | AC:7VA DC:7.0W | ||||
| Protection | IP65(DIN40050) | ||||
| Temperature classification | B CLASS | ||||
| Electrical enrty | Terminal Grommet | ||||
| Activating time | 0.05 sec and below | ||||
| Max. frequency | Note 10 cycle/sec | ||||
|
