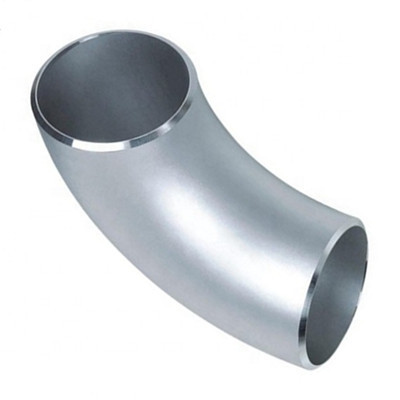

Hot Push Industrial Steel Pipe Fittings 90 Degree Elbow Seamless

Hot push pipe Fitting Seamless 45 90 Degree Hot push elbow

Description

Hot push elbow forming process is a process of heating, expanding and bending the blank sleeved on the die under the push of the special elbow pushing machine, core die and heating device.

The deformation characteristic of hot push elbow is to determine the billet diameter according to the law that the volume of metal material remains unchanged before and after plastic deformation.

Specification

Tube thickness: 3-20mm
Standard: DIN,ANSI,JIS etc
Wall thickness: SCH5-SCH80
Nominal diameter: DN15-DN1200
Surface treatment: Polishing,sandblasting

Technical data sheet

Hot push pipe Fitting Seamless 45 90 Degree Hot push elbow technical data sheet as below:

Characteristic

Hot push elbow adopts that the diameter of pipe blank is smaller than that of elbow, and the deformation process of blank is controlled by core die.

Make the metal compressed at the inner arc flow and compensate to other parts thinned due to diameter expansion, so as to obtain an elbow with uniform wall thickness.

The forming process of hot push elbow has the characteristics of beautiful appearance, uniform wall thickness and continuous operation, which is suitable for mass production.

Therefore, it has become the main forming method of carbon steel and alloy steel elbows, and is also used in the forming of some specifications of stainless steel elbows.

Application

Hot push elbow is used where the direction of pipeline needs to be changed, so it is widely used. It is mainly used in chemical, civil, construction, industrial production and other fields.

Product picture

Xi'an Longjoy Foreign Trade Co., Ltd. was established in 2002 and located in Xi'an Land Center, mainly engaged in the import and export of various pipe and pipe fittings. Our business scope is mainly in steel and plastic products, such as Carbon steel pipe fittings, stainless steel pipe fittings, flange, ductile iron pipe fittings, alloy pipe fittings, mar pipe fittings, HDPE pipe fittings. With the development of the business, we have accumulated rich trading experience and customer resources. Over the years, with excellent product quality and good business reputation, we have attracted many valuable customers in cooperating with us in the world.

Why Choose Us

1. Our advantage is that we can meet the needs of procurement at one time and provide a wide variety of pipes and fittings.

2. Nearly 20 years of professional trade experience to ensure that goods are delivered to you on time.

3. Stable cooperation with our partners to ensure fair price and quality of goods.

4. Choosing us means that we are your agent in China.

5. A perfect collaboration is the beginning of a long-term partnership.

Product Introduction

1. The company's main products include carbon steel pipe fittings, stainless steel pipe fittings, ductile iron pipe fittings, alloy pipe fittings, ma steel pipe fittings, flanges, etc.

2. According to the connection mode, it can be divided into butt welding pipe fittings, socket welding pipe fittings, threaded pipe fittings, etc.

3. Specific products include Elbow (long radius, short radius), Tee (equal, reducer), Reducer (concentric reducer, eccentric reducer), pipe cap, Cross Tee, Nipple, Branch pipe, Double socket collar, Piston, Joint, etc.

4. The main types of flange include WN Flange, Slip flange, socket welding flange, threaded flange, blind flange, etc.

Product Material Details

1. Carbon steel: ASTM / ASME a234 WPB, WPC.
2. Alloy steel: ASTM / ASME a234 WP 1-wp 12-wp 11-wp 22-wp 5-wp 91-wp911, 15Mo3 15CrMoV, 35crmov.
3. Stainless steel: ASTM / ASME A403 WP 304-304l-304h-304ln-304n ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti  ASTM/ASME  A403 WP 321-321H ASTM/ASME A403 WP 347-347H.
4. Low-temperature steel: ASTM / ASME A402 WPL3-WPL6.
5. High-performance steel: ASTM / ASME a860 WPHY 42-46-52-60-65-70.

6. Cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon, PVC, PPR, etc.

7. HDPE: PE100.
