| Categories | 4G Wireless Router |
|---|---|
| Certification: | FCC, ce, RECH, GS, UL, CSA, RoHS, Sgs, SIG(BluetoothSIG), BIS(ISI) |
| Brand Name: | iStartek |
| Place of Origin: | Guangdong, China |
| Supply Ability: | 9000000 Piece/Pieces per Month |
| Packaging Details: | lte 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 portsProduct size: 120mm x 150mm x 50mmPacking size: 217mm x 160mm x 60mmWeight: 170gPacking weight: 410g |
| MOQ: | 1 Pieces |
| Price: | $1-$19.00 |
| Model Number: | WR11S |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time: | 1-7 workdays |
| Max. LAN Data Rate: | 300Mbps |
| With Modem Function: | No |
| Standards And Protocols: | Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n |
| Wi-Fi Supported Frequency: | 2.4G |
| Supports WDS: | No |
| Supports WPS: | Yes |
| Wi-Fi Transmission Standard: | 802.11n |
| Wired Transfer Rate: | 150 Mbps |
![]() | 4G Signal to WIFI Signal | ![]() | 4G Signal To Lan | |||
![]() | 2.4G, 300Mbps WI-FI Rate | ![]() | Support 3G 4G LTE Network | |||
![]() | Support VOLTE Function |
| Use ZX297520V3E Chip | |||
| Support WPS, VPN, Port Mapping | ![]() | Support 32 MAX Terminates |
| Item | Description |
| Dimensions | 120mm (H) x 150mm (W) x 50mm (D) |
| Power Supply | Input: Universal range 100V~240V AC Output: 12V DC/1A |
| Power consumption | <12W |
| Memory | RAM 512Mb / ROM 1GMb |
| Slic | slic Le9641 |
| USIM/SIM Slot | 2FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal |
| LED Indicators | Power LED×1 WPS/WLAN LED×1 LAN LED×1 LTE Internet LED×1 Signal LED×3 |
| WPS Button | WPS Button×1 |
| Reset Button | Tactile button. Long press over 10s to restore the factory settings |
| Ethernet Port | RJ45×1, 10/100M auto-sensing, LAN/WAN |
| Voice Port | RJ11×1 |
| USB Port | USB 2.0×1 |
| Antenna | 4G/3G/2G:Internal Antenna OR External antenna(optional); WIFI: Internal Antenna |
| ESD | ESD Protection circuit; Contact±4KV, Air±8KV |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -25℃ ~ 70℃ |
| Operating Humidity | 5% ~ 95% |
| Item | Description |
| Wireless Access Technology | TD-LTE/FDD/WCDMA/TD-SCDMA/GSM/GPRS/EDGE/EGPRS |
| Bands(Max) | Four standard configurations(Optional): WR11S-Xce(Asia): LTE:B1/B3/B5/B8/B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39 WR11S- P (Asia): LTE:B1/B2/B3/B5/B7/B8/B28A/B28B/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900 WR11S-E (Europe & Africa): LTE:B1/B2/B3/B5/B7/B8/B20/B28A/B34/B38/B39/B40/B41;WCDMA:B1/B2/B5/B8;TD-SCDMA:B34/B39;GSM850/GSM900/GSM1800/GSM1900 WR11S-A (Latin America): LTE:B2/B3/B4/B5/B7/B8/B28A/B28B/B66;WCDMA:B2/B4/B5/B8;GSM850/GSM900/GSM1800/GSM1900 More bands can be customized. |
| Data Rate | LTE FDD:Max 150Mbps(DL)/ Max 50Mbps(UL); LTE TDD:Max 130Mbps(DL)/ Min 35Mbps(UL); WCDMA:Max 21Mbps(DL)/ Max 5.76Mbps(UL); TD-SCDMA:Max 4.2Mbps(DL)/ Max 2.2Mbps(UL); EDGE: Max 236.8kbps(DL)/ Max 118kbps(UL); GPRS: Max 85.6kbps(DL)/ Max 85.6kbps(UL); GSM: Max 9.6kbps (DL)/ Max 2.7kbps (UL); |

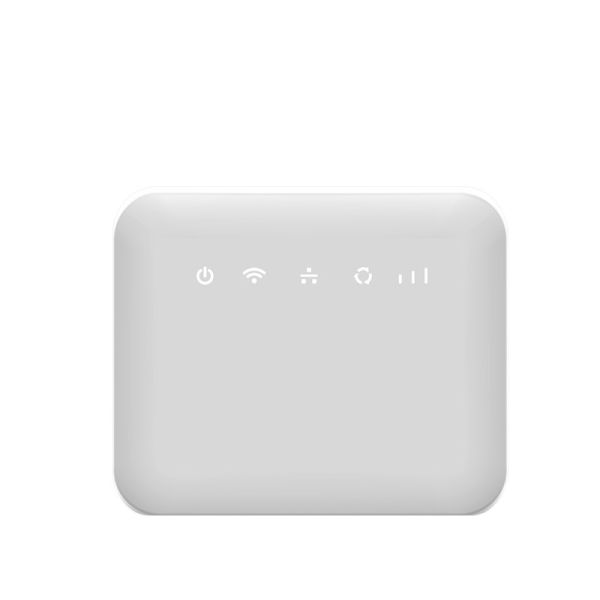

LTE 300mbps home sim card slot 4g 3g gsm voice call volte wireless router with rj11 ports
|
