Outdoor Single Mode G652D MGYXTWV Fiber Optical Cable

Categories	Fiber Optic Cable
Brand Name:	TTI OR OEM
Model Number:	MGYXTWV Fiber Optical Cable
Certification:	ISO9001 / ISO14001 / ROHS
Place of Origin:	China
MOQ:	1000M
Price:	Negociated
Payment Terms:	L/C, D/A, D/P, T/T, ,
Supply Ability:	50000km/momth
Delivery Time:	Negociated
Packaging Details:	wood Drum
Product Name:	MGYXTWV Outdoor Fiber Optical Cable
Model number:	MGYXTWV
Color:	Black
Material:	PE
Application:	Aerial/Duct/Direct
Operating temperature:	-40 to 70
Wavelength:	1310nm or 1550nm
Type:	SM
Length:	Customizted
Quality control:	100% test before shipping
Package:	Wooden Drum
Sheath:	MDPE/HDPE/LSZH/PVC

Contact Now

Add to Cart

Company Info.

TTI Fiber Communication Tech. Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Outdoor Single Mode G652D MGYXTWV Fiber Optical Cable

Singlemode G652D MGYXTWV Fiber Optic Cable Steel Wire Outdoor Cable

1. Specification:

MGYXTWV Outdoor Fiber Optical Cable
Brand	TTI
The cable´s outer diameter(mm)	9.8~10.8
The cable´s weight(kg/km)	70~94
Permissible tensile force(N)	Tempotensile force≤1500
Permissible tensile force(N)	Permtensile force≤600
Permissible crush force(N/100mm)	Tempoflatting force≤1000
Permissible crush force(N/100mm)	Permflatting force≤300
Min.bending radius(mm)	Dynamic bending: Optic cable OD of 20 times
Min.bending radius(mm)	Static bending: Optic cable OD of 10 times
Operating temperature	-40~+60℃
Layout mode	Pipeline,overhead and embedment

2. Characteristic:

1. MGYXTWV is an outdoor use optical fiber cable suitable for duct and aerial applications.

2. We supply MGYXTWV fiber optic cable from 2 fiber cores to 24 fiber cores.

3. Both single mode type and multimode types are available.

4. Fiber optic cable MGYXTWV jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

3. Feature:

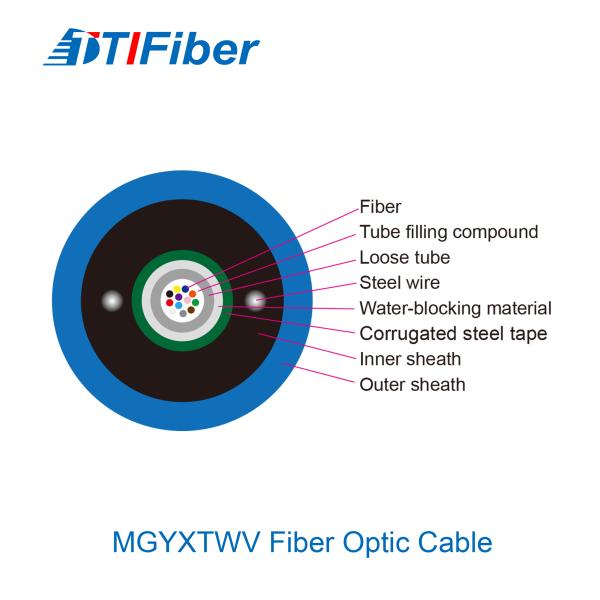

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Performance	Long-term	Short-term
Max.Tension(N)	3500	7000
Max.Crushing	300	1000
Resistance(N/100mm2)	30D(Dynamic)	15D(static)
Storage and operating temperature	-40℃ to +70℃

4. Application:

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

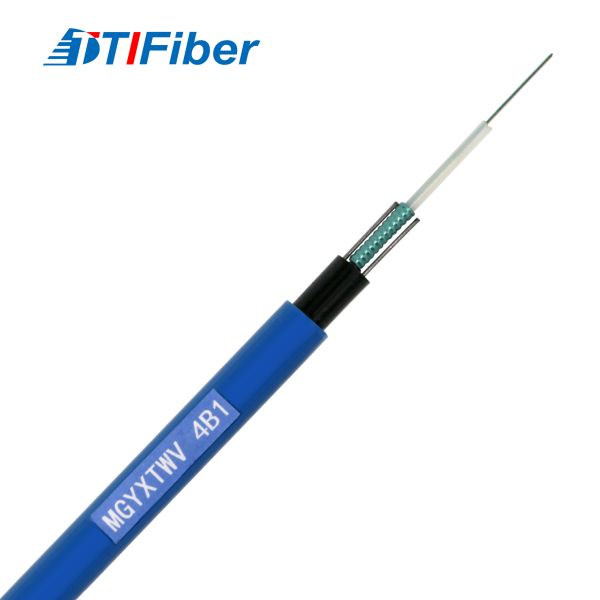

5. Product Picture:

6. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
