Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

Categories Excavator Swing Gearbox
Brand Name: TGFQ
Model Number: DX80R DX75 E80
Place of Origin: CHINA
MOQ: 1
Price: 200.00-800.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: Excavator Swing Gearbox
Model: DX80R DX75 E80
Part Number: 170303-00032A / K1042873
Quality: High Guarantee
Applicable Industries: Machinery Repair Shops, Energy & Mining
Motor No.: JMF151
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Doosan DX80R DX75 Excavator Swing Gearbox 170303-00032A

Factory Direct Sales Cheap Doosan Excavator Parts DX80R DX75 Swing Reduction Gearbox


Product
Model:DX80R DX75 E80
Brand: TGFQ
Part Number: 170303-00032A / K1042873
Part Name: Excavator Swing Reduction
Place of Origin: Guangzhou,China
Process: Heat Treatment

Feature:

1. Long life.
2. High strength.
3. Easier for maintenance
4. More accurate.
5. Anti-corrosion.
6. Suitable for various environments.

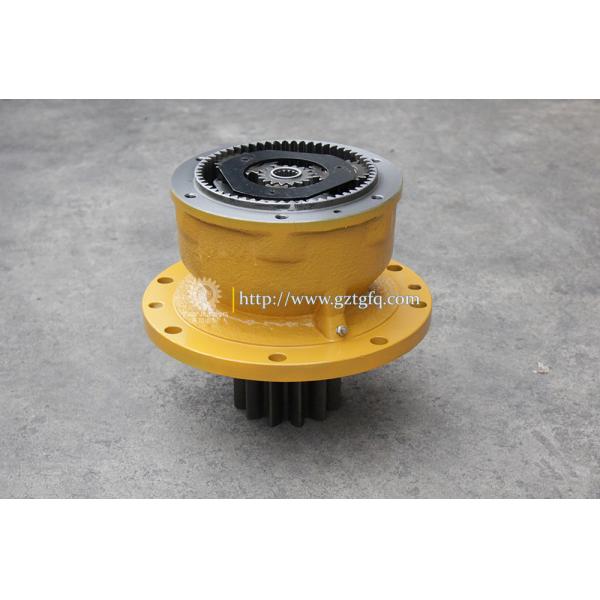

Product Photo:

Drawing:

Pos.Part NoQtyParts nameComments
*.K9006619[1]SEAL KIT;SWING MOTOR
-.170303-00032[1]
-.K1042873[1]MOTOR;SWING170303-00032
1*NA00342[1]CASING
11K9006589[1]. BALL;THRUST
12K9005957[1]. WASHER
13K9006590[3]. ROLLER
142.114-00862[2]. WASHER
15K9006591[1]. SPRING
16S6510420[1]RING
17K9006612[1]. BLOCK;CYLINDER
181.412-00064[2]PLATE;FRICTION
191.412-00073[1]PLATE;MATING
2K9006595[1]CASING;VALVE
20K9006594[1]PISTON;BRAKE
21K9006592[16]SPRING;BRAKE
22K9006596[1]PLATE;VALVE
23K9006202[2]PLUNGER
24K9006203[2]SPRING;CHECK
25K9006180[2]PLUG
26S5700621[1]PIN;PARALLEL
272180-1217D142[1]O-RING
282180-1217D147[1]O-RING
292180-1217D148[1]O-RING
3K9006593[1]SHAFT;DRIVE
302180-1217D153[1]O-RING
31S8000181[2]O-RING
31S8000161[2]O-RING
32S8000111[2]O-RING
33S2215061[4]BOLT;SOCKET M12X1.75X25
34S2206261[3]BOLT;SOCKET
352181-1950D1[2]PLUG
362181-1116D4[1]PLUG
37S6500250[4]RING;RETAINING
38K9006221A[2]
38K9006221[2]VALVE;RELLEFK9006221A
39K9006609A[1]
39K9006609[1]VALVE;BRAKEK9006609A
4K9006220[1]BEARING;ROLLER
40K9006610[1]GAUGE;OIL LEVEL
5K9006604[1]BEARING;BALL
6K9006605[1]SEAL;OIL
7K9006603A[1]PLATE;SHOE
7K9006603[1]PLATE;SHOEK9006603A
8K9006588[1]. PLATE;RETAINER
9K9006611[1]PISTON ASSY
R1.*NA00348[1]CASING;GEAR
R11.K9006599[3]RING;INNER NO.2
R12.K9006190A[3]RING,INNER;NO 1
R12.K9006190[3]RING(NO.1);INNERK9006190A
R13.K9006608[3]BEARING;NEEDLE
R14.K9006219[3]BEARING;NEEDLE
R15.K9006600[3]GEAR;PLANET NO.2
R16.K9006192A[3]GEAR,PLANETARY;(NO.1)
R16.K9006192[3]GEAR(NO.1);PLANETK9006192A
R17.K9006601[1]GEAR;SUN;NO.2
R18.K9006194[1]GEAR,SUN;NO.1
R19.K9006196[1]WASHER(NO.1);THRUST
R2.K9006602A[1]SHAFT,PINION
R2.K9006602[1]SHAFT;PINIONK9006602A
R20.K9006197[1]PLATE;THRUST
R21.K9006402[9]WASHER;THRUST
R22.K9006403[3]SCREW
R23.2181-1116D3[1]PLUG;HEX. SOCKET
R24.2181-1116D1[2]PLUG
R25.S2215271[6]BOLT;SOCKET
R26.K9006204[3]WASHER(NO.3);THRUST
R3.K9006694[1]BEARING;TAPER ROLLER
R3.K9006215[1]BEARING;TAPER ROLLERK9006694
R4.K9006606[1]BEARING;TAPER ROLLER
R5.K9006607[1]SEAL;OIL
R6.K9006597[1]COVER;BEARING
R7.K9006187[2]COLLAR;HALF
R8.K9006598A[1]
R8.K9006598[1]CARRIER NO.2K9006598A
R9.K9006188[1]CARRIER(NO.1)

Main Features:

Specifiions
1.Completely interchangeable with original
2.Very competitive price
3.Low-noise, high efficiency, high reliability, long life
4.Small size, high power density
5.Excellent oil absorption properties.
6.For engineering machinery, maritime and boat and industrial machinery etc.
7.For open-loop Swashplate axial piston pump.
8.Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar.
9.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
10.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed
11.Drive shaft can withstand the axial and radial loads
12.For pass-axis structure, and for multi-loop system




OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: How long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare parts within the warranty period free of charge.


Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
