| Categories | Excavator Swing Gearbox |
|---|---|
| Brand Name: | TGFQ |
| Model Number: | E315D 315D |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | 200.00-800.00USD |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 1000 pcs / month |
| Delivery Time: | 1-3days |
| Packaging Details: | NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type |
| Product Name: | E315D Excavator Swing Drvice |
| Model: | E315D 315D |
| Part Number: | 199-4602 |
| Package Size: | 45*45*55 CM |
| Applicable Industries: | Machinery Repair Shops, Energy & Mining |
| Motor No.: | SG04 Motor |
| Company Info. |
| Guangzhou Tiangong Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
China Made TGFQ Brand High Quality E315D 315D Excavator Swing Gearbox
Quick Details |
| Model:E315D 315D |
| Brand: TGFQ |
| Part Number: 199-4602 |
| Part Name: Excavator Swing Drive |
| Weight: 120KG |
| Process: Heat Treatment |

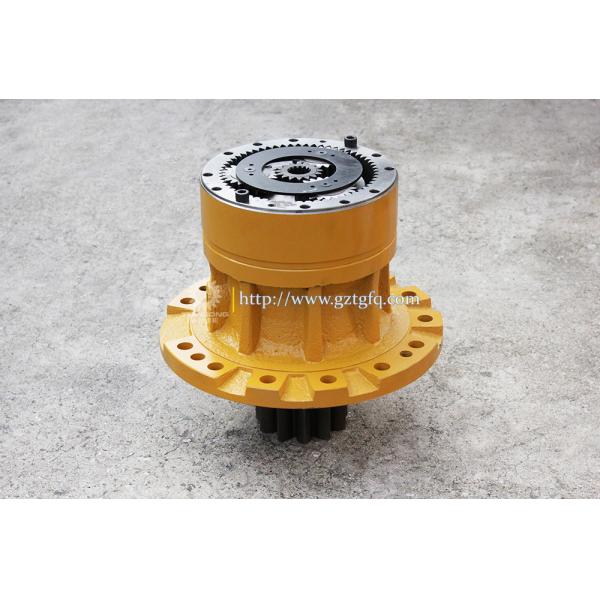

Product Photo:




Drawing:
S/N CJN1-2599
PART OF 199-4600, 267-6779, 367-8273 DRIVE GP-SWING

| Pos. | Part No | Qty | Parts name |
| 1 | 191-2600 | [3] | GEAR-PLANETARY |
| 2 | 191-2599 | [1] | CARRIER-PLANETARY |
| 3 | 191-2604 | [3] | PIN-SPRING |
| 4 | 191-2603 | [3] | SHAFT-PLANETARY |
| 5 | 199-4628 | [3] | SHAFT-PLANETARY |
| 6 | 191-2605 | [1] | WASHER (30X75X3-MM THK) |
| 7 | 199-4629 | [1] | GEAR-SUN |
| 8 | 199-4630 | [1] | GEAR-SUN |
| 9 | 114-8224 M | [1] | BOLT (M20X1.5-THD) |
| 10 | 199-4631 | [1] | GEAR-RING |
| 11 | 093-6089 | [2] | DOWEL |
| 12 | 095-0893 | [1] | PIN-SPRING |
| 13 | 7I-7625 | [1] | BEARING AS-ROLLER |
| 14 | 199-4638 | [1] | HOUSING |
| 15 | 199-4632 | [1] | SHAFT-PINION |
| 16 | 199-4636 | [1] | SPACER |
| 17 | 199-4627 | [6] | WASHER |
| 18 | 199-4634 | [1] | SPACER |
| 19 | 199-4635 | [1] | SPACER |
| 20 | 199-4637 | [1] | SPACER |
| 21 | 148-4744 | [1] | BEARING AS |
| 22 | 8T-4195 M | [9] | BOLT (M10X1.5X30-MM) |
| 23 | 8T-4121 | [9] | WASHER-HARD (11X21X2.5-MM THK) |
| 24 | 102-6495 | [1] | SEAL |
| 25 | 148-4748 | [1] | CAGE |
| 26 | 148-4747 | [1] | SPACER (29.5-MM THK) |
| 27 | 1U-8846 B | [1] | SEALANT-GASKET |
| 28 | 148-4751 | [1] | SPACER (8.3-MM THK) |
| 148-4752 B | [1] | SPACER (8.275-MM THK) | |
| 148-4754 B | [1] | SPACER (8.25-MM THK) | |
| 148-4755 B | [1] | SPACER (8.225-MM THK) | |
| 148-4756 B | [1] | SPACER (8.2-MM THK) | |
| 148-4757 B | [1] | SPACER (8.175-MM THK) | |
| 148-4758 B | [1] | SPACER (8.15-MM THK) | |
| 148-4759 B | [1] | SPACER (8.125-MM THK) | |
| 148-4760 B | [1] | SPACER (8.1-MM THK) | |
| 148-4761 B | [1] | SPACER (8.075-MM THK) | |
| 148-4762 B | [1] | SPACER (8.05-MM THK) | |
| 148-4763 B | [1] | SPACER (8.025-MM THK) | |
| 148-4764 B | [1] | SPACER (8-MM THK) | |
| 169-5520 B | [1] | SPACER (7.95-MM THK) | |
| 169-5521 B | [1] | SPACER (7.9-MM THK) | |
| 169-5522 B | [1] | SPACER (7.85-MM THK) | |
| 169-5523 B | [1] | SPACER (7.8-MM THK) | |
| 29 | 199-4624 | [1] | CARRIER-PLANETARY |
| 30 | 114-8223 | [1] | RETAINER |
| 31 | 8C-3347 | [3] | PIN-ROLL |
| 32 | 191-2602 | [6] | WASHER (32X56X1.2-MM THK) |
| 33 | 191-2601 | [3] | BEARING |
| 34 | 199-4625 | [3] | GEAR-PLANETARY |
| 35 | 199-4626 | [3] | BEARING |
| B | USE AS REQUIRED | ||
| M | METRIC PART |
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by
one.
4.Put the bigger carton boxes into wooden boxes if necessary
especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.


We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage


FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: How can i get the price?
A: We usually quote within 24 hours after we get your
inquiry(Except weekend and holidays). If you are very urgent to get
the price, please email us or contact us in other ways so that we
can offer you a quote.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: How do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production
experience in the excavated gear industry.
|
