E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox

Categories Excavator Swing Gearbox
Brand Name: TGFQ
Model Number: E307C 307C E308C 308C
Place of Origin: CHINA
MOQ: 1
Price: 200.00-800.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000 pcs / month
Delivery Time: 1-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: Excavator Swing Gearbox
Model: E307C 307C E308C 308C
Part Number: 148-4738
Quality: High Guarantee
Applicable Industries: Machinery Repair Shops, Energy & Mining
Package Size: 30*30*40 CM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

E307C 307C Slewing Device E308C 308C Hydraulic Swing Gearbox

E307C 307C Swing Gearbox Slewing Device E308C 308C Hydraulic Swing Gearbox


Product
Model:E307C 307C E308C 308C
Brand: TGFQ
Part Number: 148-4738
Part Name: Excavator swing gearbox without motor
Gearing Arrangement: Planetary
Process: Heat Treatment

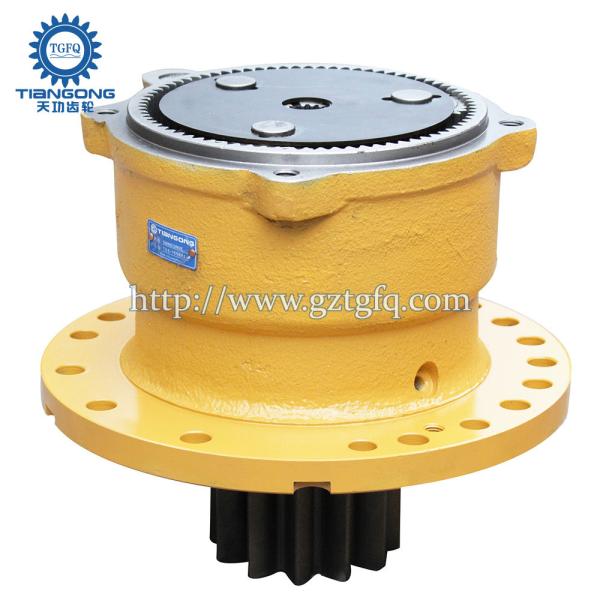

Product Photo:

Drawing:

Pos.Part NoQtyParts name
1095-9805 M[4]BOLT-SOCKET HEAD (M14X2X40-MM)
2185-0360 Y[1]MOTOR GP-SWING
3171-9446 B[1]PLATE
4171-9447 B[1]PLATE
5171-9448 B[1]PLATE
6095-1590[1]SEAL-O-RING
7139-7308[2]PLUG
8095-1575[2]SEAL-O-RING
9171-9449[1]GEAR
10171-9454[4]BEARING
11171-9441[4]GEAR-PLANETARY
12171-9440[4]WASHER (36X58.5X2-MM THK)
13171-9453[4]RACE
14171-9439[1]CARRIER
15171-9473[1]HOUSING AS
16171-9451[1]SEAL
17171-9438[1]COLLAR
18171-9456[1]GEAR
19171-9457[1]RING-RETAINING
20171-9455 M[4]SCREW (8X1.25X16-MM)
21171-9442[1]PLATE
22171-9443[1]CARRIER
23150-0814[3]WASHER
24099-7076[1]SEAL-O-RING
25171-9445[3]GEAR
26150-0812[3]BEARING AS-NEEDLE
27150-0813[3]RACE-INNER
 B USE AS REQUIRED
 M METRIC PART
 Y SEPARATE ILLUSTRATION

SpecifiionsMain Features:

1.Completely interchangeable with original
2.Very competitive price
3.Low-noise, high efficiency, high reliability, long life
4.Small size, high power density
5.Excellent oil absorption properties.
6.For engineering machinery, maritime and boat and industrial machinery etc.
7.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable
8.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed
9.Drive shaft can withstand the axial and radial loads
10.For pass-axis structure, and for multi-loop system

Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.




OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts


Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.


Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


Q: Do you have a factory?
A: Yes, we have our own factory and have 20 years of production experience in the excavated gear industry.
