High Brightness P3.91mm Outdoor Rental LED Screen Integrated Design

Categories Outdoor Rental LED Screen
Brand Name: CRTOP
Model Number: P3.91mm
Certification: CE/FCC/ETL
Place of Origin: CHINA
pitch: P3.91mm
material: die cast aluminum cabinet
application: outdoor rental
brightness: 4500cd
contrast ratio: 3000:1
view angle: 120º
install: fast easy to install and uninstall
waterproof: IP65
Brightness uniformity: ≥97%
grayscale: 16bits
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Brightness P3.91mm Outdoor Rental LED Screen Integrated Design

High Brightness P3.91mm Outdoor Rental LED Screen Integrated Design


private die cast aluminum box outdoor P3.91mm Rental led display screen


Rental led display,led wall parameter:

1. The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability


2. Integrated design of control box, fast installation and maintenance, support hot swap


PITICH:

indoor P2.604 P2.97 P3.91

Outdoor P2.97 P3.91 P4.81

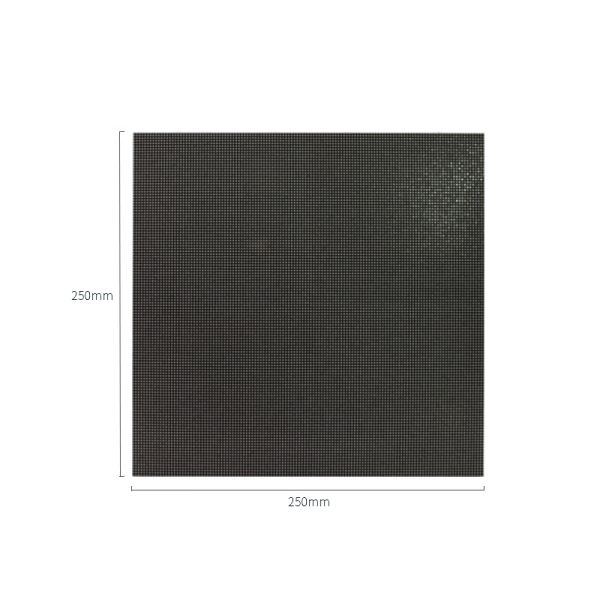

Module size:250x250mm

Box size: 500*500mm

projectparameterRemark

BASIC PARAMETER

pixel pitch3.91 mm
pixel structure1R1G1B
pixel density65410 / m2
Module resolution64 (W)* 64 (H)
Module size250mm*250mm
Box size500mmX500mm

OPTIC PARAMETER

Single point luminance, chromaticity correctionhave
white balance brightness≥4 5 00cd/㎡
color temperature3200K—9300K adjustable
Horizontal viewing angle≥ 120°
vertical viewing angle≥ 120°
Visible distance≥8 meters
Brightness uniformity≥97%
Contrast≥3000:1

Proccessing performace

Signal processing bits16 bits*3
grayscale16Bit
control distanceGigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive modeHigh gray-scale constant current source driver IC
frame rate≥ 60HZ
refresh rate≥1920 Hz
way to controlSynchronize
Brightness adjustment range0 to 100 stepless adjustment

Operation parameter

Continuous working time≥72 hours
Typical life50,000 hours
Protection classIP 65
range of working temperature-20℃ to 50℃
Operating humidity range10 %- 80% RH non-condensing
Storage temperature range-20 ℃ to 60 ℃

Electric parameter

Operating VoltageDC 5V
Power RequirementsAC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption80 0W/ ㎡
Average power consumption3 6 0W/ ㎡
