| Categories | Trailer Straight Axle |
|---|---|
| Brand Name: | Airui |
| Model Number: | AC00100000g |
| Certification: | ISO/TS16949 |
| Place of Origin: | Shandong，China |
| MOQ: | Deliberations |
| Price: | Deliberations |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 Set/Sets per Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements |
| Use: | Trailer Parts |
| Max Payload: | 8000-15000 lbs |
| Size: | 12.25 inch Heavy Brake Axles |
| Material: | Iron |
| Quality: | 100% Guaranteed |
| Length: | Customer Model |
| Tube: | 100 mm round |
| Bolts: | 8 bolts |
| Company Info. |
| Weifang Airui Brake Systems Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

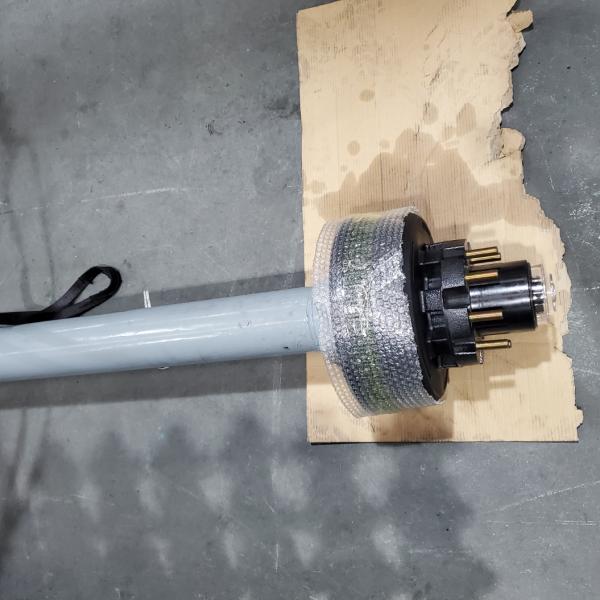

Heavy Duty Round Tube Straight 15000 Pound Trailer Axles With 12.25 Inch Brakes
How often should calipers be replaced?
Most brake calipers do not need to be rebuilt or replaced the first time the brakes are relined. But after 75,000 miles, or seven to 10 years of service, the calipers may be reaching the end of the road. As the rubber seals age and harden, the risk of sticking and leaking goes up.
| NO. | Description | QTY | option 1 | option 2 | option 3 |
| 1 | axle shaft | 1 | 127*8mm round tube | 50mm round tube | |
| 2 | spring seat | 2 | AC00100104 | ||
| 3 | Mounting plate | 2 | AC00100103 | ||
| 4 | Forge spindle | 2 | AC00100102 | AT01200103 | |
| 5 | 12.25" brake plate | 2 | AZ001/D35/071 electric | AZ069/070 hydraulic | |
| 6 | bolt, washer, nut | 8,10,14 | AC00100501/2/3 | ||
| 7 | oil seal | 2 | AC00100400 | ||
| 8 | inner bearing | 2 | 387A/382A | ||
| 9 | hub drum | 2 | AC00100300 | ||
| 10 | wheel retaining ring | 2 | AC00100900 | ||
| 11 | wheel nut | 16 | AC00100304 | ||
| 12 | outer bearing | 2 | 22580/25520 | ||
| 13 | castle nut | 2 | AC00100701 | ||
| 14 | split pin | 2 | AC00100702 | ||
| 15 | Oil cap | 2 | AC00100200 |
Features:
Axle Beam Acts as part of your trailer Suspension for hauling loads.
Great for replacing an old axle or bent damaged axle on your trailer
Made of High Strength Steel
Underslung axle design: spring pads are welded to the underside of the axle for mounting leaf springs.
Spring pads are pre-welded on the trailer axle for your convenience.
The 5 lug Hub Drums & Electric Brakes are assembled on the axle and 5 lug idler hubs on other axle with the bearings, seals, pre-greased, fully assembled for simple installation on your trailer.
Great for Utility Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More
|
