25% Glass Fiber Polyamide PA66 Heat Insulation Extrusion Material Nylon Recycling Granules

Categories Glass Filled Nylon 66
Brand Name: Polywell
Model Number: PW-PA66GF25
Place of Origin: China
MOQ: 1 Ton
Price: USD 1,500-1,800/T
Payment Terms: T/T
Supply Ability: 20 Tons per Day
Delivery Time: 15-20 Working Days
Packaging Details: Nylon Bag 25KG/bag
Certification: SGS
Material: Polyamide 6.6, glass fiber
Glass Fiber Content: 25%
Color: Black
Usage: Heat insulation plastics
Fiber Type: GFRP
Plastic Properties After Heated: Thermoplastic Plastics
Transport Package: 25kg/Bag
Export Markets: Global
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

25% Glass Fiber Polyamide PA66 Heat Insulation Extrusion Material Nylon Recycling Granules

25% Glass Fiber Polyamide PA66 Heat Insulation Extrusion Material Nylon Recycling Granules

Product Details:

-PA66GF25 granules are reinforced by fiberglass. The final product performance of this raw material can meet the national standard.

-PA66GF25 granules are based on PA66 resin. Then the granules are formed by twin-screw extrusion machine after adding fiberglass, efficient flame retardants and various additives.

PA66 is copolymerization for extrusion molding. PA66 is safe and reliable with excellent stability.
The product is based on PA66 resin. It is produced by twin-screw extruder after adding glass fiber and various additives.


Polywell PA66 Granules Performance Table

NO.

Item

Unit

GB/T 23615.1-2009

PW-Technical specification


Material Properties

1

Density

g/cm3

1.3±0.05

1.28-1.35

2

Linear expansion coefficient

K-1

(2.3-3.5)×10-5

(2.3-3.5)×10-5

3

Vicat softening temperature

ºC

≥230ºC

≥233ºC

4

Melting point

ºC

≥240

≥240

5

Testing for tensile cracks

-

No cracks

No cracks

6

Shore hardness

-

80±5

80-85

7

Impact strength(Unnotched)

KJ/m2

≥35

≥38

8

Tensile strength(longitudinal)

MPa

≥80a

≥82a

9

Elasticity modulus

MPa

≥4500

≥4550

10

Elongation at break

%

≥2.5

≥2.6

11

Tensile strength(transverse)

MPa

≥70a

≥70a

12

High temperature tensile strength(transverse)

MPa

≥45a

≥47a

13

Low temperature tensile strength(transverse)

MPa

≥80a

≥81a

14

Water resistance tensile strength(transverse)

MPa

≥35a

≥35a

15

Aging resistance tensile strength(transverse)

MPa

≥50a

≥50a


1.Sample water content less than 0.2% by weight.

2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.


Characteristic

Polyamides are among the most important and proven technical thermoplastics, known for their heat resistance, stiffness and high mechanical stability.

Polyamides can be classified into different types, with PA 6, PA 6.6 and PA 12 most established on the market. Alongside ABS and PP compounds they are among the most widely used plastics, found across several sectors including the automotive, mechanical engineering, structural and installation engineering, photovoltaics and electrical engineering industries.


Application

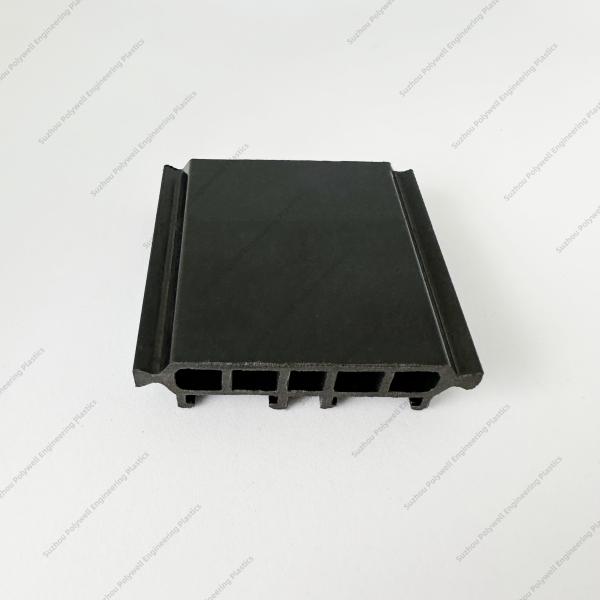

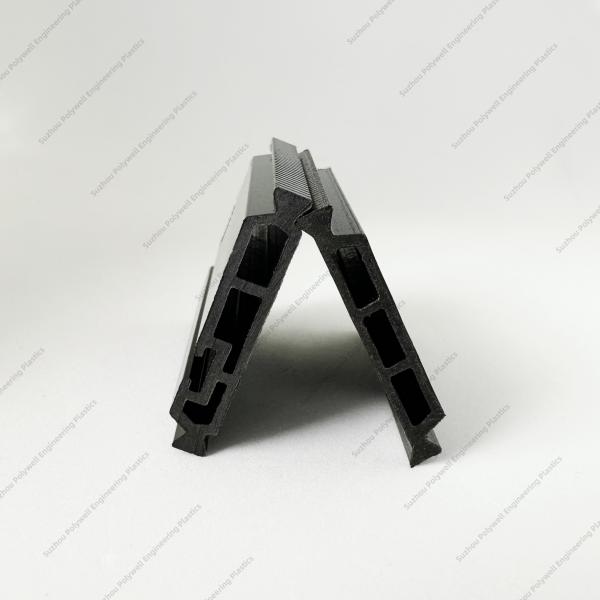

Specially used in thermal break strips, thermal bridge, heat insulation bar, etc.


Packaging & Delivery info

Packaging details: 25kg/bag
Delivery details: Shipped in 7-15 working days after receiving the payment.
