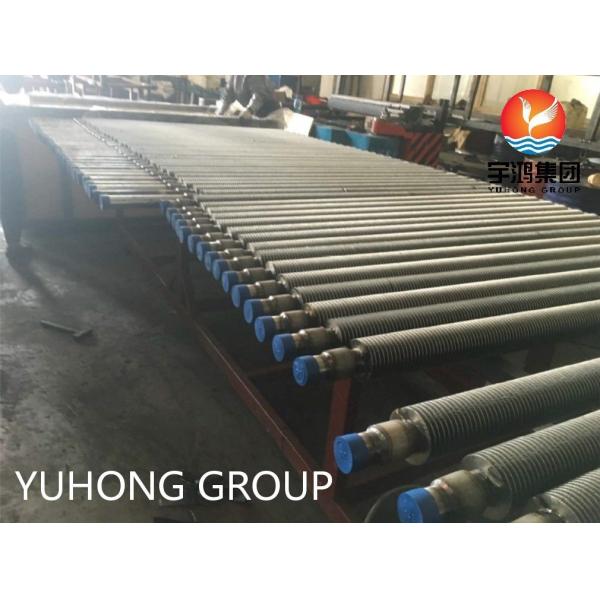

ASME SA213 T12 Low Alloy Ferritic Stainless Steel Finned Tube

ASME SA213 T12 Low Alloy Ferritic Stainless Steel Finned Tube

Yuhong Group has been operating stainless steel/duplex/nickel seamless pipes for more than 10 years, with annual sales of more than 80,000 tons of stainless steel/duplex/nickel seamless pipes. Our clients have covered more than 45 countries. Our stainless steel seamless pipes are widely used in mining, energy, petrochemical, chemical, food mills, paper mills, gas and fluid industries and more. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS

HFW solid finned tube is the abbreviation of high frequency welded spiral solid finned tube.

Spiral finned tubes offer designers high thermal efficiency and a compact design solution for a full range of heat exchangers using clean flue gas. There are two types of spiral finned tubes: solid type and serrated type.

Helical solid finned tubes are made by helically wrapping a continuous strip of fins around the tube. High frequency resistance welding typically uses a frequency of 400 kHz. The fins are wrapped around the tube and welded continuously. The fin tape is helically wound on the tube and welded continuously to the base tube along the root of the helix by a high frequency electrical process. The fin strips are held under tension and laterally constrained as they are formed around the tube, ensuring firm contact between the fin strips and the surface of the base tube. Using a gas metal arc welding process, a continuous weld is made at the point where the fin strip first begins to bend around the pipe diameter.

Technical details/base tube details/Fin details

Pipe Diameter: Min. OD 20mm to Max. OD 219mm.

Tube Thickness: Min. 2mm to 16mm

Pipe material: stainless steel, alloy steel, carbon steel, Corten steel, duplex steel, super duplex steel, Inconel, high chromium high nickel and some materials such as Incolloy, CK 20 material.

Fin detail

Fin Thickness: Min. 0.8 mm to max. 4 mm

Fin Height: 0.25" (6.35 mm) minimum to 1.5" (38 mm) maximum

Fin Density: Minimum 43 fins per meter, maximum. 287 fins per meter

Materials: Carbon Steel, Stainless Steel, Alloy Steel, Weathering Steel, Duplex Steel and Incolloy.

If you need a quick quote, please send as follows:

1. The number of pieces,

2. Base pipe: (1) diameter, (2) thickness, (3) length and (4) material specification.

3. Fins: (1) material specification, (2) type (solid or serrated), (3) height, (4) thickness, (5) pitch, (5) fin length and (6) finless section .

If necessary, weld preparation details.

4. Desired delivery date.
