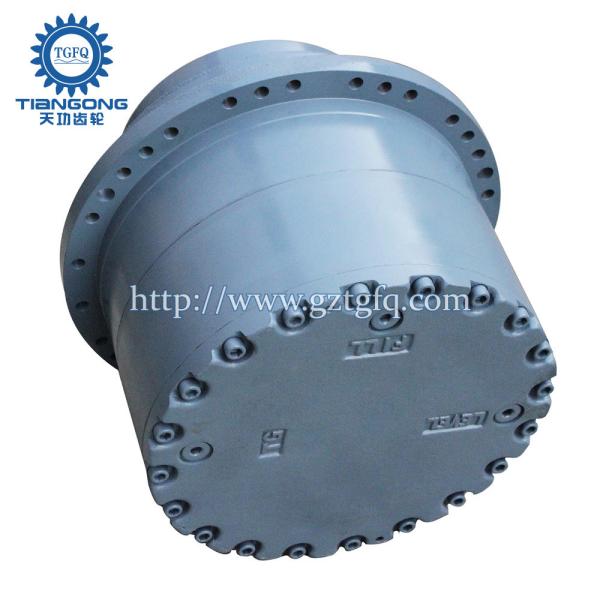

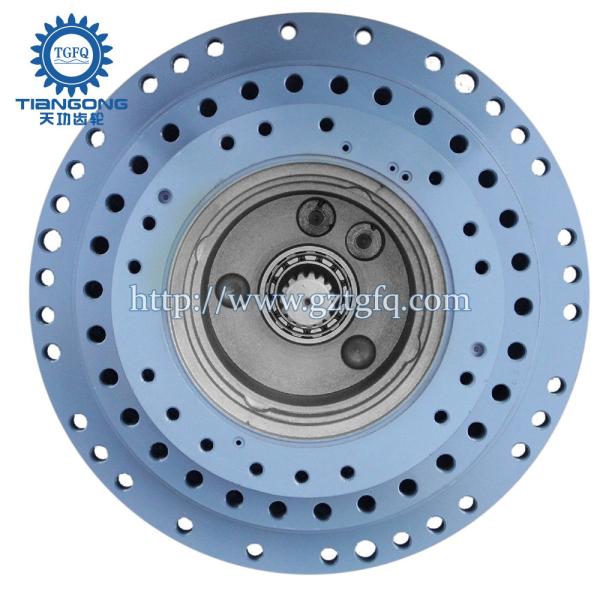

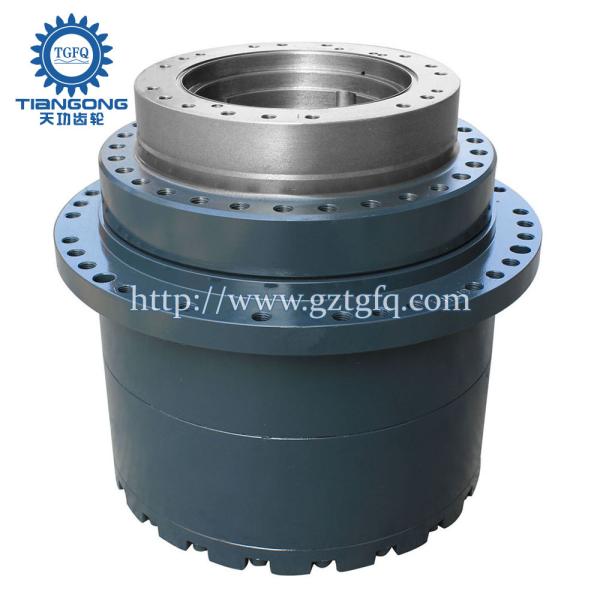

R225-7 Travel Gearbox Assembly Travel Device For Excavator
Product Parameter:
| Product Name: | Travel Gearbox |
| Place of Origin: | Guangzhou |
| Model: | R225-7 |
| Part Number: | 31Q6-40020 / 31Q6-40021 |
| Material: | Steel |
| Total Weight: | 330KG |
| Outer Packing: | Wooden Case |
| Means of Transport: | By Sea, By Air or By Express |

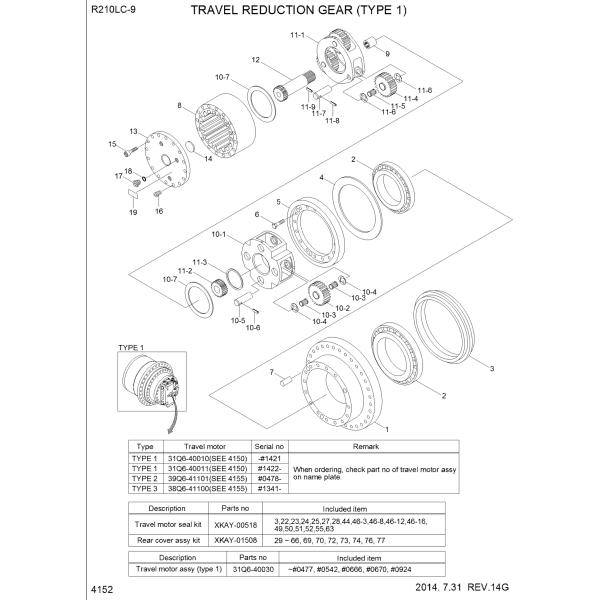

| Pos. | Part No | Qty | Parts name |
| *. | @ | [1] | TRAVEL MOTOR ASSY |
| *. | @ | [1] | TRAVEL MOTOR ASSY |
| *-2. | 31Q6-40020 | [1] | TRAVEL REDUCTION GEAR |
| *-2. | 31Q6-40021 | [1] | TRAVEL REDUCTION GEAR |
| *-2. | 31Q6-40022 | [1] | T/REDUCTION GEAR |
| N1. | XKAQ-00217 | [1] | HOUSING |
| 2 | XKAQ-00218 | [2] | BEARING-MAIN |
| 2 | XKAQ-00986 | [2] | BEARING-MAIN |
| 3 | XKAQ-00219 | [1] | SEAL-FLOATING |
| 4 | XKAQ-00220 | [1] | SHIM |
| 5 | XKAQ-00221 | [1] | RETAINER |
| 6 | XKAQ-00222 | [12] | BOLT-HEX |
| 7 | XKAQ-00223 | [2] | PIN-PARALLEL |
| 8 | XKAQ-00224 | [1] | GEAR-RING |
| 9 | XKAQ-00225 | [1] | COUPLING |
| 9 | 39Q6-42170 | [1] | COUPLING |
| 10 | XKAQ-00226 | [1] | CARRIER 2 ASSY |
| 10-1. | XKAQ-00227 | [1] | CARRIER 2 |
| 10-2. | XKAQ-00228 | [4] | GEAR-PLANET 2 |
| 10-3. | XKAQ-00229 | [8] | BEARING-NEEDLE 2 |
| 10-4. | XKAQ-00230 | [8] | WASHER-THRUST |
| 10-5. | XKAQ-00231 | [4] | PIN 2 |
| 10-6. | XKAQ-00232 | [4] | PIN-SPRING |
| 10-7. | XKAQ-00208 | [2] | RING-THRUST |
| 11 | XKAQ-00653 | [1] | CARRIER ASSY 1 |
| 11-1. | XKAQ-00234 | [1] | CARRIER 1 |
| 11-2. | XKAQ-00235 | [1] | GEAR-SUN 2 |
| 11-3. | XKAQ-00236 | [1] | RING-RETAINING |
| 11-4. | XKAQ-00237 | [3] | GEAR-PLANET 1 |
| 11-5. | XKAQ-00238 | [3] | BEARNG-NEEDLE 1 |
| 11-6. | XKAQ-00657 | [6] | WASHER-THRUST |
| 11-7. | XKAQ-00240 | [3] | PIN 1 |
| 11-8. | XKAQ-00241 | [3] | PIN-SPRING |
| 11-9. | XKAQ-00655 | [1] | PIN-SPRING |
| 12 | XKAQ-00402 | [1] | GEAR-SUN 1 |
| 12 | XKAQ-00795 | [1] | GEAR-SUN 1 |
| 13 | XKAQ-00243 | [1] | COVER |
| 14 | XKAQ-00214 | [1] | PAD |
| 15 | XKAQ-00244 | [20] | BOLT-SOCKET |
| 16 | XKAQ-00245 | [2] | SCREW-HEX SOCKET |
| 17 | XKAQ-00246 | [3] | PLUG-HYDRAULIC |
| 18 | XKAQ-00247 | [3] | O-RING |
| 19 | XKAQ-00248 | [1] | NAME PLATE |
| 19 | XKAQ-00990 | [1] | NAME PLATE |
| N. | @ | [AR] | NOT SUPPLIED PARTS |



We have more than 4000 square meters of three-dimensional warehouse
and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to
customers' needs faster. Fast delivery is our advantage


FAQ:
common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive
motors and reducer gearbox and their parts
Q: how long is the warranty period?
A: Within 6 months, we will provide you with maintenance spare
parts within the warranty period free of charge.
Q: do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: can I order one of our samples for testing first?
A: Of course!
Q: how do I order?
A: You need to tell us the model and quantity you are interested
in, and then we will issue a proforma invoice for you. The goods
will be prepared after receiving the payment. The preparation time
depends on the content of the order
Q: do you have a factory?
A: Yes, we have our own factory and have 20 years of production
experience in the excavated gear industry.
|
