| Categories | Pharmaceutical Dryers |
|---|---|
| Brand Name: | LTPM China |
| Model Number: | CTC Series |
| Certification: | CE, GMP |
| Place of Origin: | China |
| MOQ: | 1set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 25sets/month |
| Delivery Time: | 25days |

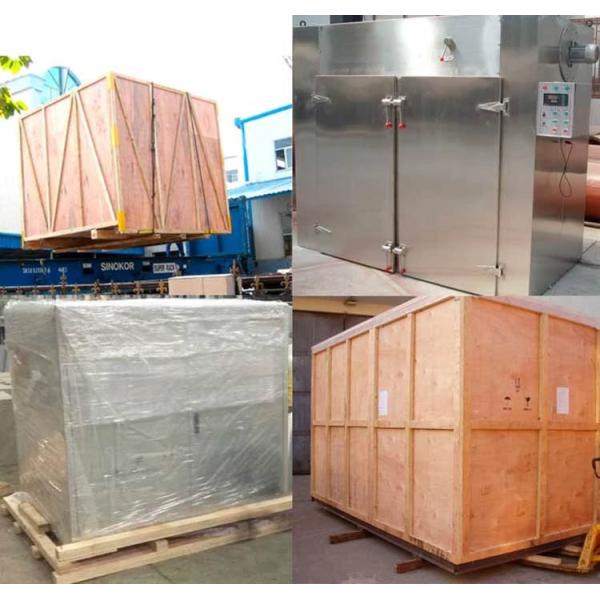

| Packaging Details: | Export standard wooden case |
| Drying quantity per time (kg): | 25-200 |
| Power of blower fan (kw): | 0.45-1.1 |
| Consumed steam(L/min): | 5-40 |
| Drying cart (pcs): | 0-2 |
| Drying pan(pcs): | 24-96 |
| Machine Size (mm): | 1550-2300*1000-2200*2044-2433 |
| Upper and lower temp. difference: | ±2 |
| Service temperature: | electrical heating 50-350℃ |
| Company Info. |
| Leadtop Pharmaceutical Machinery |
| Verified Supplier |
| View Contact Details |
| Product List |

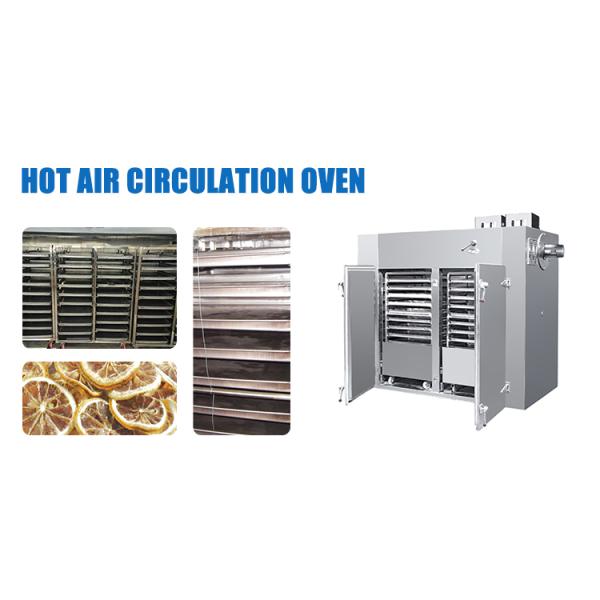

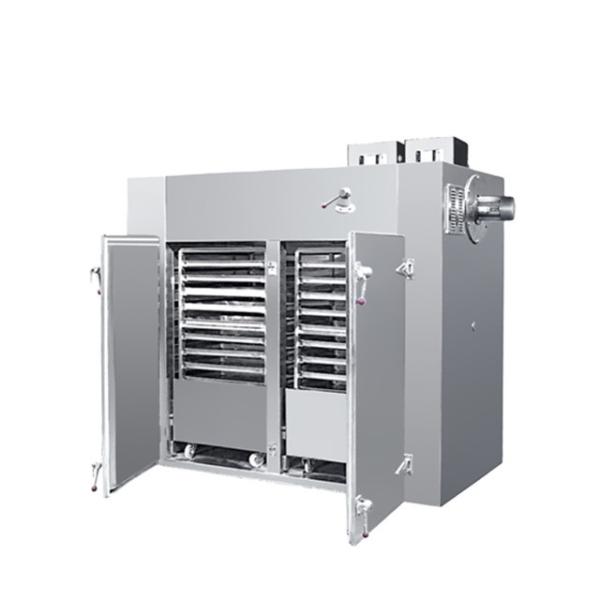

The machine is widely used for heated drying or dehumidifying of
materials in such industries as medicine, food and chemical
industry.

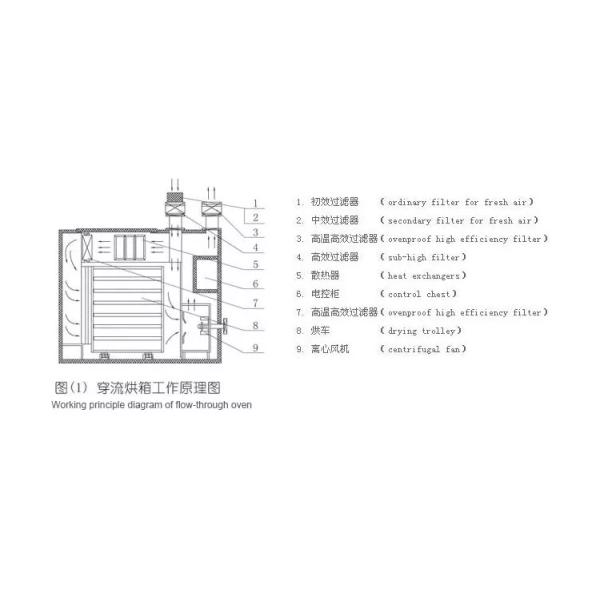

Its working principle is that it uses steam or electric heater to
heat the air, and then the heated air carries out circulated drying
of materials. The temperature difference between any places in the
oven is low and the drying is even. During the drying process,
fresh air is supplied and wet and hot air is discharged
continuously, so proper temperature is maintained inside the oven,
making the drying process always under the best status.
Technical Data
| Model & spec. | Drying quantity per time (kg) | Power of blower fan (kw) | Consumed steam(L/min) | Drying cart (pcs) | Drying pan(pcs) | Machine Size (mm) | Upper and lower temp. difference |
| CTC-0 | 25 | 0.45 | 5 | 0 | 24 | 1550*1000*2044 | ±2 |
| CTC-1 | 100 | 1.1 | 20 | 2 | 48 | 2300*1200*2433 | ±2 |
| CTC-2 | 200 | 1.1 | 40 | 2 | 96 | 2300*2200*2433 | ±2 |
Product Details:
Machine Application:
Packaging Details:
|
