Bright Surface C17200 Beryllium Copper Rod 25mmx1m ASTM B196 Grade

ASTM B196 Grade( C17200) Beryllium Copper Rod 25mmx1m With Bright Surface

Product Normal Description:

Product Name: Beryllium copper rod

Grade: ASTM B 196 (C17200)

Standard: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

Product Size: 25mmx1m

State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)

Typical Application: used for low maintenance bearings and bushings

Product Brand: CUBERYLLIUM®

International Specification of C17200 Beryllium Copper Rods:

Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4

European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

ASTM B-196(C17200) Beryllium Copper Alloy Chemical Composition:

Note: Copper plus additions equal 99.5% Minimum.

Typical Physical Properties of ASTM B-196(C17200) Beryllium Copper Alloy:

Mechanical and Electrical Properties of ASTM B-196(C17200) Beryllium Copper Rod:

Fasterners Applications of ASTM B-196(C17200) Beryllium Copper Alloy:

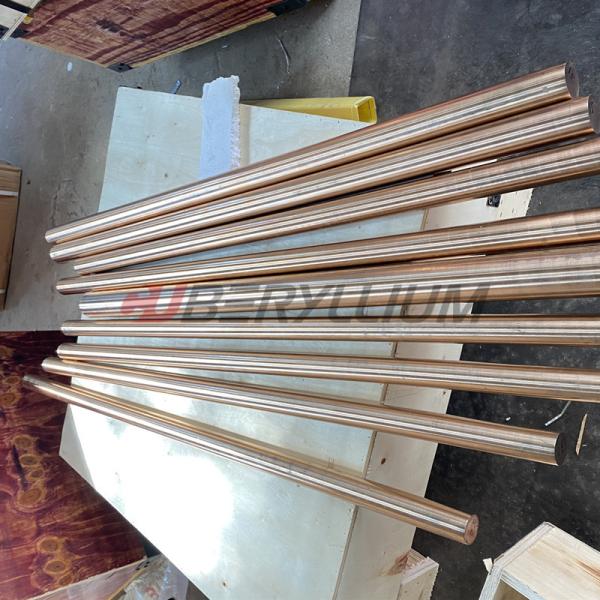

Product Photos:

FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.

Cuberyllium Metal Technology Co.,Ltd., is a national-level high-tech company. It is a production-oriented enterprise mainly engaged in the production of high-performance beryllium copper materials.

CUBERYLLIUM^® established in 2002 years and located in Zhejiang Prov., China. It is a member of “CUBERYLLIUM^®” Group which was founded in 1998 with a long experience of Beryllium Copper Alloy.

At present, “CUBERYLLIUM^®” Group has developed into three production bases in Zhejiang, Jiangsu and Shanxi, covering more than 30000 square meters with more than 120 employees.

"CUBERYLLIUM^®" Group is a professional manufacturer which based on production and development of beryllium copper alloy, with well equipped testing facilities and strong technical force, good quality and reasonable price.

CUBERYLLIUM^®'s beryllium copper has high conductivity, high strength, wear resistance, fatigue resistance, corrosion resistance and other characteristics, widely used in aerospace, communications, welding, chemical petroleum and medical fields.
