PC200-6 6D95 Travel Gearbox 20Y-27-K1210 Excavator Gear Parts

TGFQ Excavator Gear Parts PC200-6 6D95 Travel Gearbox 20Y-27-K1210

TGFQ Excavator Gear Parts PC200-6 6D95 Travel Gearbox

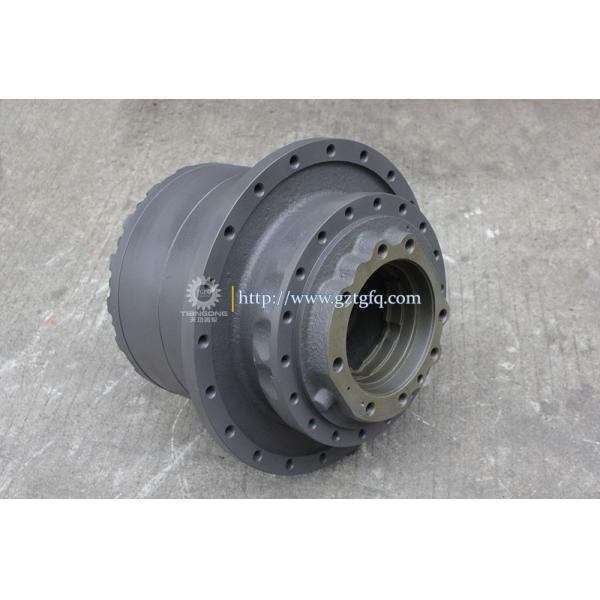

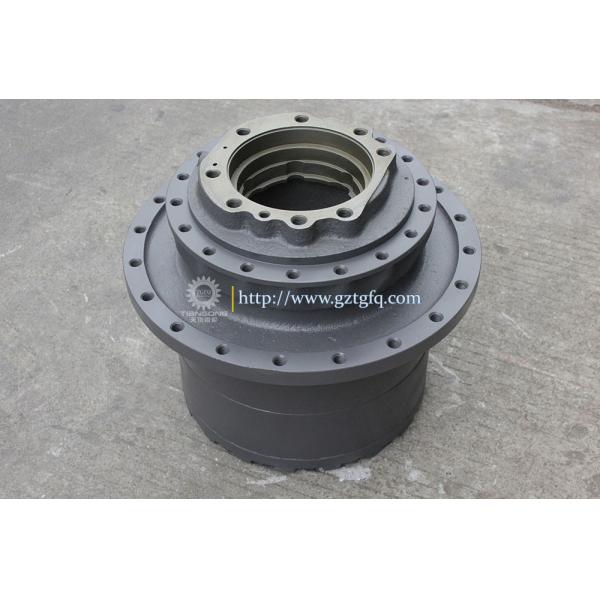

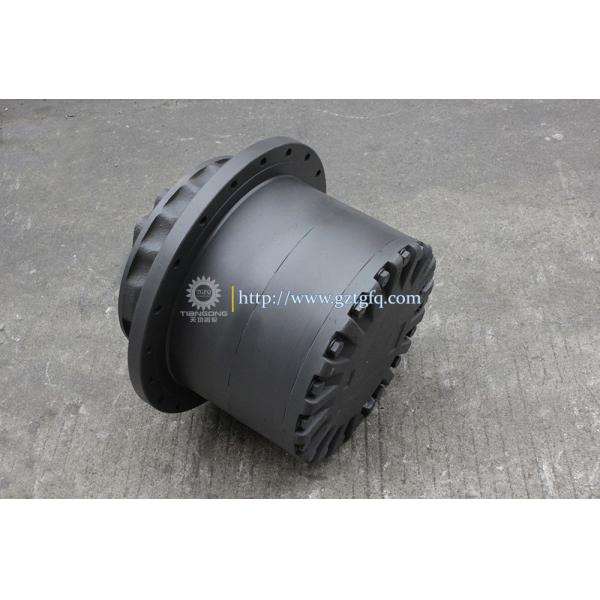

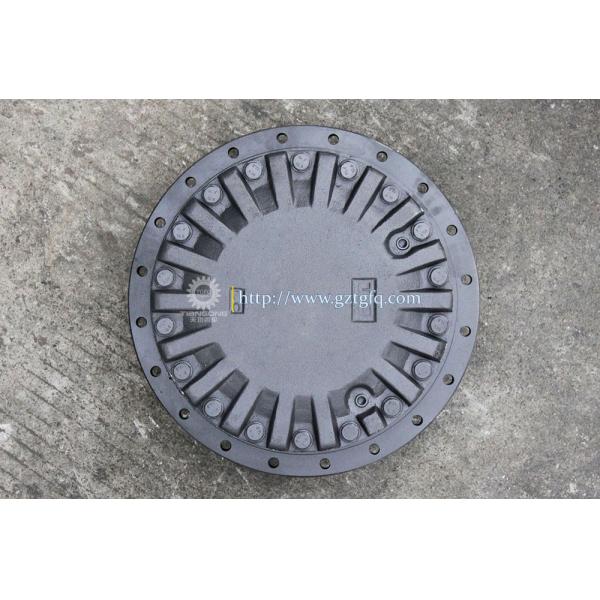

Product Photo:

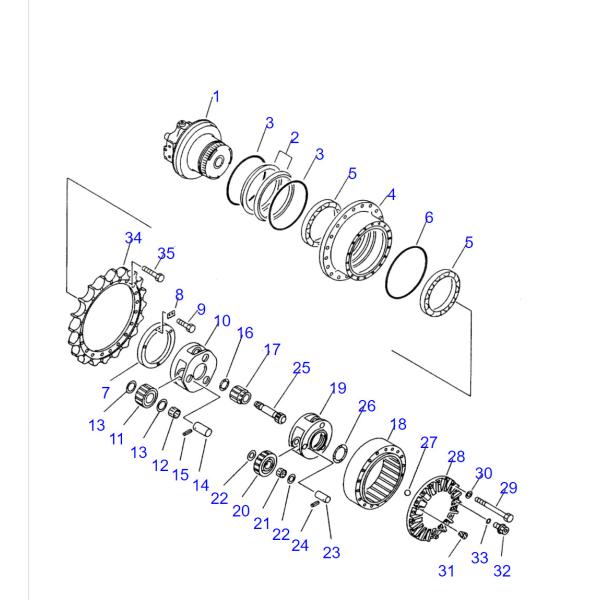

Drawing:

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-K1210	[1]	DRIVE KIT,FINAL Komatsu China
			["SN: K30189-UP"] |1.
1.	708-8H-00181	[1]	MOTOR ASS'Y,(SEE FIG.P1210-5101) Komatsu China
			["SN: K30001-UP"] analogs:["RM7088H00181"]
	150-27-00029	[1]	FLOATING SEAL ASS'Y Komatsu China	2.99 kg.
			["SN: K30001-UP"] analogs:["1502700330", "1502700410"] |2.
4.	20Y-27-21120	[1]	HUB Komatsu	97 kg.
			["SN: K30001-UP"]
5.	20Y-27-11570	[2]	BEARING Komatsu China	5.2 kg.
			["SN: K30001-UP"] analogs:["2052771430"]
6.	20Y-27-21350	[1]	O-RING Komatsu	0.02 kg.
			["SN: K30001-UP"]
7.	20Y-27-21331	[1]	LOCKNUT Komatsu	4.35 kg.
			["SN: K30001-UP"] analogs:["20Y2721330"]
8.	20Y-27-21341	[1]	LOCK Komatsu	0.1 kg.
			["SN: K30001-UP"]
9.	01010-51020	[2]	BOLT Komatsu	0.161 kg.
			["SN: K30001-UP"] analogs:["0101081020", "801014093", "801015108"]
10.	20Y-27-21153	[1]	CARRIER Komatsu	24.5 kg.
			["SN: K30189-UP"] analogs:["20Y2721152"]
	20Y-27-21152	[1]	CARRIER Komatsu	24.5 kg.
			["SN: K30001-K30188"] analogs:["20Y2721153"] |10.
11.	20Y-27-21210	[3]	GEAR Komatsu	4.3 kg.
			["SN: K30001-UP"]
12.	20Y-27-21270	[3]	BEARING Komatsu China	0.3 kg.
			["SN: K30001-UP"] analogs:["20Y2722220"]
13.	20Y-27-21250	[6]	WASHER Komatsu China	0.03 kg.
			["SN: K30001-UP"]
14.	20Y-27-21230	[3]	PIN Komatsu	1.54 kg.
			["SN: K30001-UP"]
15.	20Y-27-21290	[3]	PIN Komatsu OEM	0.03 kg.
			["SN: K30001-UP"]
16.	20Y-27-13310	[1]	WASHER Komatsu China	0.08 kg.
			["SN: K30001-UP"]
17.	20Y-27-21190	[1]	GEAR Komatsu	2.7 kg.
			["SN: K30001-UP"] analogs:["20Y2721191"]
18.	20Y-27-21180	[1]	GEAR Komatsu	46.5 kg.
			["SN: K30001-UP"]
19.	20Y-27-21140	[1]	CARRIER Komatsu	8.2 kg.
			["SN: K30001-UP"]
20.	20Y-27-21170	[3]	GEAR Komatsu	2.7 kg.
			["SN: K30001-UP"]
21.	20Y-27-21260	[3]	BEARING Komatsu China	0.12 kg.
			["SN: K30001-UP"] analogs:["20Y2722210"]
22.	20Y-27-21240	[6]	WASHER Komatsu China	0.02 kg.
			["SN: K30001-UP"]
23.	20Y-27-21220	[3]	PIN Komatsu China	0.411 kg.
			["SN: K30001-UP"]
24.	20Y-27-21280	[3]	PIN Komatsu China	0.01 kg.
			["SN: K30001-UP"]
25.	20Y-27-21161	[1]	SHAFT Komatsu	2.26 kg.
			["SN: K30001-UP"]
26.	20Y-27-21310	[1]	WASHER Komatsu China	0.17 kg.
			["SN: K30001-UP"]
27.	04260-01905	[1]	BALL Komatsu OEM	0.029 kg.
			["SN: K30001-UP"]
28.	20Y-27-21110	[1]	COVER Komatsu	23 kg.
			["SN: K30001-UP"]
29.	20Y-27-21360	[18]	BOLT Komatsu	0.28 kg.
			["SN: K30001-UP"]
30.	01643-31645	[18]	WASHER Komatsu	0.072 kg.
			["SN: K30001-UP"] analogs:["802170005", "0164301645"]
31.	07049-01215	[2]	PLUG Komatsu	0.001 kg.
			["SN: K30001-UP"]
32.	07044-12412	[2]	PLUG Komatsu	0.09 kg.
			["SN: K30001-UP"] analogs:["0704402412", "R0704412412"]
33.	07002-02434	[2]	O-RING Komatsu China	0.01 kg.
			["SN: K30001-UP"] analogs:["0700212434", "0700213434"]
34.	20Y-27-11581	[1]	SPROCKET Komatsu China	36.2 kg.
			["SN: K30001-UP"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"]
35.	20Y-27-11561	[20]	BOLT Komatsu China	0.14 kg.
			["SN: K30001-UP"]

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: How long is the warranty period?
A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q: Do you have a factory?
A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.

TGFQ, manufacturing and trading combo, specializes in excavator gear parts and gearbox more than 20 years with professional team since 2000. After twenty years’ effort and development, now we have become one the leader manufacturers and suppliers in China.

TGFQ's main products are Excavator Hydraulic pump, Swing motor, Travel motor, Final drive, Swing motor assemblies, Swing gearbox, Travel gearbox and components. Until now, our products enjoy high reputation all over the world and have been exported to more than 150 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "TGFQ" are widely acclaimed by foreign customers.

All of our products are manufactured in our 120,000 square foot state-of-the-art manufacturing facility loed in Meizhou, Guangdong. At the same time, a professional sales team is equipped with 100 million yuan of stock in Guangzhou, Guangdong.
