PC200-8 Excavator Travel Gearbox 20Y-27-00500 20Y-27-00590

20Y-27-00500 20Y-27-00590 Excavator Komatsu PC200-8 Final Drive Travel Device

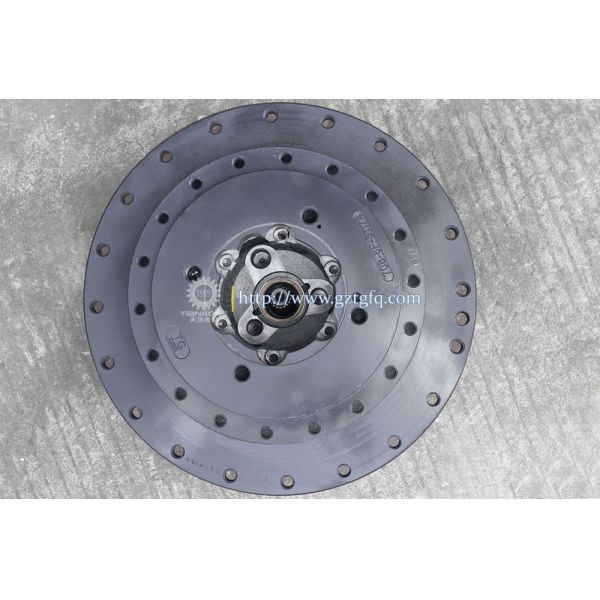

Product Photo:

Drawing:

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	20Y-27-00500	[2]	Final Drive Assembly Komatsu OEM	370 kg.
			["SN: 350001-350198"] analogs:["20Y2700501"] |$0.
	20Y-27-00110	[1]	Floating Seal Assembly Komatsu OEM	2.65 kg.
			["SN: 350001-350198"] |$1.
3.	20Y-27-41140	[1]	Hub Komatsu	113.8 kg.
			["SN: 350001-350198"]
4.	20Y-27-41260	[2]	Bearing Komatsu	4.5 kg.
			["SN: 350001-350198"]
5.	20Y-27-41190	[1]	Nut, Lock Komatsu	3 kg.
			["SN: 350001-350198"]
6.	20Y-27-41180	[1]	Lock Komatsu	0.04 kg.
			["SN: 350001-350198"]
7.	01010-81020	[2]	Bolt Komatsu	0.161 kg.
			["SN: 350001-350198"] analogs:["801014093", "0101051020", "801015108"]
8.	20Y-27-41150	[1]	Carrier Komatsu	16.1 kg.
			["SN: 350001-350198"]
9.	20Y-27-41130	[4]	Gear Komatsu	2.6 kg.
			["SN: 350001-350198"]
10.	20Y-27-41250	[4]	Bearing Komatsu	1.5 kg.
			["SN: 350001-350198"]
11.	20Y-27-41270	[8]	Washer, Thrust Komatsu	0.03 kg.
			["SN: 350001-350198"]
12.	20Y-27-41170	[4]	Pin Komatsu	2.1 kg.
			["SN: 350001-350198"]
13.	20Y-27-21290	[4]	Pin Komatsu OEM	0.03 kg.
			["SN: 350001-350198"]
14.	20Y-27-13310	[1]	Washer, Thrust Komatsu China	0.08 kg.
			["SN: 350001-350198"]
15.	20Y-27-41120	[1]	Gear Komatsu	1.45 kg.
			["SN: 350001-350198"]
16.	20Y-27-22240	[1]	Washer, Thrust Komatsu China	0.03 kg.
			["SN: 350001-350198"]
17.	20Y-27-31111	[1]	Carrier Komatsu	5.78 kg.
			["SN: 350001-350198"]
18.	20Y-27-22120	[3]	Gear Komatsu China	2.5 kg.
			["SN: 350001-350198"]
19.	20Y-27-22210	[3]	Bearing Komatsu China	0.12 kg.
			["SN: 350001-350198"] analogs:["20Y2721260"]
20.	20Y-27-21240	[6]	Washer, Thrust Komatsu China	0.02 kg.
			["SN: 350001-350198"]
21.	20Y-27-21220	[3]	Pin Komatsu China	0.411 kg.
			["SN: 350001-350198"]
22.	20Y-27-21280	[3]	Pin Komatsu China	0.01 kg.
			["SN: 350001-350198"]
23.	20Y-27-41110	[1]	Shaft Komatsu	1.4 kg.
			["SN: 350001-350198"]
24.	20Y-27-21310	[1]	Washer Komatsu China	0.17 kg.
			["SN: 350001-350198"]
25.	20Y-27-41160	[1]	Cover Komatsu	14.95 kg.
			["SN: 350001-350198"]
26.	04260-01587	[1]	Ball, Steel Komatsu	0.018 kg.
			["SN: 350001-350198"]
27.	01010-81240	[12]	Bolt Komatsu	0.052 kg.
			["SN: 350001-350198"] analogs:["801015573", "0101051240"]
28.	01643-31232	[12]	Washer Komatsu	0.027 kg.
			["SN: 350001-350198"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
29.	07049-01012	[2]	Plug Komatsu	0.001 kg.
			["SN: 350001-350198"]
30.	20Y-27-31190	[3]	Plug Komatsu	0.07 kg.
			["SN: 350001-350198"]
31.	07002-12434	[3]	O-ring Komatsu China	0.01 kg.
			["SN: 350001-350198"] analogs:["0700202434", "0700213434"]
32.	20Y-27-11582	[1]	Sprocket Komatsu China	36.2 kg.
			["SN: 350001-350198"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
33.	20Y-27-11561	[20]	Bolt Komatsu China	0.14 kg.
			["SN: 350001-350198"]
34	01010-61660	[36]	Bolt Komatsu	0.127 kg.
			["SN: 350001-350198"] analogs:["0101031660", "0101081660"]
35	01643-31645	[36]	Washer Komatsu	0.072 kg.
			["SN: 350001-350198"] analogs:["802170005", "0164301645"]
36	20Y-30-21191	[2]	Cover Komatsu	12.25 kg.
			["SN: 350001-350198"]
37	01010-81230	[8]	Bolt Komatsu	0.043 kg.
			["SN: 350001-350198"] analogs:["0101051230", "01010B1230"]
39	708-8F-00250	[-1]	Motor Assembly Komatsu	93 kg.
			["SN: UP"]
