ABS Certificated Stiff Boom Marine Crane HPU System 15T 20M

ABS Certificated Stiff Boom Marine crane HPU system 15T20M

Product description

OUCO 15T20M Stiff Boom Marine crane: within the range of 5T, it can support different lifting points such as 8M, 12M, 16M, 18M and 20M.
This crane adopts a stable HPU system: full hydraulic drive, which has the characteristics of stable operation, adjustable speed level, 360-degree rotation, compact structure, combination of electro-hydraulic control and manual control, and easy operation and use.
The crane and all its associated components are designed to meet the requirements of the major classification societies and, if required, provide you with ABS certification.

Main Features and advantages

The crane is installed with a rolled steel base, bolted or welded, and fixed to the deck of standard height. The safe working load determines the diameter of the base. Standard jib cranes come with a driver platform.
The cab is optional, and various parts of the cab also support customization, such as the console, control levers, etc.
Rigid boom marine cranes are designed as electro-hydraulically driven articulating boom cranes with an integrated electro-hydraulic power pack or a separate electro-hydraulic power pack, delivered as a complete unit, be installed on a vessel.
The crane is equipped with hydraulic power winches, hydraulically controlled luffing, slewing and support systems.

Technical Specification

General Arrangement

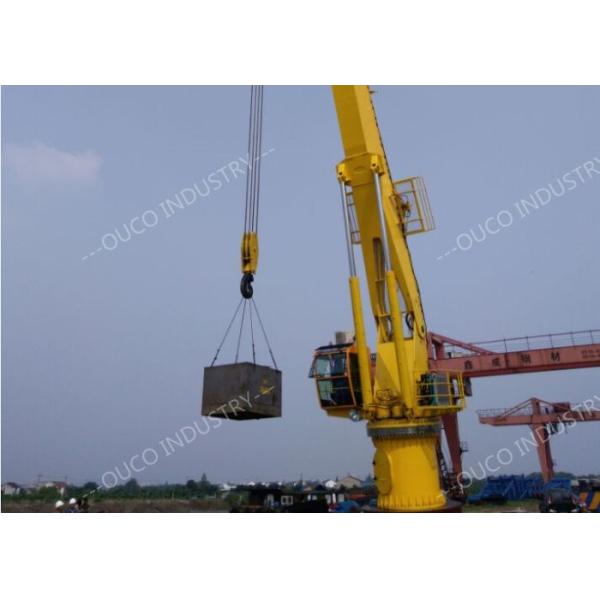

Product Picture

Packing&Shipping

For more details, please feel free to contact me us.
