| Categories | LPG Gas Tanker Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5067GYQ |
| Certification: | ASME,CCC,BV,SGS |
| Place of Origin: | SUIZHOU,CHINA |
| MOQ: | 1 Unit |
| Price: | negotiable |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units/month |
| Delivery Time: | 30 days after receiving deposit |
| Packaging Details: | naked,waxed,bulk ship,ro-ro |
| Truck Brand: | Sinotruk HOWO,Dongfeng,Foton,Shacman,Faw,JAC,JMC etc. |
| Engine: | Yuchai, Chaochai, Cummins,ISUZU |
| Tank Capacity: | 4tons, 8,000Liter, 4 metric tonne |
| Tank Volume: | 8000Liters,8cbm,8m3 |
| Flow meter: | Displacement Flow meter (printer optional) |
| Pump: | Hydraulic Pump with PTO Powered |
| Filling Head: | REGO Brand, USA brand |
| Discharging Valve: | 1", 2", 3"Flange Type |
| Filling Hose: | 15 meter |
| Warranty: | one year for major parts |
| Painting: | As per customer's request |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

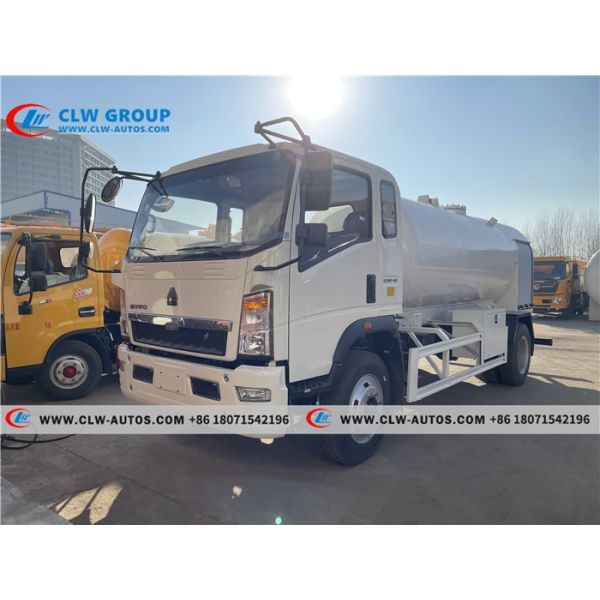

Sinotruk HOWO 4tons Propane Bobtail Truck LPG Dispenser Truck
Product Description
1. LPG bobtail truck design purpose: mobile filling truck to serve
in territories outside the urban cities which can help people
access LPG more.
2. Truck Brand for choose : Howo, Dongfeng, Faw, Isuzu, Foton, JAC,
JMC,Shacman etc.
3.Tank capacity: 3tons, 4tons, 5tons, 6tons, 7tons, 8ton, 10tons,
15tons, 20tons
4. Refiling System: Flowmeter or LPG dispenser,2" Corken or Chinese
brand LPG Pump,15meters Filling Hose Reel
Specification
1. Specification of 4tons LPG TANK | |||
| Item | Unit | Parameter | |
| Thickness of Shell | mm | 10.0 | |
| Thickness of Endplate | mm | 10.0 | |
| Corrosion Allowance | mm | 1.0 | |
| Fact cubic meters | cbm | 8cbm (8,000L) | |
| Loading capacity | kg | Approx.4750 kg | |
| Working temperature | ºC | -40/+55 oC | |
| Tank material | mm | Carbon Steel Q345R(Pressure Vessel Steel) | |
| Manhole | mm | DN450(18 inch) | |
| Safety Valve | mm | DN50(2 inch) | |
| Liquid Line | mm | DN50(2 inch) | |
| Gas Line | mm | DN50(2 inch) | |
| 2. Specification of Truck Chassis | |||
| Condition | New condition/Left hand drive/4x2 | ||
Main details | Brand and Model | HOWO | |
| Wheelbase(mm) | 3800 | ||
| Front/Rear overhang(mm) | 1205/2310 | ||
| Approach/Departure angle(°) | 18/12 | ||
| Max. driving speed(km/h) | 90 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 7.50R16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | It can accommodate three people, With Air conditioner | ||
| Engine | Brand and Model | Optional | |
| Fuel type | Diesel | ||
| Emission standard | Optional | ||

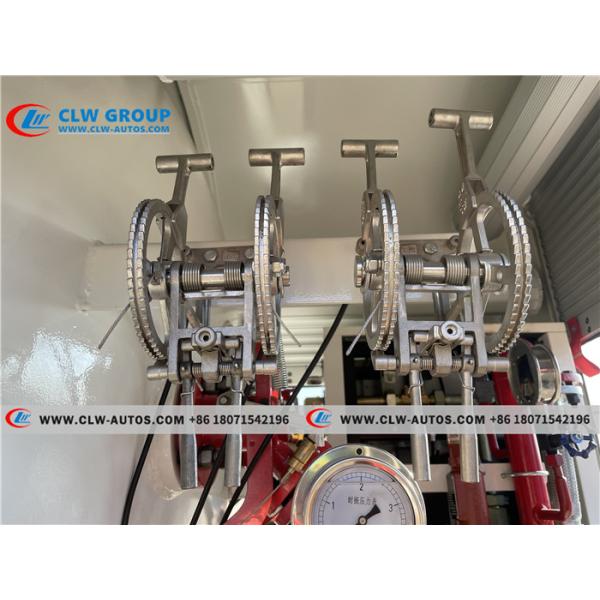

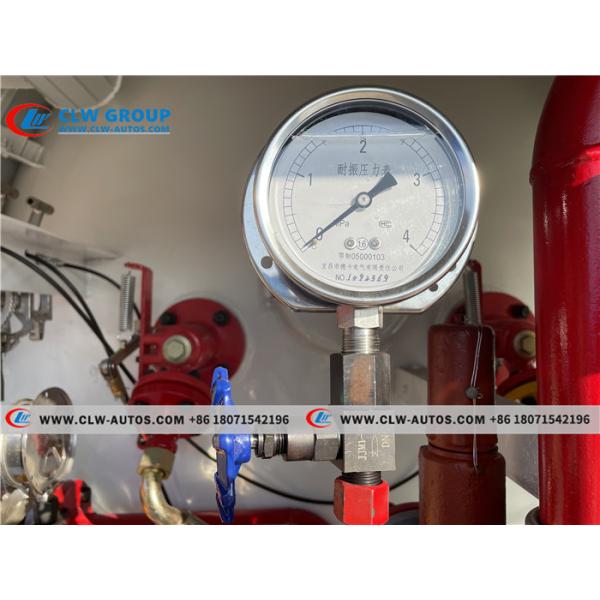

Detail photos
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground
storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM
to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG
bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM
LPG Skid Station/LPG mobile filling station etc. Please feel free
to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there
ASME standard for optional. Yes, we can do ASME standard and our
ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas
companies. We have supplied many storage tanks and semi trailer for
them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The
biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our
overseas marketing office in Wuhan. Wuhan is two hours' plane from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
|
