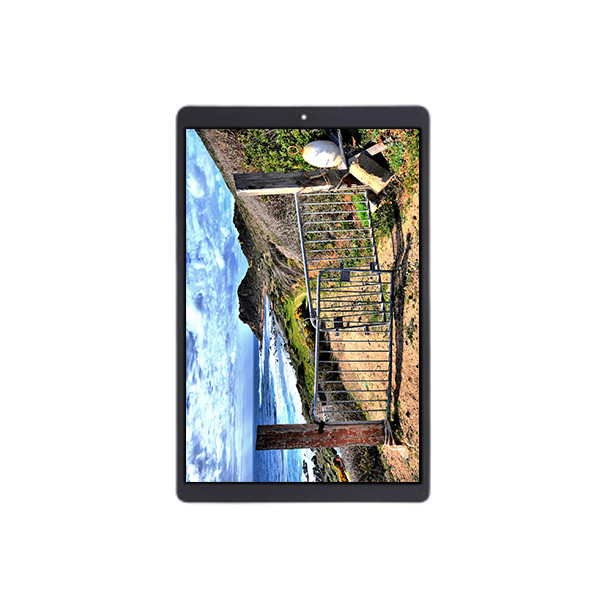

10.1 inch 1200*1920 TFT LCD Panel TV101WUM-LK0

10.1 inch 1200*1920 TFT LCD Panel TV101WUM-LK0

Product details :

Brand	BOE
Model P/N	TV101WUM-LK0
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1200(RGB)×1920, WUXGA 225PPI
Pixel Format	RGB Vertical Stripe
Active Area	135.36(W)×216.576(H) mm
Bezel Opening	-
Outline Size	163.76(W)×254.76(H)×4.75(D) mm
Brightness	360 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 99%sRGB
Frequency	60Hz
Weight	190g (Typ.)
Surface	Clear, Hard coating
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	-
Response Time	26 (Max.)(Tr+Td), 35 (Typ.)(G to G)
Lamp Type	9S4P WLED , 39K hours , Without Driver
Touch Screen	In-Cell Touch, I²C
Application	Pad & Tablet
Signal Interface	MIPI (4 data lanes), 45 pinsConnector
Input Voltage	1.8/5.8/-5.8V (Typ.)(IOVCC/VSP/VSN)
Environment	Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

1)All of our product will be testing before shipping. So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to make payment of TV101WUM-LK0 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of TV101WUM-LK0 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of TV101WUM-LK0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of TV101WUM-LK0 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Yongsheng Innovation Technology Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	LCD Touch Panel Display
Brand Name:	BOE
Model Number:	TV101WUM-LK0
Place of Origin:	China
MOQ:	1 pcs
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100000 Unit/Units per Month
Delivery Time:	7 Days
Packaging Details:	Original packaging/conventional packaging box
Model Name:	TV101WUM-LK0
Screen Size:	10.1"
Resolution:	1200(RGB)×1920, WUXGA 225PPI
Active Area:	135.36(W)×216.576(H) mm
Outline Size:	163.76(W)×254.76(H)×4.75(D) mm
Viewing Angle:	80/80/80/80 (Typ.)(CR≥10)
Brightness:	360 cd/m² (Typ.)
Contrast Ratio:	1000:1 (Typ.) (TM)
Frequency:	60Hz
Application:	Pad & Tablet
