Waterproof IP69K Tri Proof Light 120lm/W Full PC Housing Vapor Proof Batten Lighting

Waterproof IP69K Tri Proof Light 120lm/W Full PC Housing Vapor Proof Batten Lighting

Waterproof IP69K Tri Proof Light 120lm/W Full PC Housing Vapor Proof Batten Lighting
Waterproof IP69K Tri Proof Light 120lm/W Full PC Housing Vapor Proof Batten Lighting
Categories LED Moisture-proof Lamp
Brand Name: Dualrays
Model Number: DR-TP020- CG2XP
Certification: CE ROHS SAA
Place of Origin: China
MOQ: 5pcs
Price: Negotiation
Payment Terms: T/T, Western Union
Supply Ability: 50000 per month
Delivery Time: 5-8work days
Material: PC PMMA are optional
Brand: Dualrays
Input voltage(v): AC200-240V,50-60HZ
Lamp luminous efficiency(lm/w): 120 130 150 160
Cri (ra>): >80Ra
Warranty(years): 5 YEARS
Application: Supermarket, office, Factory, Parking lot, School
Beam angle: 120°
Contact Now
Company Info.
DUALRAYS LIGHTING Co.,LTD.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

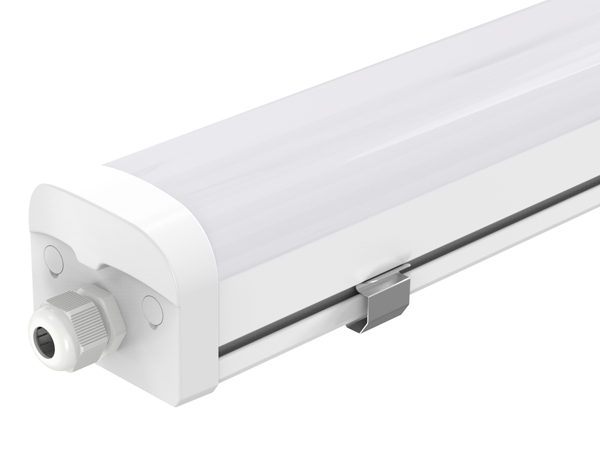

Waterproof IP69K Tri Proof Light 120lm/W Full PC Housing Vapor Proof Batten Lighting

Dualrays D3Triproof Industry Lighting 20w 30w 40w 50w 150lpw Triproof Light Led Fixture Used For Parking Lot Ce Rohs Saa

> BASELine Version: > PROLine Version: 120(Milky Cover)~130LPW(Transparent Cover) > PRIMELine Version: 150(Milky Cover)~160LPW(Transparent Cover)
>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C; > IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection; > 120°beam angle;

> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;

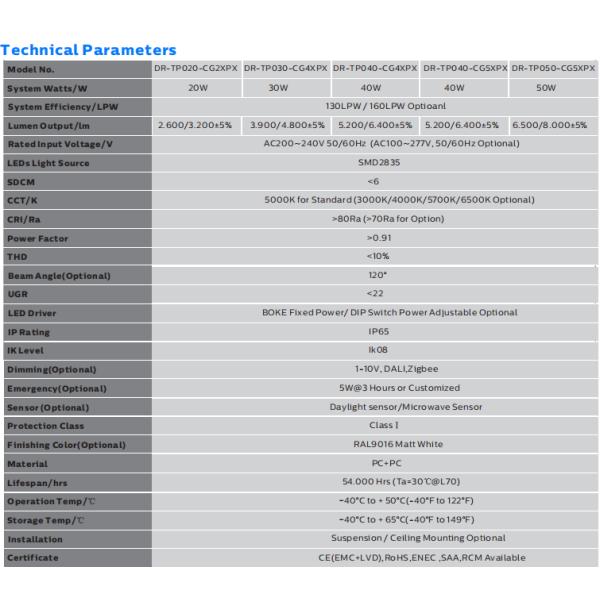

l No.DR-TP020-CG2XPXDR-TP030-CG4XPXDR-TP040-CG4XPXDR-TP040-CG5XPXDR-TP050-CG5XPX
System Watts/W20W30W40W40W50W
System Efficiency/LPW130LPW / 160LPW Optioanl
Lumen Output/lm2.600/3.200±5%3.900/4.800±5%5.200/6.400±5%5.200/6.400±5%6.500/8.000±5%
Rated Input Voltage/VAC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light SourceSMD2835
SDCM<6
CCT/K5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra>80Ra (>70Ra for Option)
Power Factor>0.91
THD<10%
Beam Angle(Optional)120°
UGR<22
LED DriverBOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP RatingIP65
IK LevelIK08
Dimming(Optional)1-10V, DALI,Zigbee
Sensor(Optional)Daylight sensor/Microwave Sensor
Emergency(Optional)5W@3 Hours or Customized
Protection ClassClassⅠ
Finishing Color(Optional)White RAL9016 Optional
MaterialPC+PC
Lifespan/hrs54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)Suspension / Ceiling Mounting Optional
CertificateCE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

character /length2ft4ft5ft
A602mm1202mm1502mm
B638mm1238mm

1538mm

C63mm63mm63mm
D73mm73mm73mm

2ft,4ft,5ft length for you.

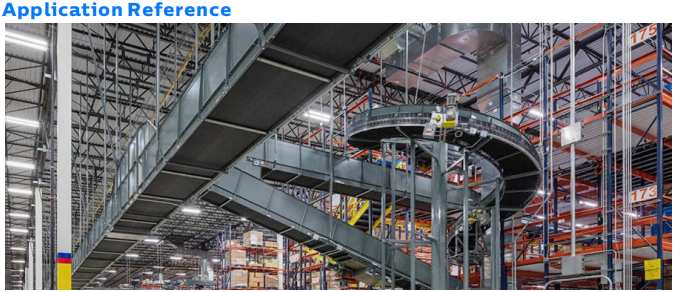

Application:

> Replacement for fluorescent NCF;
> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;

Advantage:

1.Eco version for your project. 2.Factory direct with fast delivery. 3.Quality control strickly.

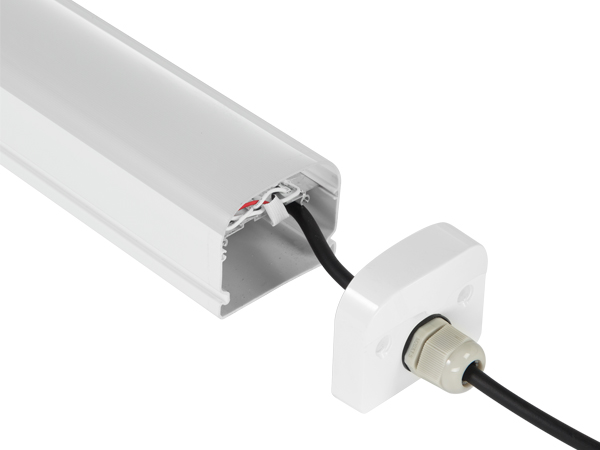

> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring; > Multiple Installations: Suspension, Wall Mounting; > Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor, > 304/316 Stainless Steel End Cap & Bracket,corrosion-proof; > No UV or IR and completely mercury free; > L70/B20 @ 54.000h; > Customized supported for special projects; > SAN'AN SMD2835 LEDs: LM80/TM-21 Available; > LM79/TM21/ISTMT/LCP and IES/LDT files available; (D3LED Triproof Light) > Europe Market:CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark; > North American Market: ETL/CETL,DLC Premium Pending; > Oceania Market: SAA,C-Tick,RCM



IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(Partnership)


Contact person :Cila Zhang
E-mail:Sales08@dualrays.com
Wechat/whatsapp/Skype:+86-15070843668
Tag:led triproof light,batten light,waterproof,vapor proof light,weatherproof,Led Tube tri-proof light,triproof linear light
